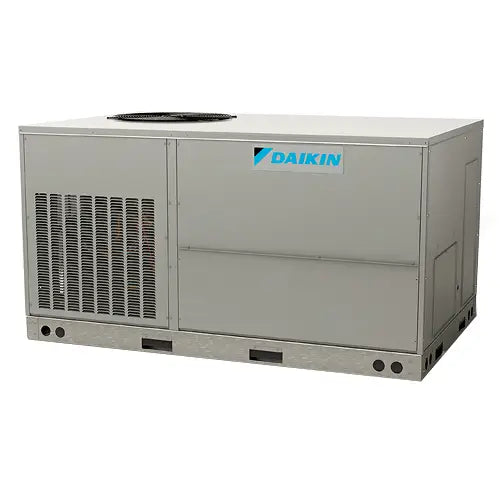

Daikin DFH1203D000001S Light Commercial Packaged Heat Pump 10 ton

Product Description

The Daikin DFH1203D000001S Light Commercial Packaged Heat Pump provides efficient cooling performance in a self-contained unit. Suitable for rooftop or ground-level installation, it features a galvanized steel cabinet with a powder-paint finish for corrosion resistance. This unit uses R-410A chlorine-free refrigerant and a high-efficiency scroll compressor.

• Features a high-efficiency scroll compressor and copper tube/aluminum fin coils on the evaporator.
• Includes high- and low-pressure switches and a built-in filter rack with standard 2" filters.
• AHRI Certified and ETL Listed, with a 24-volt terminal strip for easy connection.

Product Highlights

The Daikin DFH120 is a 10-ton light commercial packaged heat pump with convertible airflow and easy-to-service components.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DFH1203D000001S
• Country of Origin: USA

Technical Specifications

• Class: Light Commercial Packaged Heat Pump
• Family: DFH120
• Category: Light Commercial Packaged Heat Pump
• Keywords: DFH1203D000001S
• Unit Type: Outdoor
• Power Phase: 3 Ph
• Power Voltage: 208-230 V
• Power Frequency: 60 Hz
• Cabinet Features: Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance
• Product Benefits: Contactor with lugs High-capacity, steel-cased filter drier Convertible airflow orientation Easy to service Bottom utility entry
• Family Description: 10 Ton Light Commercial Packaged
• Product ID Bar Code: DFH1203D000001S
• Prop65 Label Required: TRUE
• MPN: DFH1203D000001S
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Heat Pump
• System Family: Light Commercial Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Market Type: Light Commercial
• Installation Type: Rooftop
• Communication Feature: No
• ISO Certified: Yes
• Item Stocking Unit of Measure (UOM): EA
• Pallet Qty: 1.0
• Country of Origin: USA
• US HTS Code: 8415.82.0120
• Canadian HTS Code: 8415.82.99.22
• Energy Source: Electric
• Produced in US: Yes
• Product ID: DFH1203D000001S
• Carton Type: CTN
• Case Qty: 1.0
• Release Status: Obsolete
• Series: DFH Series
• Cooling BTU Rating: 116000 Btu/hr
• Nominal Capacity: 10 ton
• Voltage Rating: 208/230 V
• Amperage Rating: 51.5 A
• Refrigerant Type: R-410A
• HP Rating: 3-1/2 hp
• Rotational Speed: 300 to 1600 rpm
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Compressor Type: Scroll
• CFM Rating: 3850 cfm
• EER Rating: 11
• Number of Stages: 1
• Drive Type: Direct
• Connection Type: NPT
• Fuse Rating: 60 A
• Fins per Inch: 16 FPI
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Connection Size: 3/4 in
• Filter Size: 20 x 25 x 2 in, 25 x 25 x 2 in
• IEER Rating: 14.1
• Operating Mode: Cooling Only
• Configuration: Multi-Positional
• Compressor Stages: Single Stage
• Maximum Air Flow (CFM): 4430
• Minimum Air Flow (CFM): 1969
• Maximum Sound Level (dB): 86.8
• Minimum Circuit Ampacity (A): 51.5
• Recommended Breaker Size (A): 60
• Product Height: 54.6"
• Product Width: 93.75"
• Product Depth: 59.6"
• Product Weight (lbs.): 1154
• Shipping Weight (lbs.): 1234
• ETL Listed: Yes
• AHRI Certified: Yes
