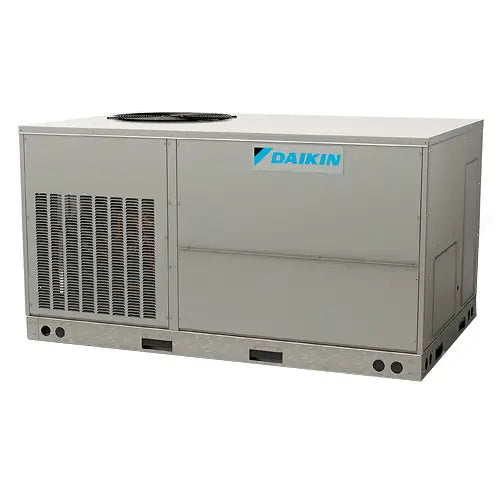

Daikin DFH0903D000001S Light Commercial Packaged Heat Pump 7.5 Ton

Product Description

The Daikin DFH0903D000001S light commercial packaged heat pump provides cooling performance in one unit. Suitable for rooftop or ground-level installation, it features convertible airflow for horizontal or downflow applications. The galvanized steel cabinet has a powder-paint finish for corrosion resistance. It uses R-410A refrigerant and has factory-installed pressure switches as standard.

• R-410A chlorine-free refrigerant
• High-efficiency scroll compressor
• Copper tube/aluminum fin coils on evaporator

Product Highlights

The Daikin DFH0903D000001S is AHRI Certified and ETL Listed. It features a high-capacity, steel-cased filter drier and a 24-volt terminal strip.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DFH0903D000001S
• Country of Origin: United States

Technical Specifications

• Class: Light Commercial Packaged Heat Pump
• Family: DFH090
• Category: Light Commercial Packaged Heat Pump
• Keywords: DFH0903D000001S
• Unit Type: Outdoor
• Power Phase: 3
• Power Voltage: 208-230
• Power Frequency: 60
• Cabinet Features: Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance
• Product Benefits: Contactor with lugs\nHigh-capacity, steel-cased filter drier\nConvertible airflow orientation\nEasy to service\nBottom utility entry
• Family Description: 7.5 Ton Light Commercial Packaged
• Product ID Bar Code: DFH0903D000001S
• Prop65 Label Required: TRUE
• Nominal Capacity: 7-1/2 ton
• Cooling BTU Rating: 86000 Btu/hr
• Voltage Rating: 208/230 V
• Amperage Rating: 43 A
• Refrigerant Type: R-410A
• HP Rating: 2.4 hp
• Rotational Speed: 300 to 1600 rpm
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Compressor Type: Scroll
• CFM Rating: 3000 cfm
• EER Rating: 11
• Number of Stages: 1
• Drive Type: Direct
• Connection Type: NPT
• Fuse Rating: 50 A
• Fins per Inch: 16 FPI
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Series: DFH Series
• Operating Mode: Cooling Only
• Configuration: Multi-Positional
• Compressor Stages: Single Stage
• EER2: 11
• Maximum Air Flow (CFM): 3370
• Minimum Air Flow (CFM): 1782
• Maximum Sound Level (dB): 86.8
• Minimum Circuit Ampacity (A): 43.0
• Recommended Breaker Size (A): 50
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Item Height: 54.625
• Item Width: 60.375
• MPN: DFH0903D000001S
• UPC: 663051680036
• Connection Size: 3/4 in
• Filter Size: 20 x 25 x 2 in, 25 x 25 x 2 in
