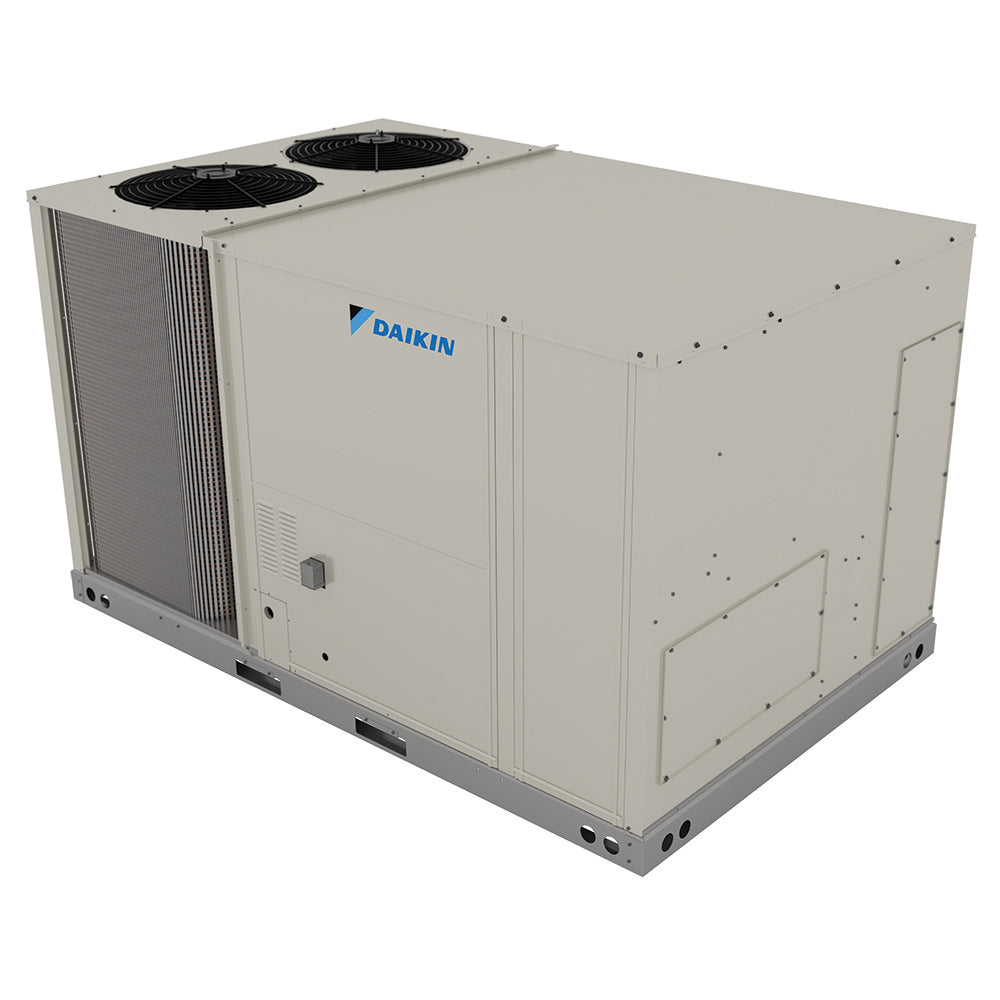

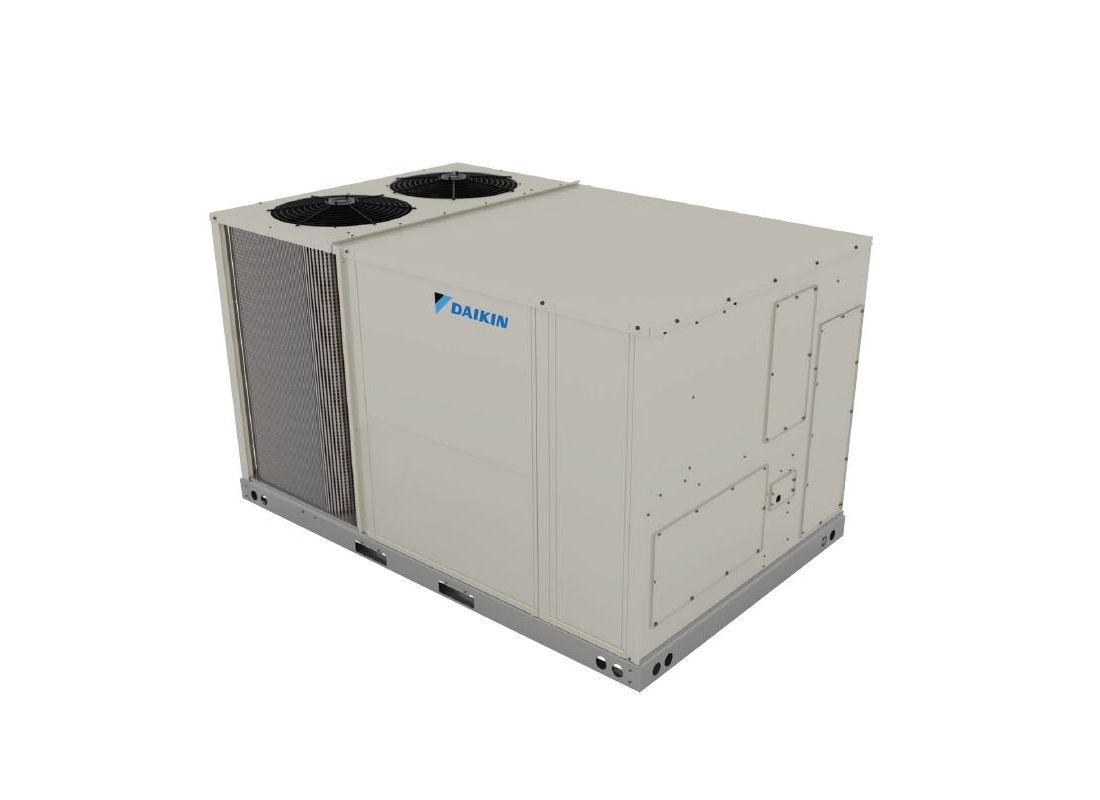

Daikin DFG0903DH00001S Light Commercial Packaged Gas/Electric 7.5 Ton

Product Description

The Daikin DFG0903DH00001S Light Commercial Packaged Gas/Electric unit is designed for outdoor installation. This 7.5-ton unit features easy, tool-less filter access and raised flanged edges for simple duct connections. It operates at 208-230 V, 60 Hz, and 3-Ph power. The unit is constructed with a galvanized steel cabinet and powder-paint finish.

• Easy accessibility using tool-less filter access
• 1" Raised flanged edges around the supply and return offer easy installation for the duct connections
• Suitable for rooftop or ground-level installation

Product Highlights

Daikin packaged rooftop units are built to perform, with features and options that help provide low installation and operation costs, superior indoor air quality, efficient operation and longevity.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DFG0903DH00001S
• Country of Origin: USA

Technical Specifications

• Class: Light Commercial Packaged Gas/Electric
• Family: DFG090
• Category: Light Commercial Packaged Gas/Electric
• Keywords: DFG0903DH00001S
• Unit Type: Outdoor
• Power Phase: 3 Ph
• Power Voltage: 208-230 V
• Power Frequency: 60 Hz
• Family Description: Light Commercial Packaged
• Product ID Bar Code: DFG0903DH00001S
• Prop65 Label Required: TRUE
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Gas/Electric
• System Family: Light Commercial Packaged System
• Function Category: Heating Only
• Product Type: Equipment
• Market Type: Light Commercial
• Product Family: DFG090
• Installation Type: Rooftop
• Communication Feature: No
• ISO Certified: Yes
• Product ID: DFG0903DH00001S
• Series: DFG Series
• Tonnage: 7-1/2 ton
• Voltage Rating: 208/230 V
• Amperage Rating: 41.6 A
• Refrigerant Type: R-410A
• Mounting Type: Roof Curb
• HP Rating: 2.4 hp
• Rotational Speed: 1600 rpm
• Frequency Rating: 60 Hz
• Phase: 3 ph
• Compressor Type: Scroll
• CFM Rating: 3020 cfm
• EER Rating: 11.2
• Number of Stages: 1
• Drive Type: Direct
• Coil Rating: 13.4 sq-ft
• Fuse Rating: 50 A
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Additional Information: 1120 rpm Speed, 23 FPI, 1-Row, 29.1 sq-ft Face Area Condenser Fan, 86000 Btu/hr Cooling Capacity
• Heating Capacity: 225,000 BTU/hr
• Fuel Type: Gas / Electric
• Manufacturer: Daikin
• Manufacturer #: DFG0903DH00001S
• Nominal Cooling Capacity: 7.5 ton
• Cooling Btu: 86,000
• Heating Btu: 240,000
• Cooling Stage(s): 2
• Compressor Stage: Single
• Electrical Phase(s): 3-Phase
• Maximum CFM: 3,020
• Height (Inches): 54 5/8
• Length (Inches): 93 3/4
• Width (Inches): 60 3/8
• Type: Commercial Package Gas & Electric Units
• Operating Mode: Heating and Cooling
• Configuration: Multi-Positional
• Compressor Stages: Single Stage
• Capacity (Tons): 7.5
• Cooling Capacity (BTU/h): 86000
• Heating Capacity (BTU/h): 225000
• Furnace Efficiency (AFUE): 81%
• EER2: 11.2
• Maximum Air Flow (CFM): 3020
• Maximum Sound Level (dB): 82.6
• Voltage (VAC): 208/230
• Frequency (Hz): 60
• Minimum Circuit Ampacity (A): 41.6
• Product Height: 54.6"
• Product Width: 93.75"
• Product Depth: 60.4"
• ETL Listed: Yes
• AHRI Certified: Yes
