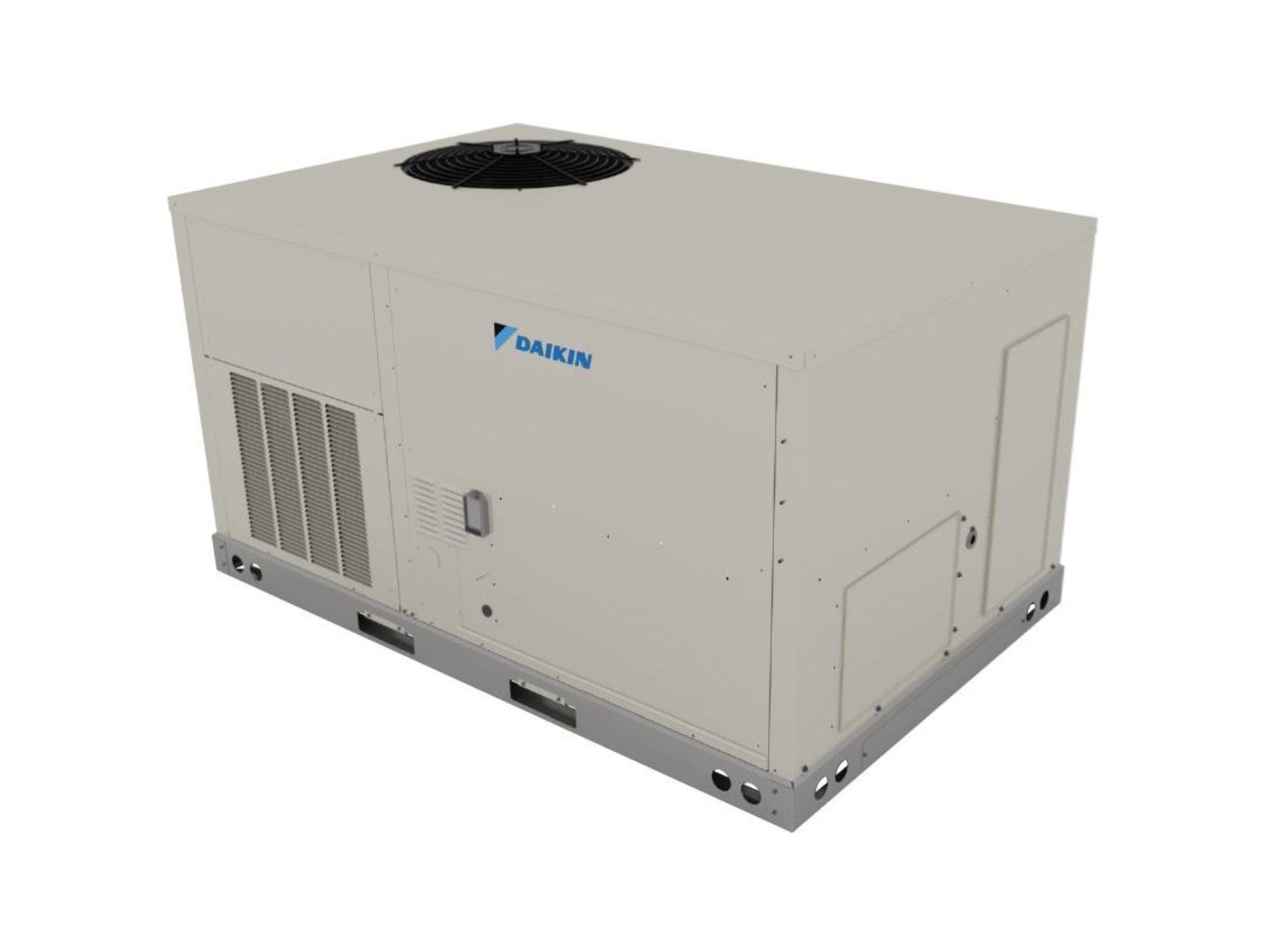

Daikin DFG0723DM00001S Light Commercial Packaged Gas/Electric 6 Ton

Product Description

The DAIKIN DFG0723DM00001S light commercial packaged gas/electric unit features a two-stage compressor and multi-speed ECM. Designed for rooftop or ground-level installation with convertible airflow. Constructed with high-quality galvanized steel and a powder-paint finish for corrosion resistance. The unit uses R-410A refrigerant and meets ASHRAE Standard 90.1-2013 performance.

• Features a high-efficiency scroll compressor.
• Equipped with copper tube/aluminum fin coils on the evaporator.
• Includes a built-in filter rack with standard 2" filters.

Product Highlights

6 Ton, two-stage compressor, multi-speed ECM, R-410A refrigerant, galvanized steel cabinet.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DFG0723DM00001S
• Country of Origin: USA

Technical Specifications

• Class: Light Commercial Packaged Gas/Electric
• Family: DFG072
• Tonnage: 6 tons
• Category: Light Commercial Packaged Gas/Electric
• Unit Type: Outdoor
• Unit Depth: 74 in
• Unit Width: 48.3125 in
• Power Phase: 3 Ph
• Refrigerant Type: R-410A
• Unit Height: 43.5 in
• Max Voltage: 253 V
• Min. Circuit Amps: 29.0/29.0 A
• Min Voltage: 197 V
• Power Voltage: 208/230 V
• Compressor Type: Scroll
• Power Frequency: 60 Hz
• Cabinet Features: Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance
• Motor Speed Type: Multi Speed ECM
• Compressor Stages: Two Stage
• Cooling Capacity Rated: 69500 Btu/H
• Heating Capacity Rated: 115000 Btu/H
• High-Fire Input Capacity: 115 Btu
• Airflow Rate High Cooling: 2100 ft³/min
• EER (HSVTC): 11.2
• Installation Type: Rooftop
• Communication Feature: No
• ISO Certified: Yes
• Temperature Rise Range High Fire: 25-55 °F
• Temperature Rise Range Low Fire: 20-50 °F
• Max Overcurrent Protection: 45/45 A
• Condenser Coil Metal Type: Aluminum
• Condenser Coil Rows: 1.0
• Condenser Fin Density - (Fins Per Inch): 23.0
• Dimensions - (Blower Diameter): 12 in
• Dimensions - (Blower Width): 11 in
• Dimensions - (Evap Wheel Diameter): 12 in
• Dimensions - (Evap Wheel Width): 11 in
• Energy Source: Gas
• Evap Coil Metal Type: Copper
• Evap Coil Rows: 3.0
• Evap Fin Density - (Fins Per Inch): 16.0
• Expansion Device: TXV
• Number of Speeds: 5
• Condensate Drain Outlet: 3/4 in
• Pipe Size Gas: 7/8 in
• Pipe Size Liquid: 3/8 in
• Proposition 65 Label: Yes
• Series: DFG Series
• Voltage Rating: 208/230 V
• Amperage Rating: 29 A
• HP Rating: 1.2 hp
• Rotational Speed: 1500 rpm
• Frequency Rating: 60 Hz
• CFM Rating: 2100 cfm
• Number of Stages: 2
• Drive Type: Direct
• Coil Rating: 9.16 sq-ft
• Fuse Rating: 45 A
• Material: Steel
• Finish: Galvanized/Powder-Painted
• Additional Information: 1122 rpm Speed, 23 FPI, 1-Row, 17.2 sq-ft Face Area Condenser Fan, 69000 Btu/hr Cooling Capacity
• Afue: 81%
• Electrical Phase(s): 3-Phase
• Amp(s): 45
• Maximum CFM: 4,200
• Cooling Btu: 69,000
• Cooling Stage(s): 2
• Compressor Stage: Two
• Operating Mode: Heating and Cooling
• Configuration: Multi-Positional
• Capacity (Tons): 6
• Cooling Capacity (BTU/h): 72000
• Furnace Efficiency (AFUE): 80%
• EER2: 11.2
• Maximum Air Flow (CFM): 2100
• Maximum Sound Level (dB): 82
• Minimum Circuit Ampacity (A): 29
• ETL Listed: Yes
• AHRI Certified: Yes
