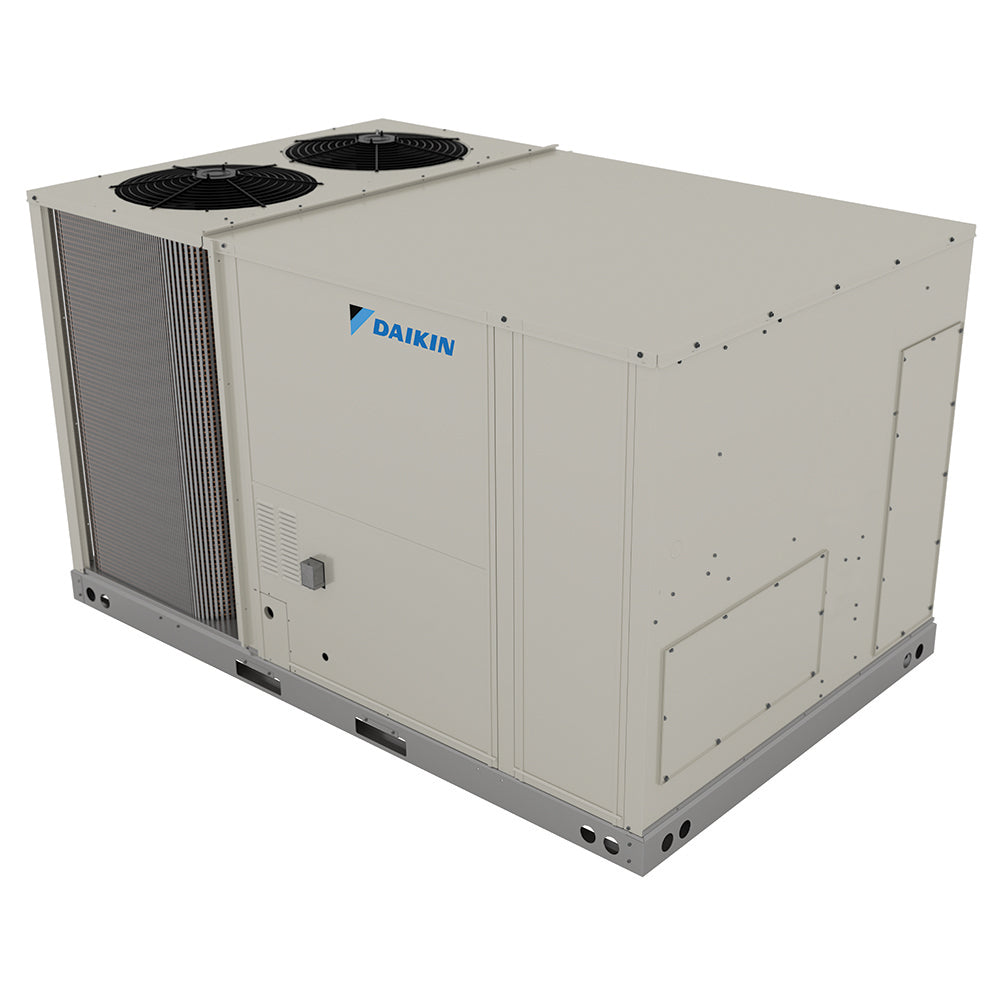

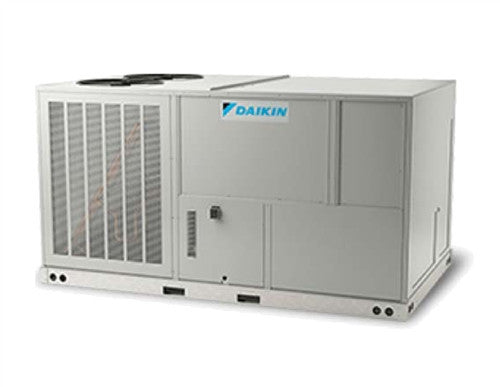

Daikin DFC1503D000001S Light Commercial Packaged Air Conditioner 12.5 Ton

Product Description

The DAIKIN DFC1503D000001S light commercial packaged air conditioner provides energy-efficient cooling performance in one self-contained unit. Suitable for ground-level or rooftop installations and horizontal or downflow applications. Features a high-efficiency scroll compressor and copper tube/aluminum fin coils on the evaporator. The unit is made with high-quality galvanized steel with a powder-paint finish for higher corrosion resistance.

• R-410A chlorine-free refrigerant
• High-efficiency scroll compressor
• Copper tube/aluminum fin coils on evaporator
• Microchannel heat exchanger on condenser coils
• High- and low-pressure switches

Product Highlights

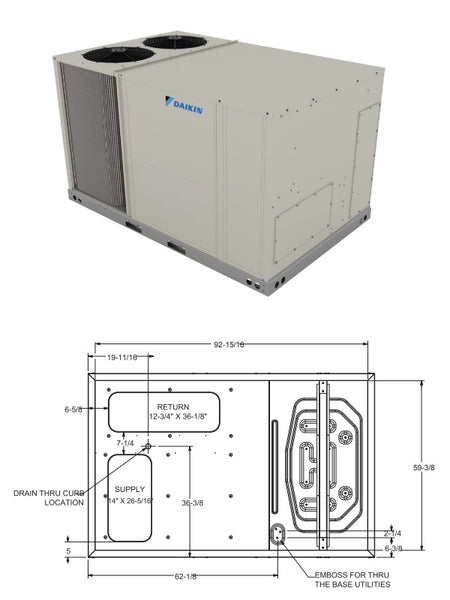

This Daikin packaged rooftop unit offers easy servicing, bottom utility entry.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DFC1503D000001S
• Country of Origin: USA

Technical Specifications

• Class: Light Commercial Packaged Air Conditioner
• Family: DFC150
• Category: Light Commercial Packaged Air Conditioner
• Keywords: DFC1503D000001S
• Unit Type: Outdoor
• Power Phase: 3 Ph
• Power Voltage: 208-230 V
• Power Frequency: 60 Hz
• Cabinet Features: Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance.
• Family Description: 12.5 Ton Light Commercial Packaged
• Product ID Bar Code: DFC1503D000001S
• Prop65 Label Required: TRUE
• Brand: Daikin
• MPN: DFC1503D000001S
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Air Conditioner
• System Family: Light Commercial Packaged System
• Function Category: Cooling Only
• Product Type: Package AC
• Market Type: Light Commercial
• Product Family: DFC150
• Installation Type: Rooftop
• Communication Feature: No
• ISO Certified: Yes
• US HTS Code: 8415.82.0120
• Canadian HTS Code: 8415.82.99.22
• Produced in US: Yes
• Refrigerant Charge: Pre-charged
• AHRI Certificate Number: 210240237
• Cooling BTU: 140,000 BTU
• Drive Type: Direct
• Maximum CFM: 4200
• Decibel Level (dBA): 86.8 decibels
• Horsepower: 0.5 HP
• Configuration: Downflow, Horizontal
• Refrigerant: R410A
• EER: 11
• IEER: 14.4
• Condenser Stages: Single Stage
• Compressor Type: Scroll
• Phase: Three Phase
• Max Breaker Size: 70/70 Amps
• Min. Breaker Size: 59.1/59.1 Amps
• Tonnage: 12.5 Ton
• Type: Package Electric Unit
• Operating Mode: Cool Only with Electric Heat
• Refrigerant Type: R-410A
• Compressor Stages: Single Stage
• Cooling Capacity (BTU/h): 140000
• IEER2: 14.4
• EER2: 11
• Maximum Air Flow (CFM): 4,200
• Maximum Sound Level (dB): 83
• Voltage (VAC): 208/230
• Frequency (Hz): 60
• Minimum Circuit Ampacity (A): 59.1
• Maximum Circuit Ampacity (A): 70
• ETL Listed: Yes
• AHRI Certified: Yes
• Model: DFC1503D000001S
• UPC: 663051676862
• Air Flow Direction: Downflow, Horizontal
• Avg Coverage Area: 3,000+ Sq Ft
• Blower Motor: Multi Speed
• Compressor: Single Stage
• Cooling Capacity: 6+ Ton
• Electrical Phase: 3-Phase
• Heat Strip Compatibility: Up to 45 kW
• Max Overcurrent Protection: 70 amps
• Region Compatibility: Nationwide
• Manufacturer: Daikin
• Voltage: 208-230V 3PH
