Product Description

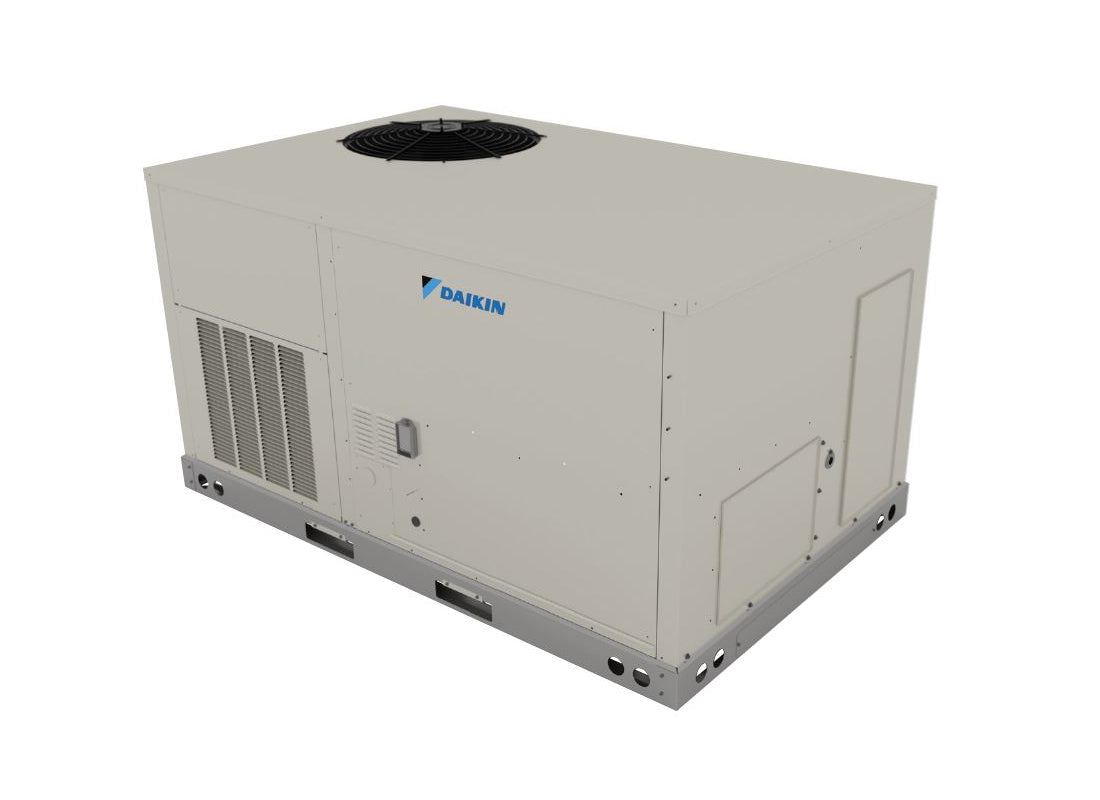

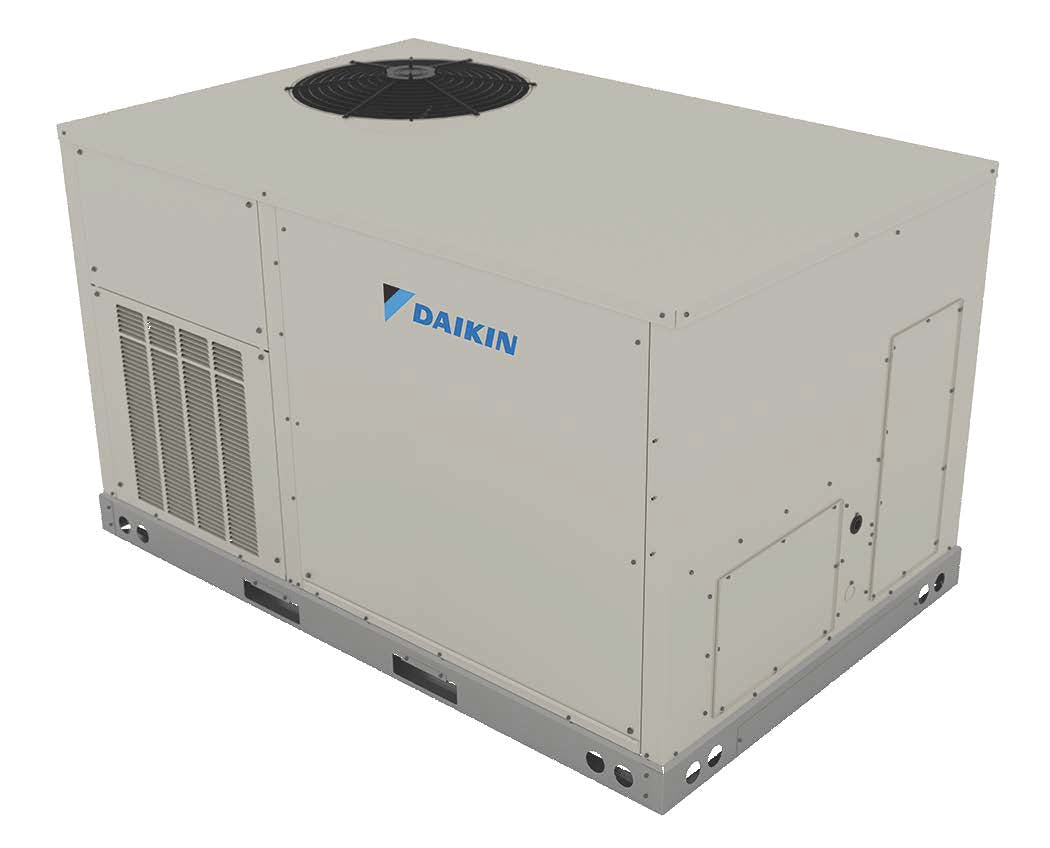

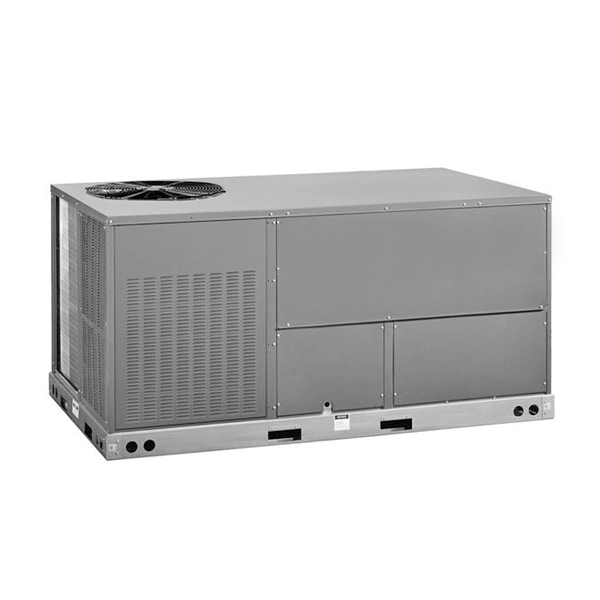

The DAIKIN DFC0363D000001S is a light commercial packaged air conditioner, single stage, multi speed ECM, 3 ton unit suitable for ground-level or rooftop installations and horizontal or downflow applications. Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance.
- R-410A chlorine-free refrigerant
- High-efficiency scroll compressor
- Copper tube/aluminum fin coils on evaporator
Product Highlights
This Daikin air conditioner provides energy-efficient cooling performance in one self-contained unit. Features a high-efficiency scroll compressor and convertible airflow orientation.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DFC0363D000001S
-
Country of Origin: USA
Technical Specifications
-
Class: Light Commercial Packaged Air Conditioner
-
Family: DFC036
-
Tonnage: 3 tons
-
Category: Cooling
-
Keywords: DFC0363D000001S
-
Unit Type: Outdoor
-

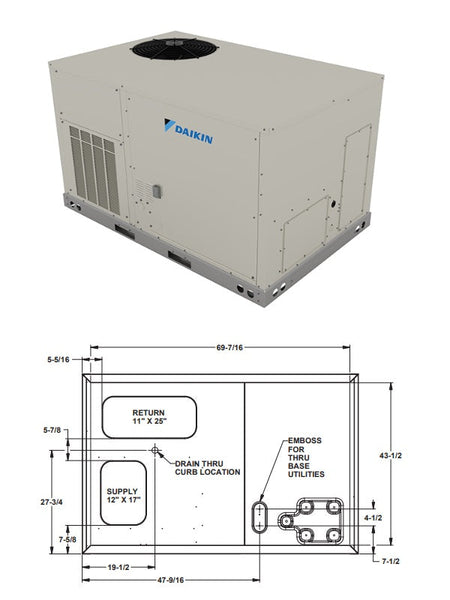

Unit Depth: 74 in
-
Unit Width: 48.3125 in
-
Power Phase: 3
-
Refrigerant: R-410A
-
Unit Height: 39.875 in
-
Unit Weight: 552 lb
-
Max. Voltage: 253
-
Min. Circuit: 19.7/19.7
-
Min. Voltage: 197
-
Power Voltage: 208/230 V
-
Compressor Type: Scroll
-
Power Frequency: 60 Hz
-
Cabinet Features: Daikin packaged rooftop units are made with high quality galvanized steel with a powder-paint finish to provide higher corrosion resistance
-
Motor Speed Type: Multi Speed ECM
-
Compressor Stages: Single Stage
-
Family Description: 3 Ton Light Commercial Packaged
-
Product ID Bar Code: DFC0363D000001S
-
Prop65 Label Required: TRUE
-
Cooling Capacity Rated: 35000 Btu/H
-
Airflow Rate High Cooling: 1160 ft³/min
-
Product Category: Light Commercial
-
Product Class - (PIM): Light Commercial Packaged Air Conditioner
-
System Family: Light Commercial Packaged System
-
Function Category: Cooling Only
-
Product Type: Equipment
-
Market Type: Light Commercial
-
Product Family: DFC036
-
Installation Type: Rooftop
-
Communication Feature: No
-
ISO Certified: Yes
-
Country of Origin: USA
-
EER (HSVTC): 11.0
-
Air Flow Rate (High) - Cooling: 1160 ft³/min
-
Condenser Coil Metal Type: Aluminum
-
Condenser Coil Rows: 1.0
-
Condenser Fin Density - (Fins Per Inch): 23.0
-
Dimensions - (Blower Diameter): 12 in
-
Dimensions - (Blower Width): 11 in
-
Dimensions - (Evap Wheel Diameter): 12 in
-
Dimensions - (Evap Wheel Width): 11 in
-
Energy Source: Electric
-
Evap Coil Metal Type: Copper
-
Evap Coil Rows: 2.0
-
Evap Fin Density - (Fins Per Inch): 16.0
-
Expansion Device: TXV
-
Number of Speeds: 5
-
Cooling Capacity - (Rated): 35000 Btu/H
-
Tonnage Range: 3.0
-
Condensate Drain Outlet: 3/4 in
-
Factory Std. Refrigerant Charge: 63 oz
-
Pipe Size Gas: 7/8 in
-
Pipe Size Liquid: 3/8 in
-
Proposition 65 Label: Yes
-
EER: 13
-
SEER1 (Efficiency): 15
-
Depth: 48 in
-
Height: 38 in
-
Weight (in lbs): 530.000000
-
Decibel Level (dBA): 78 decibels
-
Replaces: DBC0363D000001S
-
Drive Type: Direct
-
Electrical: 208-230/3/60 V/phase/Hz
-
Cooling BTU: 36,000 BTU
-
Phase: Three Phase
-
Condenser Stages: Single Stage
-
Max Breaker Size: 25 amps
-
Min. Breaker Size: 16.5 amps
-
Refrigerant Charge: Pre-charged
-
SEER2: 14
-
Volts: 208/230
-
Width (Inches): 48 5/16
-
Model: DFC0363D000001S
-
Make: Daikin
-
Manufacturer: Daikin Industries, Ltd.
-
Model code: DFC0363D000001S
-
Capacity: 3 tons
-
Weight: 552 lbs
-
Amp(s): 40
-
Maximum CFM: 1,160
-
Cooling Stage(s): 1
-
Compressor Stage: Single
-
UPC #: 658515782210
-
Total Shipping Weight (lbs.): 560
-
Height (Inches): 39 7/8
-
Length (Inches): 74
