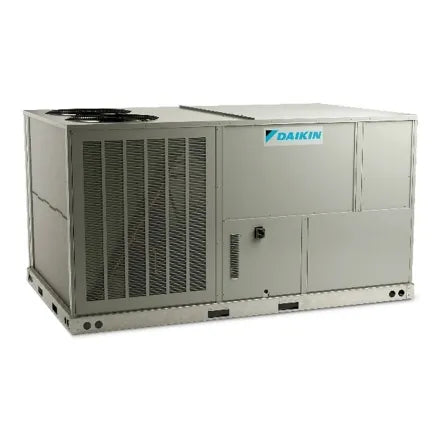

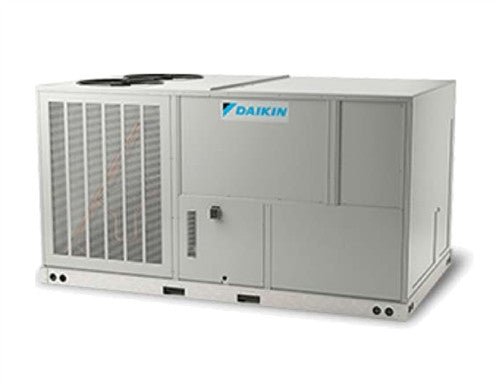

Daikin DCH150XXX3VXXX Light Commercial Packaged Heat Pump 12.5 Ton

Product Description

The Daikin DCH150XXX3VXXX light commercial packaged heat pump provides both cooling and heating. This outdoor unit features a high-efficiency scroll compressor and operates with R-410A chlorine-free refrigerant. Suitable for ground-level or rooftop installations, it supports horizontal or down-flow applications. The unit meets ASHRAE Standard 90.1-2010 table 6.8.1B performance standards.

• Features R-410A chlorine-free refrigerant
• Equipped with a high-efficiency scroll compressor
• Includes a built-in filter rack with standard 2" filters

Product Highlights

This Daikin heat pump offers energy-efficient performance and is designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DCH150XXX3VXXX
• Country of Origin: USA

Technical Specifications

• MPN: DCH150XXX3VXXX
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Light Commercial Packaged Heat Pump
• System Family: Light Commercial Packaged System
• Function Category: Heat Pump
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Light Commercial
• Product Family: DCH150
• Cooling Capacity - (Nominal): 140000 Btu/H
• COP17 Ducted: 2.1
• COP47 Ducted: 3.2
• EER Ducted: 10.6
• IEER Ducted: 11.8
• Power Voltage: 208-230 V
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Min. Circuit Amps: 63.5 A
• Air Flow Rate (High) - Cooling: 8200 ft³/min
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Refrigerant Type: R-410A
• Heating Capacity - (Rated): 142000 Btu/H
• Cooling Capacity - (Sensible): 98000 Btu/H
• Sound Pressure (Super High) - Cooling: 83 dBA
• AHRI Number: 6885866
• Air Flow Direction: Downflow, Horizontal, Upflow
• Avg Coverage Area: 3,000+ Sq Ft
• Blower Motor: Multi Speed
• EER: 10.6
• Electrical Phase: 3-Phase
• Heat Pump Efficiency (HSPF ): 3.2
• Max Overcurrent Protection: 80 amps
• Primary Heating Capacity: 145,001+ BTU
• Voltage: 240
• Region Compatibility: Nationwide
• Tonnage: 12.5
• Operating Mode: Heat Pump
