Product Description

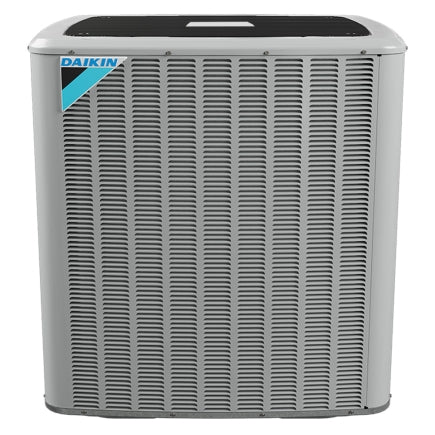

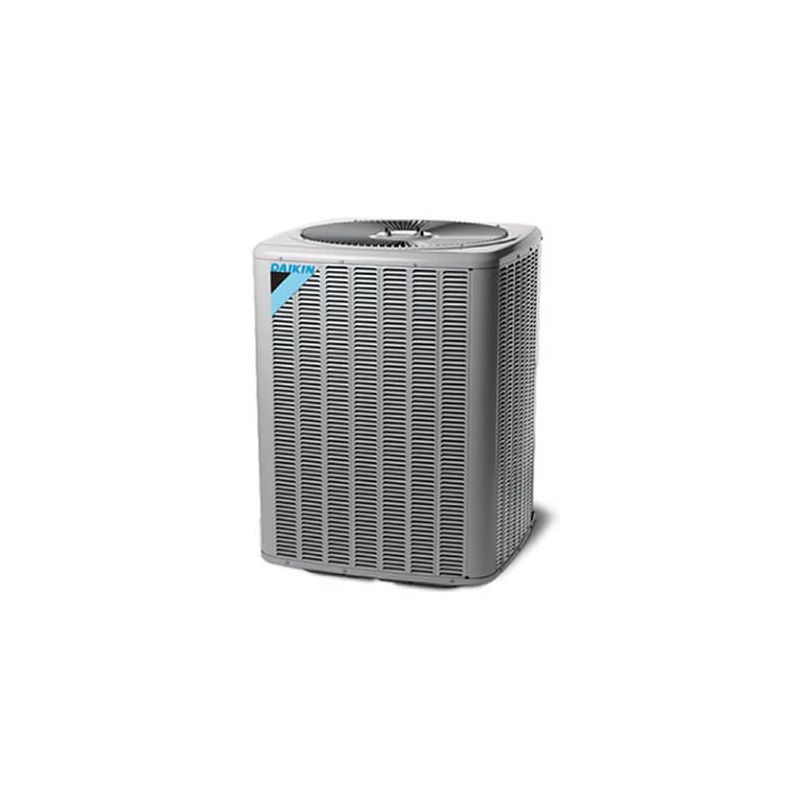

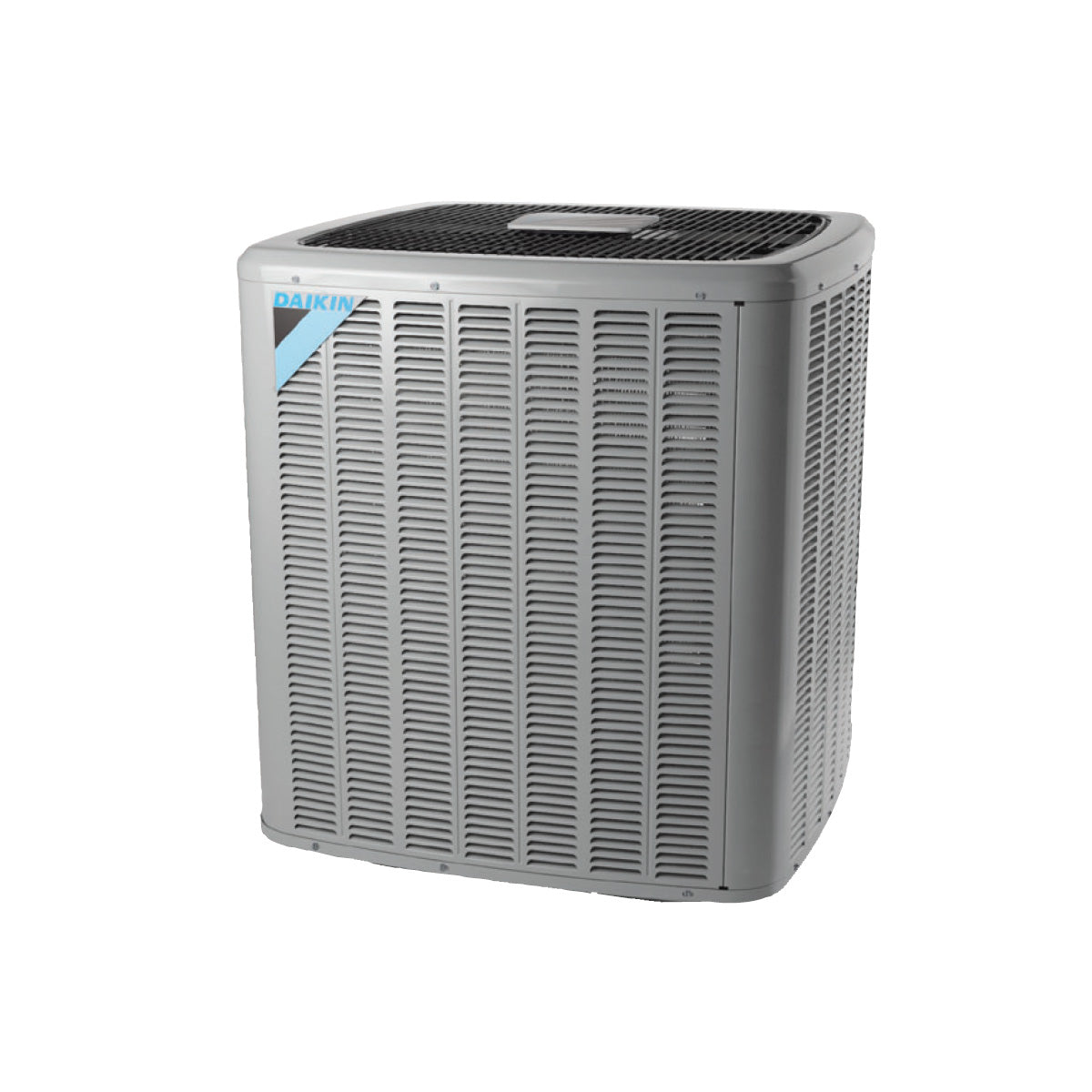

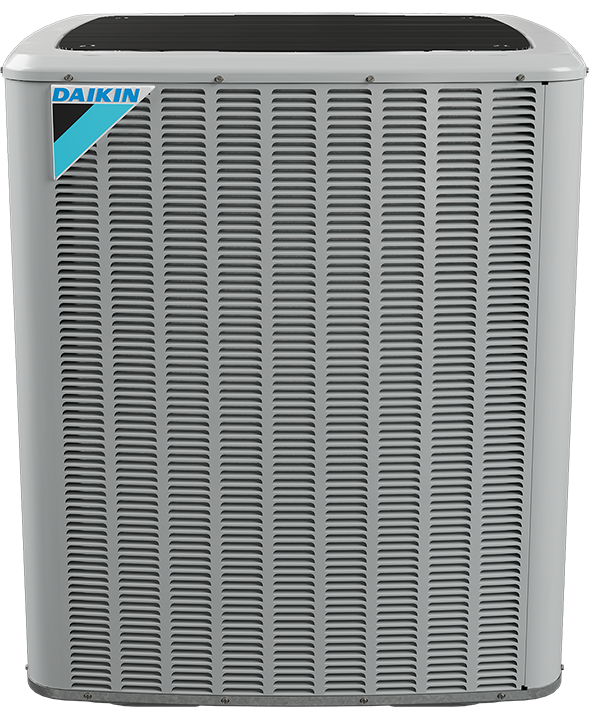

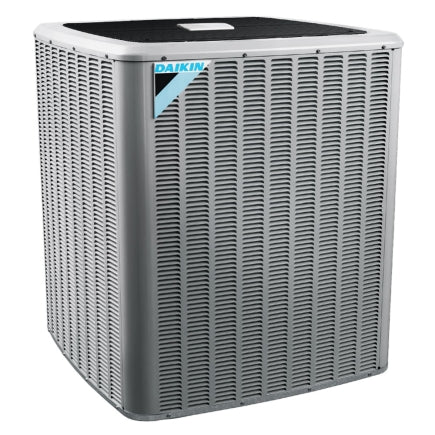

The Daikin DC6TE12030 Split Air Conditioner is a two-stage, 10-ton unit with a 16.4 IEER A/C R32 rating. Features include a two-stage tandem compressor design and a quiet operating top discharge. The unit has a high-efficiency copper tube/aluminum fin coil and brass liquid and suction service valves.
- Two-Stage tandem compressor design
- Quiet operating top discharge
- High-efficiency copper tube / aluminum fin coil
Product Highlights
This Daikin split system air conditioner is designed for efficient cooling in residential and light commercial applications. It is AHRI Certified and ETL Listed.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DC6TE12030
Technical Specifications
-
Brand: Daikin
-
MPN: DC6TE12030
-
Product Category: Light Commercial
-
Product Class - (PIM): Split Air Conditioner
-
System Family: Light Commercial Split System
-
Function Category: Cooling Only
-
Product Type: Equipment
-
Unit Type: Outdoor
-
Market Type: Residential-Single Family
-
Product Family: DC6TE_3
-
Series Name: DC6TE
-
Cooling Capacity - (Nominal): 118000 Btu/H
-
EER (HSVTC): 11.4
-
EER Ducted: 11.4
-
ENERGY STAR® Certified: No
-
IEER: 16.4
-
Compressor Stages: Two Stage
-
Compressor Type: Scroll
-
Expansion Device: TXV
-
Refrigerant Type: R-32
-
Power Voltage: 208/230 V
-
Power Phase: 3 Ph
-
Power Frequency: 60 Hz
-
Max Overcurrent Protection: 60 A
-
Min. Circuit Amps: 45.9 A
-
Rated Load Amps: 17.3 A
-
Cooling Operation Range - (Std. Max): 125 °F
-
Cooling Operation Range - (Std. Min): 55 °F
-
Rated Cooling Condition - (Ambient DB): 95 °F
-
Rated Cooling Condition - (Ambient WB): 75 °F
-
Rated Cooling Condition - (Room DB): 80 °F
-
Rated Cooling Condition - (Room WB): 67 °F
-
Tonnage: 10.0 Ton
-
Valve Size Liquid (O.D.): 5/8 in
-
Valve Size Suction (O.D.): 1-1/8 in
-
Factory Std. Refrigerant Charge: 110 oz
-
Refrigerant Pre-Charged Line Length: 15 ft
-
Standard Line Set Length - (Max): 150 ft
-
Standard Line Set Length - (Vertical): 25 ft
-
Vertical Length - (OD Above ID): 25 ft
-
Decibel Level (dBA): 84 Decibels
-
Replaces: DX14XA1203
-
Liquid Valve Size: 5/8"
-
Suction Valve Size: 1 1/8"
-
Capacity: 7.5 to 10 Tons
-
Voltage: 240
-
Electrical Phase: 3-Phase
-
Line Set Connection Type: Sweat
-
Avg Coverage Area: 3,000+ Sq Ft
-
AHRI Number: 215885514
-
Model: DC6TE12030
-
Amp(s): 60
-
Cooling Btu: 118,000
-
Electrical Conduit Size: 1/2 in, 3/4 in
-
Full Load Amperage: 7 A
-
Locked Rotor Amperage: 155 A
-
Rated Load Amperage[Compressor]: 17.3 A
-
Locked Rotor Amps: 155 A
-
Maximum Overcurrent Amps: 60 A
-
Maximum Overcurrent Protection: 60 A
-
Stages of Cooling: 2
-
Standards: ASHRAE 90.1, AHRI Certified, ETL Listed
-
Refrigerant: R-32
