Product Description

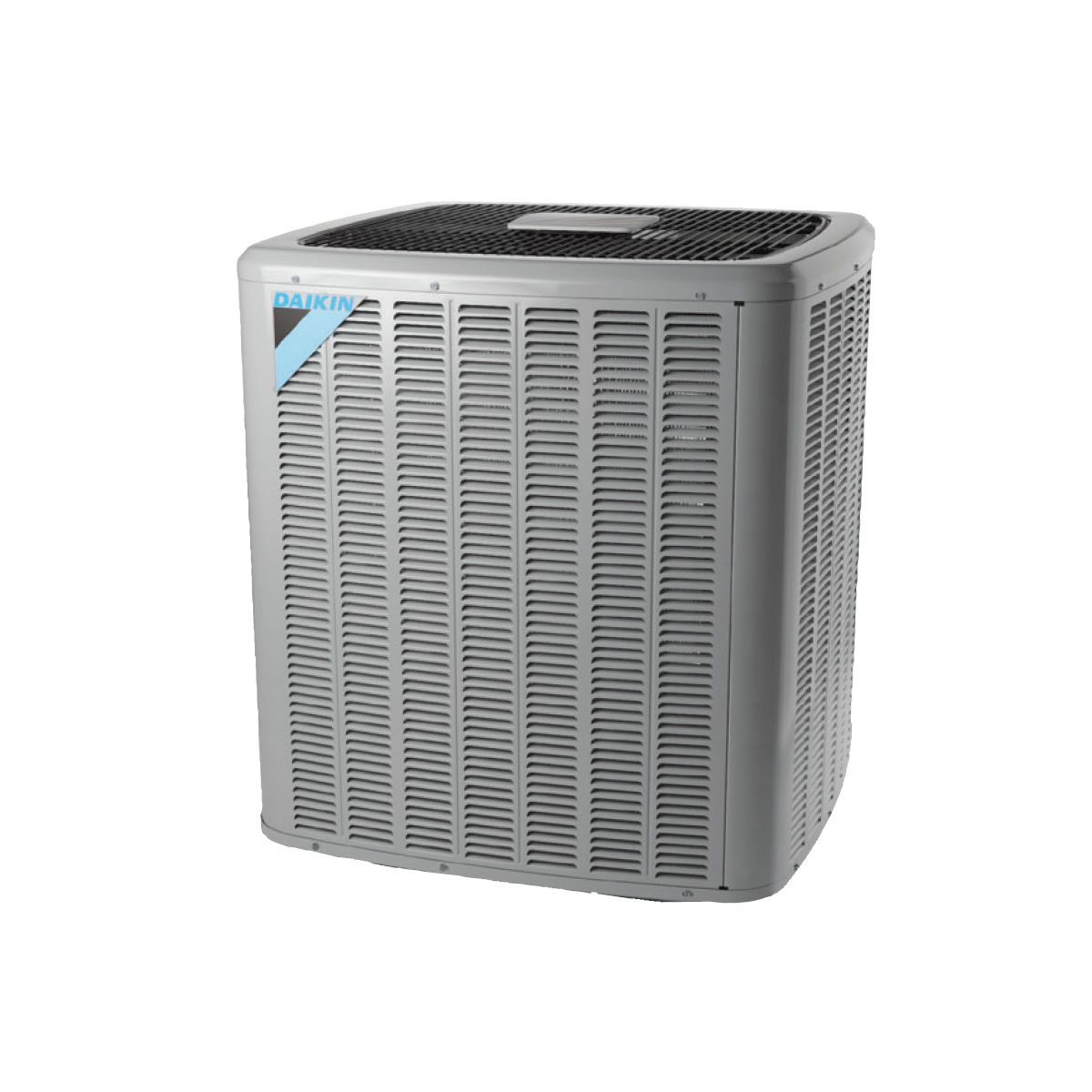

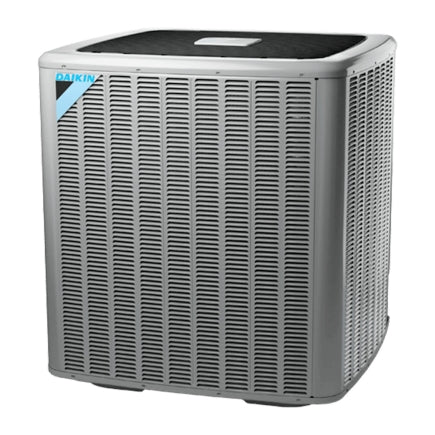

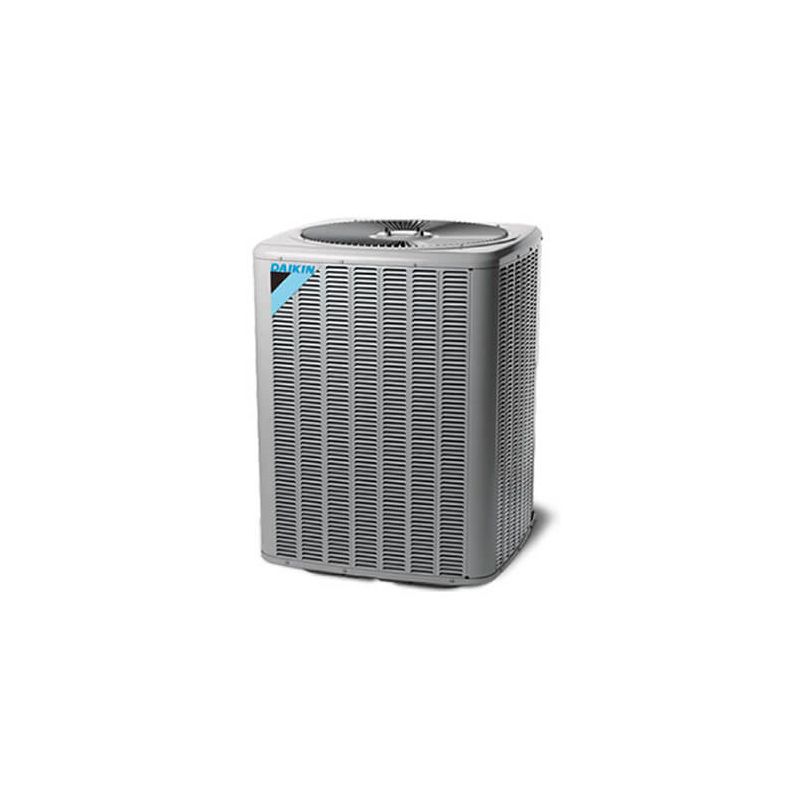

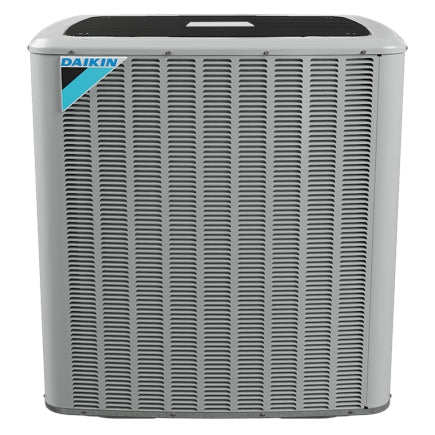

The Daikin DC6TE09030 Split Air Conditioner is a two-stage, 7.5-ton unit designed for energy-efficient cooling performance. Suitable for ground-level or rooftop installations, this air conditioner features an innovative louvered sound control top. Ideal for commercial spaces, it pairs with an indoor unit to circulate cooled air, offering a scalable solution for various building sizes.
- Features a two-stage tandem compressor design.
- Equipped with a high-efficiency copper tube/aluminum fin coil.
- Includes a heavy-gauge galvanized-steel cabinet with a Nickel Gray powder-paint finish.
Product Highlights
This Daikin air conditioner provides reliable cooling with durable construction and efficient operation, suitable for commercial applications.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DC6TE09030
Technical Specifications
-
Product Category: Light Commercial
-
Product Class - (PIM): Split Air Conditioner
-
System Family: Light Commercial Split System
-
Function Category: Cooling Only
-
Product Type: Equipment
-
Unit Type: Outdoor
-
Market Type: Residential-Single Family
-
Product Family: DC6TE_3
-
Series Name: DC6TE
-
Cooling Capacity - (Nominal): 95000 Btu/H
-
EER (HSVTC): 12.3
-
EER Ducted: 12.3
-
IEER: 16.4
-
Compressor Stages: Two Stage
-
Compressor Type: Scroll
-
Expansion Device: TXV
-
Refrigerant Type: R-32
-
Power Voltage: 208/230 V
-
Power Phase: 3 Ph
-
Power Frequency: 60 Hz
-
Min. Circuit Amps: 38.7 A
-
Max Overcurrent Protection: 50 A
-
Rated Cooling Condition - (Ambient DB): 95 °F
-
Rated Cooling Condition - (Ambient WB): 75 °F
-
Rated Cooling Condition - (Room DB): 80 °F
-
Rated Cooling Condition - (Room WB): 67 °F
-
Cooling Operation Range - (Std. Max): 125 °F
-
Cooling Operation Range - (Std. Min): 55 °F
-
Tonnage: 7.5 Ton
-
Valve Size Liquid (O.D.): 5/8 in
-
Valve Size Suction (O.D.): 1-1/8 in
-
Refrigerant Pre-Charged Line Length: 15 ft
-
Standard Line Set Length - (Max): 150 ft
-
Standard Line Set Length - (Vertical): 25 ft
-
Vertical Length - (OD Above ID): 25 ft
-
Factory Std. Refrigerant Charge: 110 oz
-
Pipe Size Liquid: 5/8 in
-
Refrigerant Charge: Pre-Charged For: 15'
-
Replaces: DX14XA0903
-
Cooling BTU: 93,000 BTU
-
Decibel Level (dBA): 84 Decibels
-
EER: 11.2
-
Liquid Valve Size: 5/8"
-
Suction Valve Size: 1 3/8"
-
Electrical: 208/230v 3 Phase 60 Hz
-
Phase: Three Phase
-
Max Breaker Size: 60 Amps
-
Min. Breaker Size: 39.2 Amps
-
Cooling Stage(s): 2
-
Compressor Stage: Two
-
Voltage: 240
-
Electrical Phase(s): 3-Phase
-
Amp(s): 50
-
Suction Valve Size (Inches): 1 1/8
-
Liquid Valve Size (Inches): 5/8
-
Model: DC6TE09030
-
AHRI Number: 215885512
-
Avg Coverage Area: 3,000+ Sq Ft
-
Cooling Capacity: 6+ Ton
-
Electrical Phase: 3-Phase
-
Line Set Connection Type: Sweat
-
Liquid Line Size: 5/8 inch
-
Suction Line Size: 1 1/8 inch
-
System Application Type: Central Split Systems
-
Region Compatibility: Nationwide
