Daikin DC3SEA6040 Air Conditioner 5 Ton REPLACEMENT DX13SA0604

Product Description

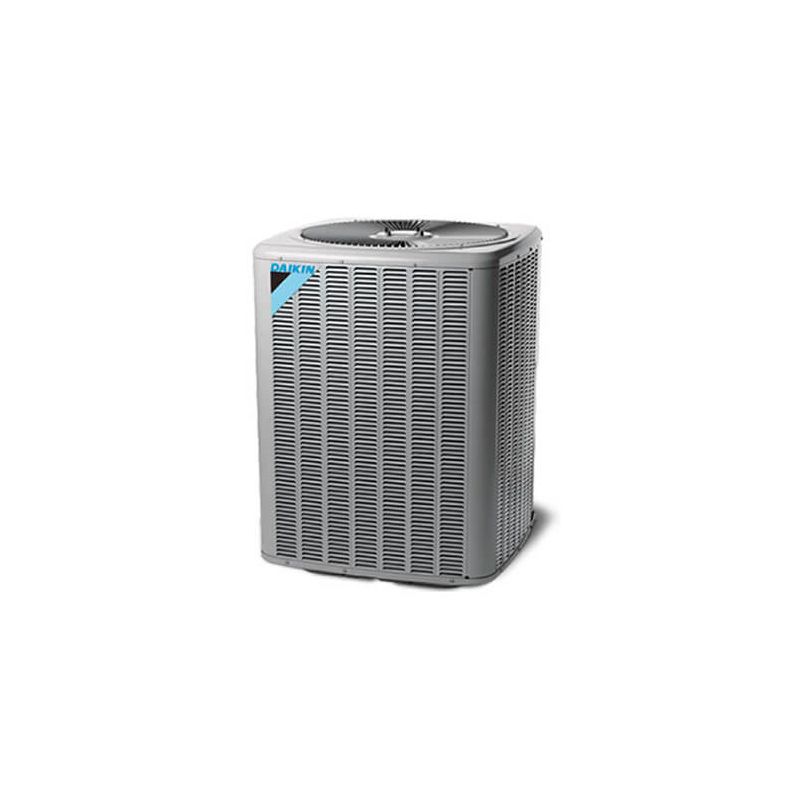

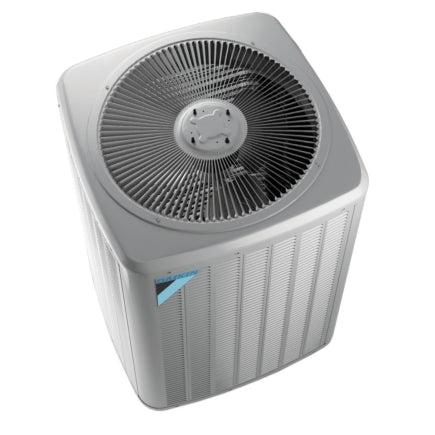

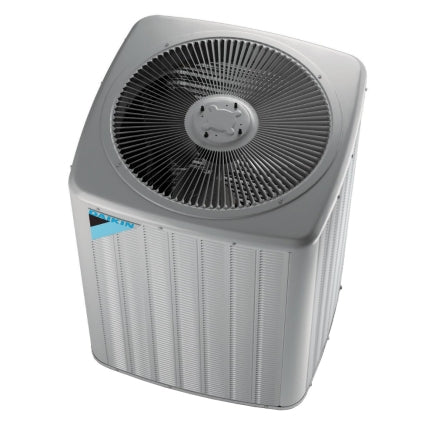

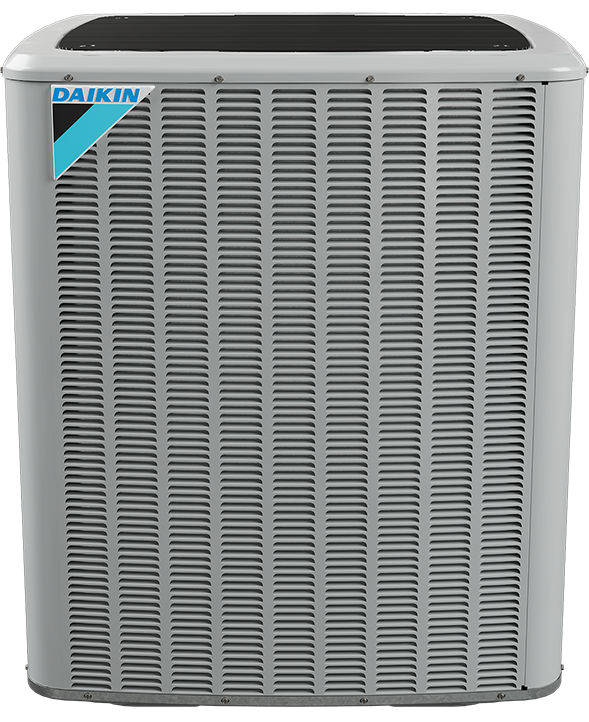

The Daikin DC3SEA6040 air conditioner condensing unit provides energy-efficient cooling performance. Suitable for ground-level or rooftop installations, this 5 ton unit features a high-efficiency scroll compressor and is pre-charged for 15' of tubing. It's designed for commercial spaces, offering reliable climate control with minimal downtime.

• High efficiency scroll compressor
• Advanced Copeland CoreSense Technology
• Fully charged for 15' of tubing length

Product Highlights

This Daikin air conditioner is AHRI certified and ETL listed, ensuring quality and safety. Its durable construction and efficient performance make it a smart choice for maintaining a comfortable commercial environment.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DC3SEA6040

Technical Specifications

• Brand: Daikin
• MPN: DC3SEA6040
• Product Category: Light Commercial
• Product Class - (PIM): Split Air Conditioner
• System Family: Light Commercial Split System
• Function Category: Cooling Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: DC3SEA_4
• Series Name: DC3SE
• Model Efficiency: 14.3 SEER2
• Family Description: R-32 A/C Light Commerical Splits Systems 3 to 5 Tons
• SEER 2 (HSVTC): 13.4
• EER2 (HSVTC): 11.0
• Cooling Capacity - (Nominal): 60000 Btu/H
• Power Voltage: 460 V
• Power Phase: 3 Ph
• Power Frequency: 60 Hz
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Refrigerant Type: R-32
• Tonnage: 5 Ton
• Cooling Operation Range - (Std. Max): 115 °F
• Cooling Operation Range - (Std. Min): 55 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Dimensions - (Unit Depth): 35.5 in
• Dimensions - (Unit Height): 39.5 in
• Dimensions - (Unit Width): 35.5 in
• Weight - (Unit): 224 lb
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length - (Max): 200 ft
• Standard Line Set Length - (Vertical): 79 ft
• Min. Circuit Amps: 10.4 A
• Max Overcurrent Protection: 15 A
• Rated Load Amps: 7.68 A
• Sound Pressure (High) - Cooling: 72 dBA
• Factory Std. Refrigerant Charge: 91 oz
• Additional Refrigerant Charge - (oz/ft): 0.58
• Pipe Size Liquid: 3/8 in
• Valve Size Suction (O.D.): 7/8 in
• EER: 11
• AHRI Certificate Number: 217021884
• SEER1 (Efficiency): 13
• Depth: 35.5"
• Width: 35.5"
• Height: 38.25"
• Weight (in lbs): 301.000000
• Decibel Level (dBA): 72 decibels
• Replaces: DX13SA0604
• Warranty: 5 Years with Online Registration
• Electrical: 460 V. 3 Phase 60 Hz
• Cooling BTU: 60,000 BTU
• Liquid Line: 3/8"
• Suction Line: 1 1/8"
• Phase: Three Phase
• Condenser Stages: Single Stage
• Max Breaker Size: 15 amps
• Min. Breaker Size: 10.6 amps
• Liquid Valve Size: 3/8"
• Refrigerant Charge: Pre-Charged For: 15'
• Suction Valve Size: 7/8" (4)
• Model: DC3SEA6040
• AHRI Number: 215707043
• Product Height (in): 39.5
• Avg Coverage Area: 2,000 - 2,500 Sq Ft
• Product Length (in): 35.5
• Electrical Phase: 3-Phase
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Weight (lbs): 224.000000
• Cooling Efficiency (SEER2): 13.4
• Suction Line Size: 1 1/8 inch
• System Application Type: Central Split Systems
• Voltage: 480
• Region Compatibility: Nationwide
• Series: DC3SEA Commercial
• SEER2 Rating: 13.4
• Cooling Capacity: 60000 Btu/hr
• Number of Stages: Single
• Sound Level: 72.0 dBA
• Motor Type: PSC
• Finish: Powder paint
• Dimensions: 35-1/2 in W x 35-1/2 in D x 39-1/2 in H
