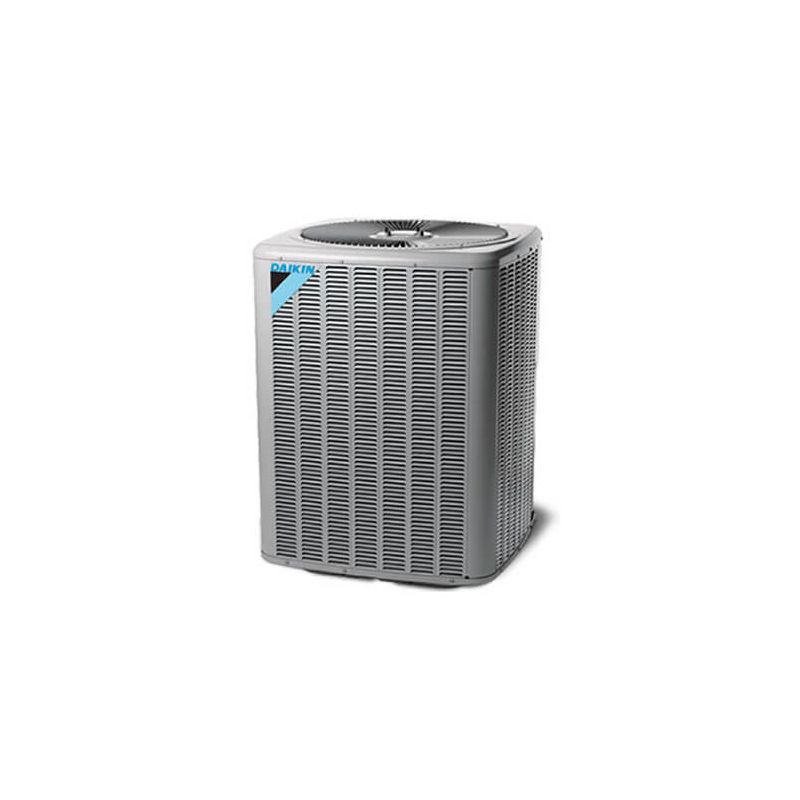

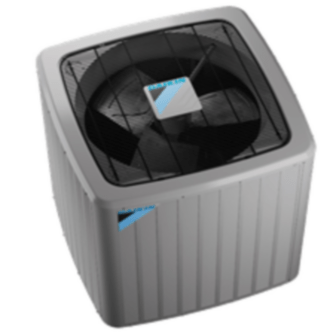

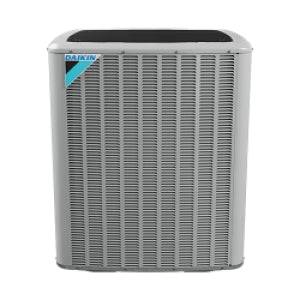

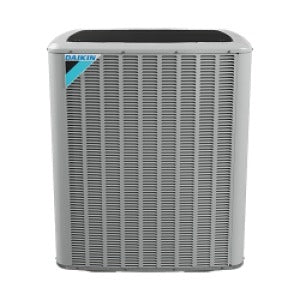

Daikin DC3SEA6030 Split Air Conditioner 5 Ton

Product Description

The DAIKIN DC3SEA6030 split air conditioner provides energy-efficient cooling. Suitable for ground-level or rooftop installations, this unit features a high-efficiency scroll compressor and is fully charged for 15' of tubing length. It is designed for residential and light commercial applications. The condenser is built with a heavy-gauge galvanized-steel cabinet.

• High efficiency scroll compressor
• Advanced Copeland® CoreSense™ Technology
• Fully charged for 15' of tubing length

Product Highlights

Energy-efficient cooling performance with durable construction and easy access to controls.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DC3SEA6030
• Country of Origin: USA

Technical Specifications

• Brand: Daikin
• MPN: DC3SEA6030
• Product Category: Light Commercial
• Product Class - (PIM): Split Air Conditioner
• System Family: Light Commercial Split System
• Function Category: Cooling Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: DC3SEA_3
• Series Name: DCS3SE
• Model Efficiency: 13.4 SEER2
• Cooling Capacity - (Nominal): 60000 Btu/H
• EER2 (HSVTC): 11.0
• ENERGY STAR® Certified: No
• SEER 2 (HSVTC): 13.4
• Cooling Operation Range - (Std. Max): 115 °F
• Cooling Operation Range - (Std. Min): 55 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Max Overcurrent Protection: 35 A
• Min. Circuit Amps: 20.5 A
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208/240 V
• Rated Load Amps: 15.36 A
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Sound Pressure (High) - Cooling: 72 dBA
• Cooling Capacity - (Rated): 55000 Btu/H
• Tonnage: 5.0
• Refrigerant Type: R-32
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length - (Max): 200 ft
• Standard Line Set Length - (Vertical): 79 ft
• Pipe Size Liquid: 3/8 in
• Valve Size Suction (O.D.): 7/8 in
• Dimensions - (Unit Depth): 35.5 in
• Dimensions - (Unit Height): 39.5 in
• Dimensions - (Unit Width): 35.5 in
• AHRI Certificate Number: 217021883
• Replaces: DX13SA0603
• Cooling BTU: 60,000 BTU
• Decibel Level (dBA): 76 decibels
• SEER1 (Efficiency): 13
• EER: 11
• Liquid Line: 3/8"
• Suction Line: 1 1/8"
• Liquid Valve Size: 3/8"
• Suction Valve Size: 7/8" (4)
• Electrical: 208 / 230 V. 3 Phase 60 Hz
• Phase: Three Phase
• Max Breaker Size: 35 amps
• Min. Breaker Size: 21.3 amps
• Series: DC3SEA Commercial
• SEER2 Rating: 13.4
• HP Rating: 1/4 hp
• Number of Stages: Single
• Suction Line Size: 3/4 in
• Sound Level: 72.0 dBA
• Finish: Powder paint
• Voltage Requirements: 208V To 230V
