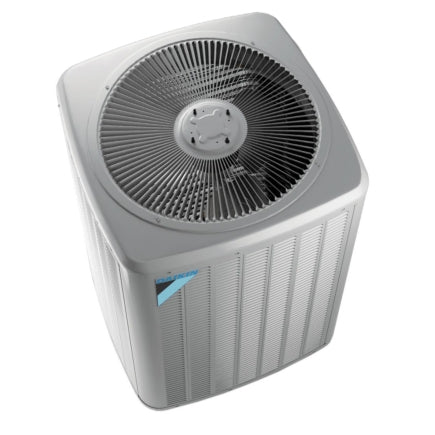

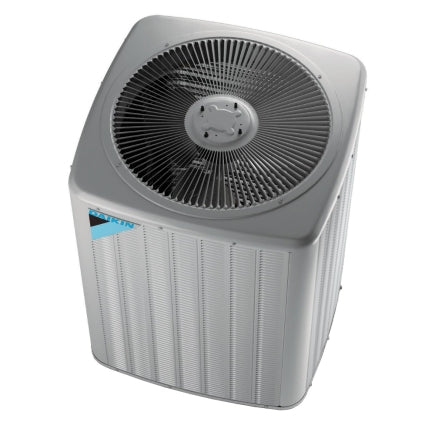

Daikin DC3SEA3630 Split Air Conditioner 13.4 seer2, single stage 3 ton

Product Description

The DAIKIN DC3SEA3630 split air conditioner features 13.4 SEER2 and single-stage cooling. Designed for light commercial use, this outdoor unit is suitable for residential single-family applications. It has a cooling capacity of 36000 Btu/H and utilizes R-32 refrigerant. The unit operates on 208/240 V, 3 Ph power at 60 Hz.

• Features a high-efficiency scroll compressor.
• Equipped with Copeland CoreSense Technology.
• Pre-charged for 15' of tubing length.

Product Highlights

This Daikin air conditioner provides efficient cooling with a durable design, ensuring reliable performance for residential and light commercial spaces.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DC3SEA3630
• Country of Origin: United States

Technical Specifications

• Brand: Daikin
• MPN: DC3SEA3630
• Product Category: Light Commercial
• Product Class - (PIM): Split Air Conditioner
• System Family: Light Commercial Split System
• Function Category: Cooling Only
• Product Type: Equipment
• Unit Type: Outdoor
• Market Type: Residential-Single Family
• Product Family: DC3SEA_3
• Series Name: DCS3SE
• Model Efficiency: 13.4 SEER2
• Cooling Capacity: 36000 Btu/H
• EER2 (HSVTC): 11.2
• ENERGY STAR® Certified: No
• SEER 2 (HSVTC): 13.4
• Cooling Operation Range - (Std. Max): 115 °F
• Cooling Operation Range - (Std. Min): 55 °F
• Rated Cooling Condition - (Ambient DB): 95 °F
• Rated Cooling Condition - (Ambient WB): 75 °F
• Rated Cooling Condition - (Room DB): 80 °F
• Rated Cooling Condition - (Room WB): 67 °F
• Max Overcurrent Protection: 25 A
• Min. Circuit Amps: 14.2 A
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Power Voltage: 208/240 V
• Rated Load Amps: 10.82 A
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Sound Pressure (High) - Cooling: 71 dBA
• Cooling Capacity - (Rated): 34200 Btu/H
• Tonnage: 3.0
• Refrigerant Type: R-32
• Factory Std. Refrigerant Charge: 60 oz
• Refrigerant Pre-Charged Line Length: 15 ft
• Standard Line Set Length - (Max): 200 ft
• Standard Line Set Length - (Vertical): 79 ft
• Valve Size Suction (O.D.): 3/4 in
• Pipe Size Liquid: 3/8 in
• Series: DC3SEA Commercial
• HP Rating: 1/8 Hp
• Number of Stages: Single
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Sound Level: 71.0 dBA
• Finish: Powder paint
• Avg Coverage Area: 1,500 - 1,800 Sq Ft
• Electrical Phase: 3-Phase
• Line Set Connection Type: Sweat
• Cooling Efficiency (SEER2): 13.4
• System Application Type: Central Split Systems
• Voltage: 240
• Region Compatibility: Nationwide
• Item Name: Split System Air Conditioner
• Nominal Cooling Capacity: 36 Btu/hr
• Frequency Rating: 60 Hz
• Horse Power: 1/8 hp
• Sound Rating: 71 dB
• Capacity in Tons: 3 ton
• Minimum Circuit Amperage: 14.2 A
• Maximum Fuse Size: 25 A
• Blower Motor: PSC
• Motor Type: PSC
• Connection Size: 3/8 in OD Liquid, 3/4 in OD Suction
• Blower Motor HP: 1/8 hp
• Standards/Approvals: AHRI Certified, cETLus Intertek Certified, ETL Listed
