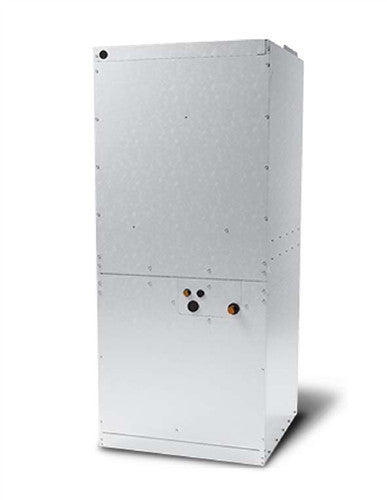

Daikin DAQ12033 Air Handler, Multi Speed ECM Motor, 10 Ton

Product Description

The Daikin DAQ12033 air handler is a 10-ton light commercial indoor unit with a multi-speed ECM motor. Designed for light commercial split systems, it features a TXV expansion device and a heavy-gauge, reinforced, galvanized-steel cabinet. The unit is fully insulated with a fiberglass blanket.

• Features two thermal expansion valves for TXV control.
• Equipped with two 5-speed direct-drive motors.
• Includes copper tube/aluminum fin coils.

Product Highlights

This Daikin air handler is AHRI certified, ETL listed, and incorporates an R-32 leak mitigation system.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DAQ12033
• Country of Origin: USA

Technical Specifications

• MPN: DAQ12033
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Air Handler
• System Family: Light Commercial Split System
• Function Category: Air Handler
• Product Type: Equipment
• Unit Type: Indoor
• Market Type: Light Commercial
• Product Family: DAQ_3
• Cooling Capacity - (Nominal): 120000 Btu/H
• Power Voltage: 208/230 V
• Power Frequency: 60 Hz
• Power Phase: 3 Ph
• Indoor Blower FLA: 13.8 A
• Max Overcurrent Protection: 20 A
• Min. Circuit Amps: 15.5/15.5 A
• Min. Voltage: 197 V
• Max Voltage: 253 V
• Motor Speed Type: Multi Speed ECM
• Number of Speeds: 5
• Expansion Device: TXV
• Evap Coil Face Area (ft²: 10.0
• Evap Motor RPM: 1200 r/min
• Tonnage: 10.0
• Condensate Drain Outlet: 3/4 in
• Pipe Size Gas: 1-1/8 in
• Pipe Size Liquid: 5/8 in
• AHRI Number: 215885510
• Product Height (in): 24.2
• Configuration: Floor Mounted
• Product Length (in): 60.5
• Air Flow Direction: Horizontal, Vertical
• Product Width (in): 48.1
• Blower Motor: Multi Speed
• Cooling Capacity: 6+ Ton
• Electrical Phase: 3-Phase
• Heat Strip Compatibility: Up to 30 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Refrigerant: R-32
• Suction Line Size: 1 1/8 inch
• System Application Type: Central Split Systems
• Voltage: 208/230 V
• Model Number(s): DAQ12033
• Maximum CFM: 4,000
• Depth (Inches): 24
• Horse Power: 1 hp
• Nominal Capacity: 10 ton
• Air Flow: 3000 cfm
• Circuit Amperage: 15.5 A
• Finish: Galvanized
• Motor Type: Direct Drive
• Material: Steel
• Filter Size: 16 x 20 x 2 in, 20 x 20 x 2 in
