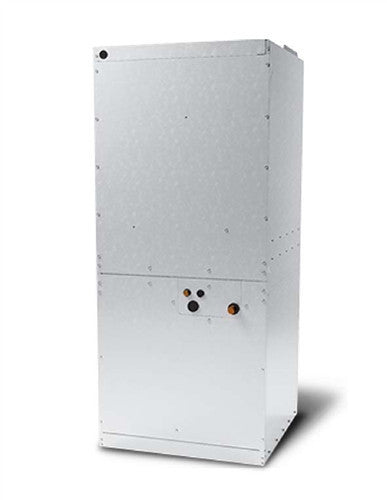

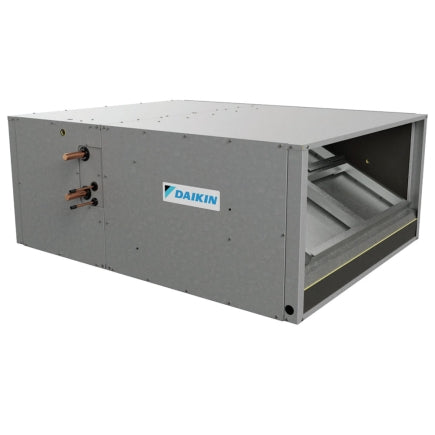

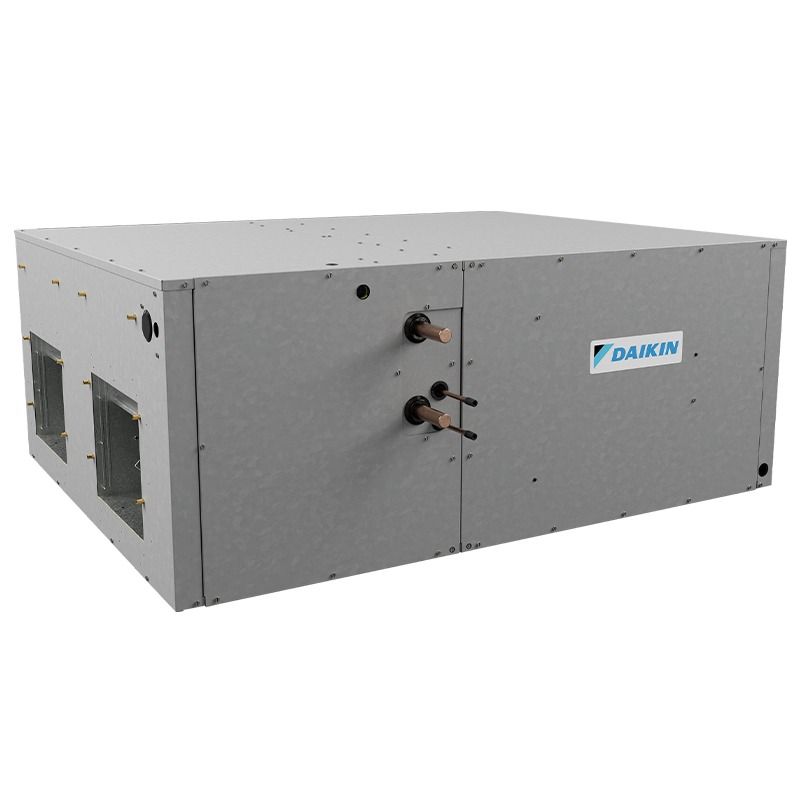

Daikin DAQ09034 Air Handler, Multi Speed ECM Motor, 7.5 Ton

Product Description

The Daikin DAQ09034 air handler is an indoor unit with a multi-speed ECM motor designed for use with an outdoor air conditioner or heat pump in a split HVAC system. It circulates conditioned air throughout a commercial space. Features TXV control and copper tube/aluminum fin coils. AHRI Certified and ETL Listed. Designed for 460V 3Ph power.

• Features TXV control with two thermal expansion valves.
• Equipped with two 5-speed direct-drive motors.
• Constructed with a heavy-gauge, reinforced, galvanized-steel cabinet.

Product Highlights

This Daikin air handler ensures efficient air distribution and enhanced energy efficiency in commercial spaces with its durable construction and advanced features.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: DAQ09034
• Country of Origin: United States

Technical Specifications

• MPN: DAQ09034
• Brand: Daikin
• Product Category: Light Commercial
• Product Class - (PIM): Air Handler
• System Family: Light Commercial Split System
• Function Category: Air Handler
• Product Type: Air Handler
• Unit Type: Indoor
• Market Type: Light Commercial
• Product Family: DAQ_4
• Cooling Capacity - (Nominal): 90000 Btu/H
• Power Voltage: 460 V
• Power Phase: 3 Ph
• Power Frequency: 60 Hz
• Indoor Blower FLA: 5.2 A
• Max Overcurrent Protection: 15 A
• Min. Circuit Amps: 5.2 A
• Max Voltage: 506 V
• Min. Voltage: 414 V
• Dimensions - (Unit Depth): 48.09375 in
• Dimensions - (Unit Height): 24.1875 in
• Dimensions - (Unit Width): 60.46875 in
• Dimensions - (Blower Diameter): 11 in
• Evap Coil Face Area (ft²): 10.0
• Evap Motor RPM: 1200 r/min
• Expansion Device: TXV
• Motor Speed Type: Multi Speed ECM
• Number of Speeds: 5
• Weight - (Unit): 430 lb
• Tonnage: 7.5 Ton
• Condensate Drain Outlet: 3/4 in
• Pipe Size Liquid: 5/8 in
• Pipe Size Gas: 1-1/8 in
• Cooling BTU: 90,000 BTU
• Maximum CFM: 3000
• Refrigerant: R32
• Liquid Line Size: 3/8 inch
• Suction Line Size: 1 1/8 inch
• Phase: Three Phase
• Model: DAQ09034
• Configuration: Floor Mounted
• Air Flow Direction: Horizontal, Upflow
• Heat Strip Compatibility: Up to 30 kW
• Line Set Connection Type: Sweat
• Voltage: 480
• System Application Type: Central Split Systems
