Product Description

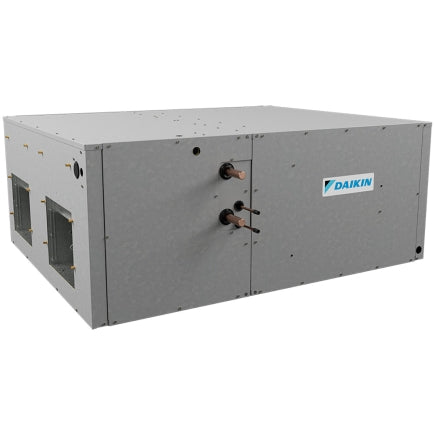

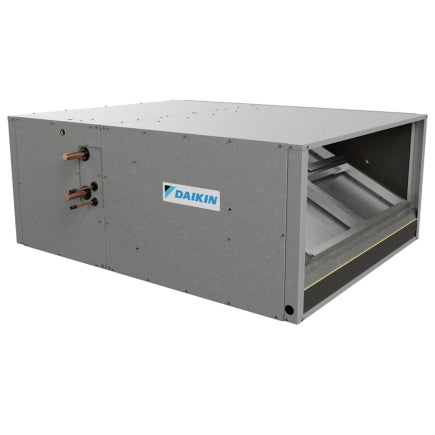

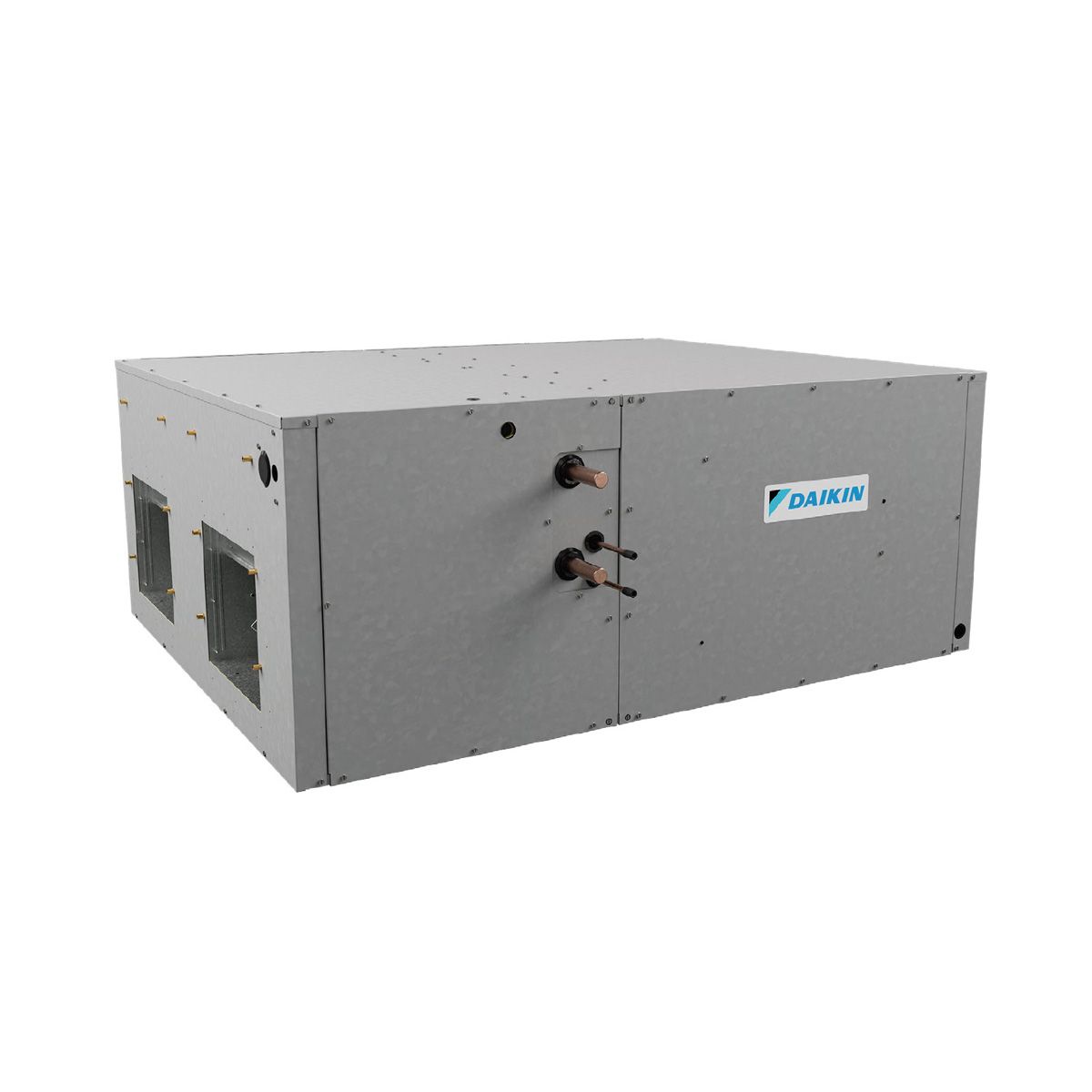

The DAIKIN DAQ09033 is a 7.5 Ton light commercial air handler with a multi-speed ECM motor. The unit features a 60.46875-inch cabinet with TXV expansion and is designed for 208/230V 3PH R32 systems. It is suitable for light commercial applications and provides efficient air handling.
- Features TXV control with two thermal expansion valves.
- Equipped with two 5-speed direct-drive motors.
- Heavy-gauge, reinforced, galvanized-steel cabinet.
Product Highlights
This Daikin air handler ensures reliable climate control for commercial spaces with its robust construction and advanced features.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: DAQ09033
-
Country of Origin: USA
Technical Specifications
-
Brand: Daikin
-
MPN: DAQ09033
-
Product Category: Light Commercial
-
Product Class - (PIM): Air Handler
-
System Family: Light Commercial Split System
-
Function Category: Air Handler
-
Product Type: Equipment
-
Unit Type: Indoor
-
Market Type: Light Commercial
-
Product Family: DAQ_3
-
Cooling Capacity - (Nominal): 90000 Btu/H
-
Power Voltage: 208/230 V
-
Power Frequency: 60 Hz
-
Power Phase: 3 Ph
-
Motor Speed Type: Multi Speed ECM
-
Number of Speeds: 5
-
Expansion Device: TXV
-
Tonnage: 7.5
-
Country of Origin: USA
-
Evap Coil Face Area (ft²): 10.0
-
Indoor Blower FLA: 13.8 A
-
Max Overcurrent Protection: 20 A
-
Min. Circuit Amps: 15.5 A
-
Min. Voltage: 197 V
-
Max Voltage: 253 V
-
Dimensions - (Unit Depth): 48.09375 in
-
Dimensions - (Unit Height): 24.1875 in
-
Dimensions - (Unit Width): 60.46875 in
-
Dimensions - (Blower Diameter): 11 in
-
Evap Motor RPM: 1200 r/min
-
Blower Motor HorsePower: 1 metric hp
-
Condensate Drain Outlet: 3/4 in
-
Pipe Size Liquid: 5/8 in
-
Pipe Size Gas: 1-1/8 in
-
Refrigerant Type: R-32
-
Maximum CFM: 3,000
-
Suction Valve Size (Inches): 1 1/8
-
Liquid Valve Size (Inches): 5/8
-
Model: DAQ09033
-
AHRI Number: 215885508
-
Configuration: Floor Mounted
-
Air Flow Direction: Horizontal,
Upflow
-
Blower Motor: Multi Speed
-
Cooling Capacity: 7.5 ton
-
Electrical Phase: 3-Phase
-
Heat Strip Compatibility: Up to 30 kW
-
Line Set Connection Type: Sweat
-
Liquid Line Size: 3/8 inch
-
Suction Line Size: 1 1/8 inch
-
System Application Type: Central Split Systems
-
Voltage: 240
-
Item Name: Electric Air Handler
-
Series: DAQ Series
-
Series/Grouping: DAQ Series
-
Voltage Rating: 208/230 V
-
Nominal Capacity: 7.5 ton
-
Amperage Rating: 13.8 A
-
Air Flow: 3000 cfm
-
Circuit Amperage: 15.5 A
-
Finish: Galvanized
-
Motor Type: Direct Drive
-
Material: Steel
-
Filter Size: 16 x 20 x 2 in, 20 x 20 x 2 in
-
Metering Device: Thermal Expansion Valve
-
Standards: ASHRAE 90.1, AHRI Certified, ETL Listed
-
Standards/Approvals: ASHRAE 90.1, AHRI Certified, ETL Listed
