Daikin CHPTA2426B3 Evaporator Coil 2 Ton Horizontal

Product Description

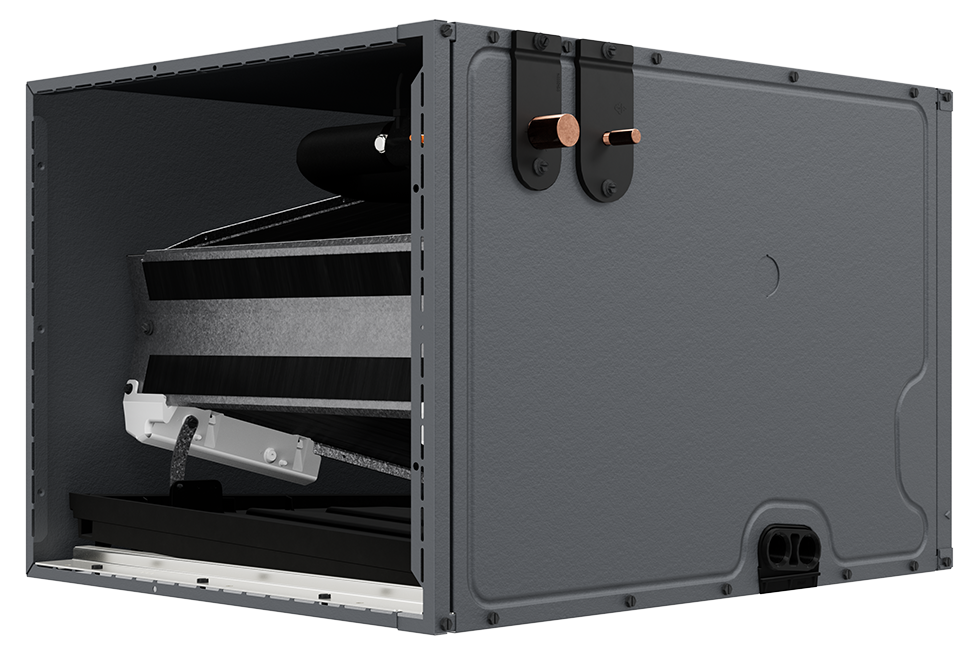

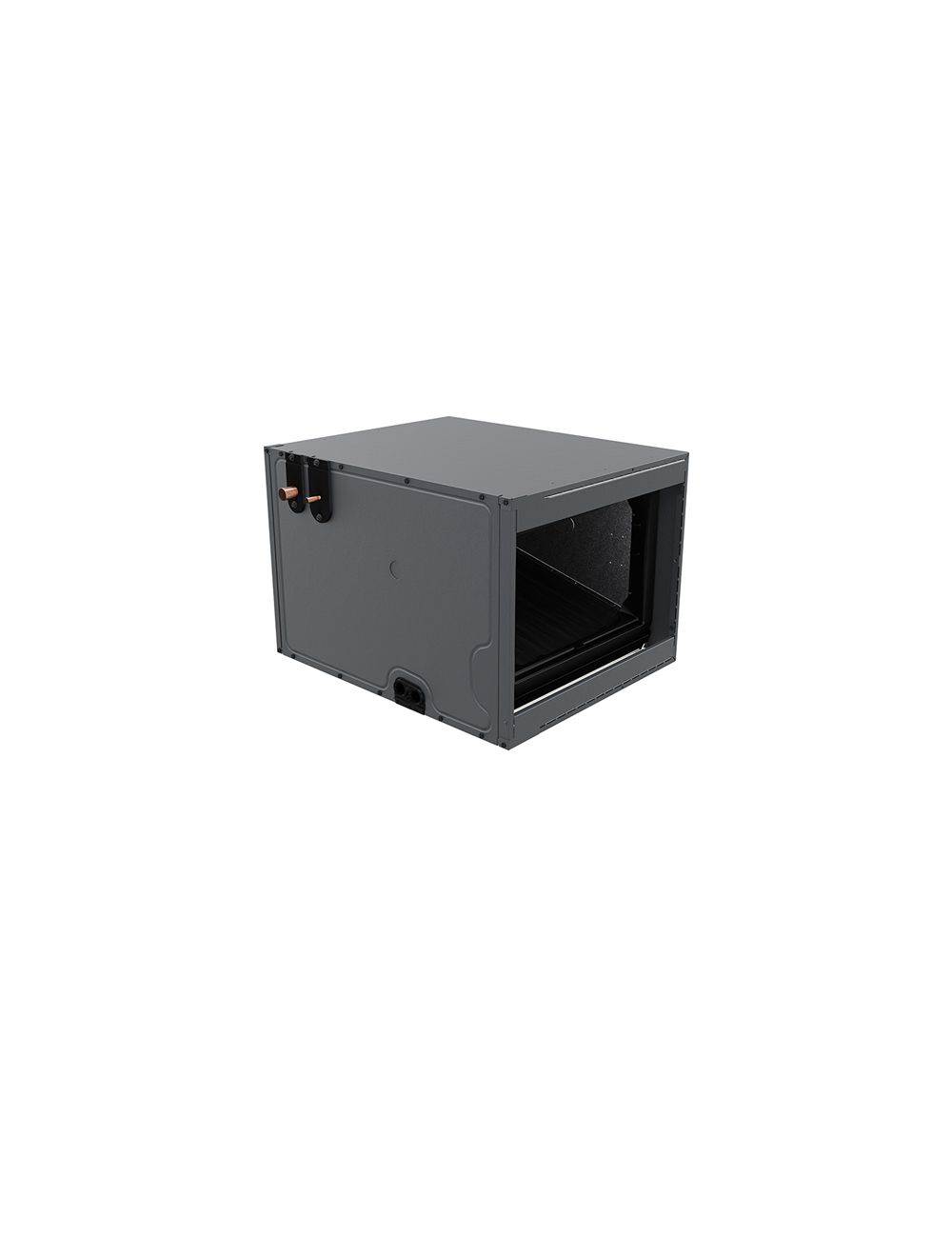

The Daikin CHPTA2426B3 evaporator coil is an all-aluminum R32 CHPTA cased horizontal coil with a factory-installed TXV, designed for split system air conditioners and heat pumps. Features include a standardized copper suction tube stub length and a 21-inch depth for easier attic access. The unit has a galvanized leather grain-embossed finish.

• All-aluminum evaporator coil
• Factory installed thermal expansion valves (TXV)
• Rust-resistant thermoplastic drain pans

Product Highlights

This Daikin evaporator coil is designed for efficient cooling and heat pump applications, featuring durable construction and easy installation.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: CHPTA2426B3

Technical Specifications

• All-Aluminum evaporator coil: Yes
• R-32 Refrigerant Type: Yes
• Installation Type: Ducted
• Item Name: Cased Indoor Evaporator Coil
• Series: CHPTA Series
• Nominal Capacity: 2 ton
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Metering Device: TXV
• Tubing Material: Aluminum
• Fin Material: Aluminum
• Configuration: Horizontal
• Applications: Cooling, Heat Pump
• Standards/Approvals: AHRI Certified, ETL Listed
• Cabinet Depth: 21 in
• Cabinet Height: 17-1/2 in
• Cabinet Width: 26 in
• Material: Aluminum
• Flow Rating: 1300 cfm
• Model: CHPTA
• Coil Type: Evaporator
• Tonnage: 2.0 ton
• Connection Size: 3/8 in, 7/8 in
• Flow Rate: 1300 cfm
• Finish: Galvanized/Leather Grain-Embossed
• Dimensions: 17-1/2 in H x 26 in W x 21 in D
