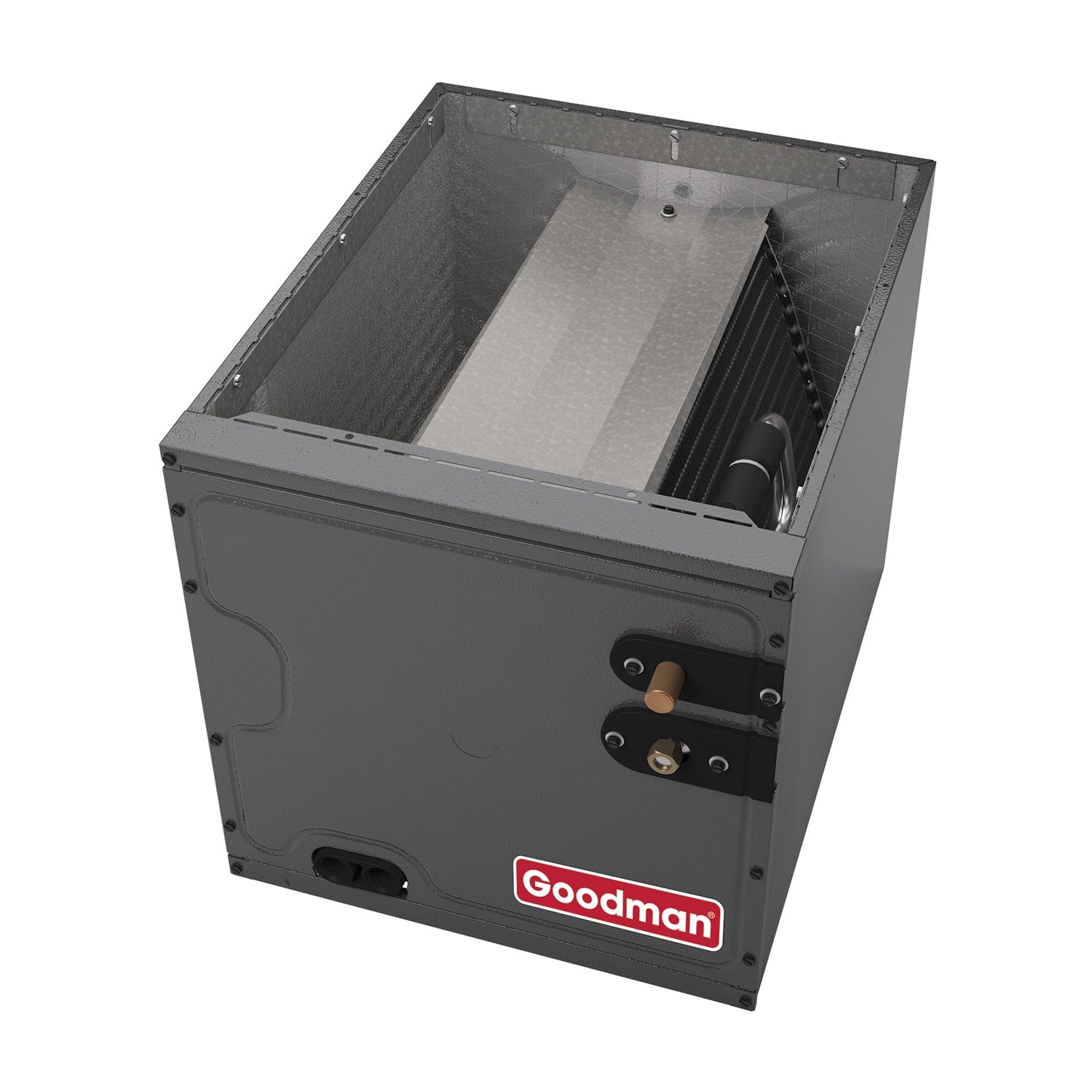

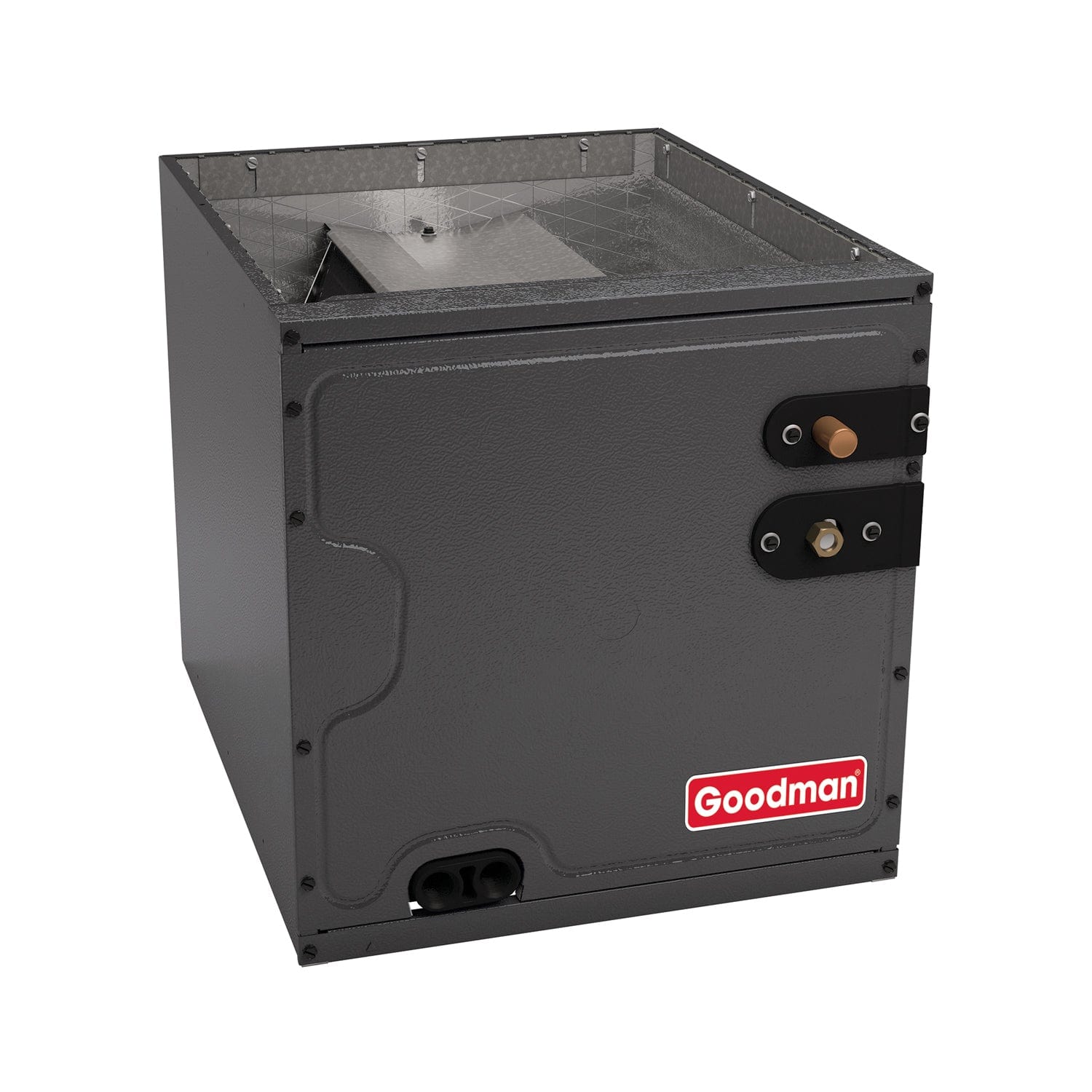

DAIKIN CAPTA4230C3 Evaporator Coil 3.5 Ton R-32 Upflow/Downflow

Product Description

The DAIKIN CAPTA4230C3 is an evaporator coil suited for both upflow and downflow setups. It consists of all-aluminum tubing, fins, and end plates and is made to work with R-32 refrigerant. This A coil is equipped with a factory-installed thermal expansion valve (TXV) and a thermoplastic drain pan. It is compatible with cooling and heat pump systems. The coil undergoes pressure testing and is certified for reliable performance.

• All-aluminum evaporator coil construction.
• Optimized for R-32 refrigerant usage.
• Includes a factory-installed thermal expansion valve for efficient operation.

Product Highlights

This evaporator coil delivers effective cooling for various HVAC applications.

Product Information

Standard Information

• Brand: DAIKIN
• MPN: CAPTA4230C3

Technical Specifications

• Product Type: Evaporator Coil
• Refrigerant Type: R-32
• Configuration: Upflow/Downflow
• Casing: Cased
• TXV Installed: Yes
• Capacity: 3.5 Tons
• Cooling BTU: 42000
• Liquid Connection Size: 3/8 Inch
• Suction Connection Size: 7/8 Inch
• Dimensions: 21 W x 21 D x 30 H
• Weight: 51 Pounds
• Shipping Weight: 66 Pounds
• AHRI Certified: Yes
• ETL Listed: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
