Daikin CAPTA3626B3 3 Ton Coil R32

Product Description

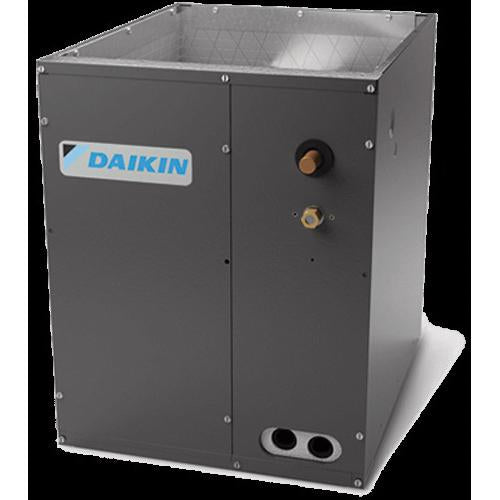

The Daikin CAPTA3626B3 is a 3 Ton Coil R32. Optimized for use with R-32 refrigerant, this coil features all-aluminum construction and a factory-installed thermal expansion valve. Designed for upflow/downflow configurations, it includes a rust-resistant thermoplastic drain pan and a galvanized, leather grain-embossed finish.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil

Product Highlights

The Daikin CAPTA3626B3 evaporator coil is AHRI certified and ETL listed. It features a DecaBDE-free thermoplastic drain pan with secondary drain connections.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: CAPTA3626B3

Technical Specifications

• Model Number: CAPTA3626B3
• Model: CAPTA
• Coil Type: Evaporator
• Tonnage: 3.0 ton
• Configuration: Downflow/Upflow
• Refrigerant Type: R-32
• Connection Size: 3/8 in, 7/8 in
• Flow Rate: 1600 cfm
• Material: Aluminum
• Finish: Galvanized/Leather Grain-Embossed
• Item Name: Cased Indoor Evaporator Coil
• Series: CAPTA Series
• Nominal Capacity: 3 ton
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Metering Device: TXV
• Tubing Material: Aluminum
• Fin Material: Aluminum
• Cabinet Depth: 21 in
• Cabinet Height: 26 in
• Cabinet Width: 17-1/2 in
• Applications: Cooling, Heat Pump
• Standards/Approvals: AHRI Certified, ETL Listed
