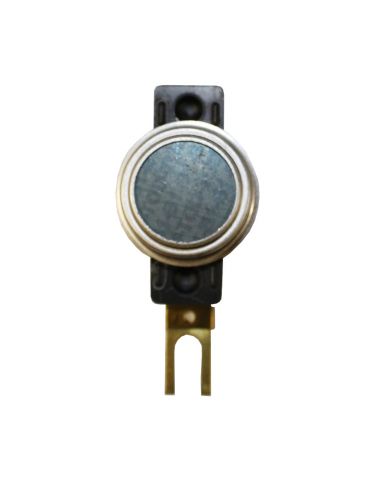

DAIKIN B1370115 Limit Switch

Product Description

The DAIKIN B1370115 is a limit switch used for effective temperature regulation. It features an automatic reset function for ease of use after a temperature event. This switch operates using a SPST (Single Pole Single Throw) normally closed circuit configuration. It opens the circuit when the temperature reaches one hundred fifty degrees Fahrenheit and closes it again when the temperature drops to one hundred fifteen degrees Fahrenheit. This model is also identified by the cross-reference number L150F-35, ensuring compatibility with devices that share this identifier.

• Automatic reset functionality for simplified operation.
• Opens at one hundred fifty degrees Fahrenheit and closes at one hundred fifteen degrees Fahrenheit.
• SPST normally closed circuit configuration.

Product Highlights

This limit switch is ideal for monitoring temperature and enabling automated responses based on set temperature levels.

Product Information

Standard Information

• Reset Type: Auto
• Circuit: SPST Normally Closed

Technical Specifications

• Open Temperature: 150 degrees Fahrenheit
• Close Temperature: 115 degrees Fahrenheit
• Cross-Reference Numbers: L150F-35
