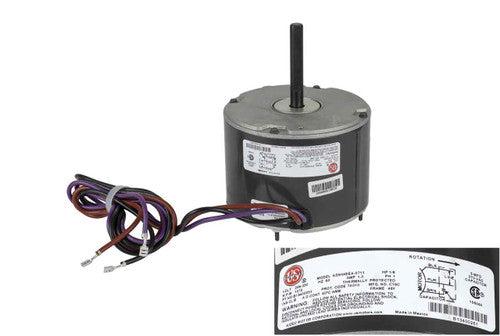

DAIKIN B13400251S Condenser Fan Motor 1/6 HP 208-230 VAC

Product Description

The DAIKIN B13400251S is a single-phase condenser fan motor specifically designed for air conditioning condenser units. This motor operates at 208-230 volts and sixty hertz, providing one-sixth horsepower at one thousand seventy-five RPM. It is manufactured with a forty-eight Y frame and includes thermal protection, ensuring safe operation. This condenser fan motor features Class B insulation and utilizes air-over continuous duty for effective cooling. The motor enclosure is rated as totally enclosed air over (TEAO), and it is equipped with self-aligning ball bearings. A five MFD capacitor at three hundred seventy VAC is required for operation.

• Operates at 208-230 VAC, sixty hertz, single-phase power.
• Delivers one-sixth horsepower at one thousand seventy-five RPM.
• Thermal protection and Class B insulation for enhanced safety.

Product Highlights

This motor is used in various air conditioner condenser models, making it a versatile replacement option.

Product Information

Standard Information

• Manufacturer Name: Daikin Industries, Ltd.
• Manufacturer Part Number: B13400251S

Technical Specifications

• UNSPSC: 26101105
• Manufacturer: US Motors
• Model: K55HXEEA-0711
• Horsepower: 1/6
• Voltage: 208-230
• Hertz: 60
• Amperage: 1.00
• RPM: 1075
• Frame: 48Y
• Thermally Protected: Yes
• Insulation Class: B
• Cooling/Duty: Air Over Continuous
• Enclosure: Totally Enclosed Air Over
• Bearings: Self-Aligning Ball
• Capacitor Needed: 5 MFD @ 370 VAC
• Rotation: Counterclockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2
• Shaft Length: 3 1/8
• Item: Fan Motor
• Used On Item: Air Conditioner Condenser
• Used On Model/Brand: APG10240451A, APG10240701A, APG10300701A, C30-1AB, C36-1B
• Voltage Rating: 208 to 230 Volt
• Power Rating: 1/6 HP
• Number of Speed: 1 Speed
• Speed Rating: 1075 RPM
