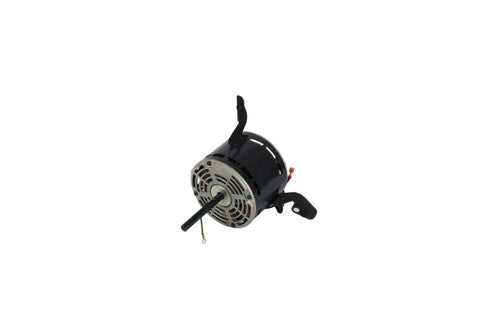

DAIKIN B1340021S Blower Motor Direct Drive

Product Description

The DAIKIN B1340021S is a blower motor designed for direct drive applications in air circulation systems. It operates on 115 volts and 60 hertz with a single-phase power supply. This motor delivers one third horsepower and uses five point one amps of current.

• Four selectable speeds with a maximum of 1075 RPM.
• Constructed with a 48Y frame featuring Class B insulation.
• Thermally protected with self-aligning ball bearings.

Product Highlights

Ideal for continuous operation with air-over cooling. Designed for ambient temperatures up to forty degrees Celsius.

Product Information

Standard Information

• Manufacturer: US Motors
• Model Number: K55HXRBJ-1828

Technical Specifications

• Horsepower: 1/3 Hp
• Voltage: 115 V
• Hertz: 60 Hz
• Amperage: 5.1 A
• Phase: 1 Ph
• RPM: 1075 rpm
• Speeds: 4 Speed
• Frame: 48Y
• Thermally Protected: True
• Insulation Class: B
• Motor Cooling/Duty: Air Over Continuous
• Bearings: Self Aligning Ball
• Ambient Air Temperature: 40 °C
• Mounting: Wing & Grommet
• Number of Mounting Wings: 3
• Capacitor Needed: 12.5 MFD @ 370 VAC
• Rotation: Counterclockwise Lead End
• Shaft Style: Single Side Flat Shaft
• Shaft Diameter: 1/2 inch
• Shaft Length: 4 inches
• Drive Type: Direct Drive
• Mount: T-Flex Mount
• Shaft Size: 0.5 in x 6 in
• MPN: B1340021S
• Condition: New
