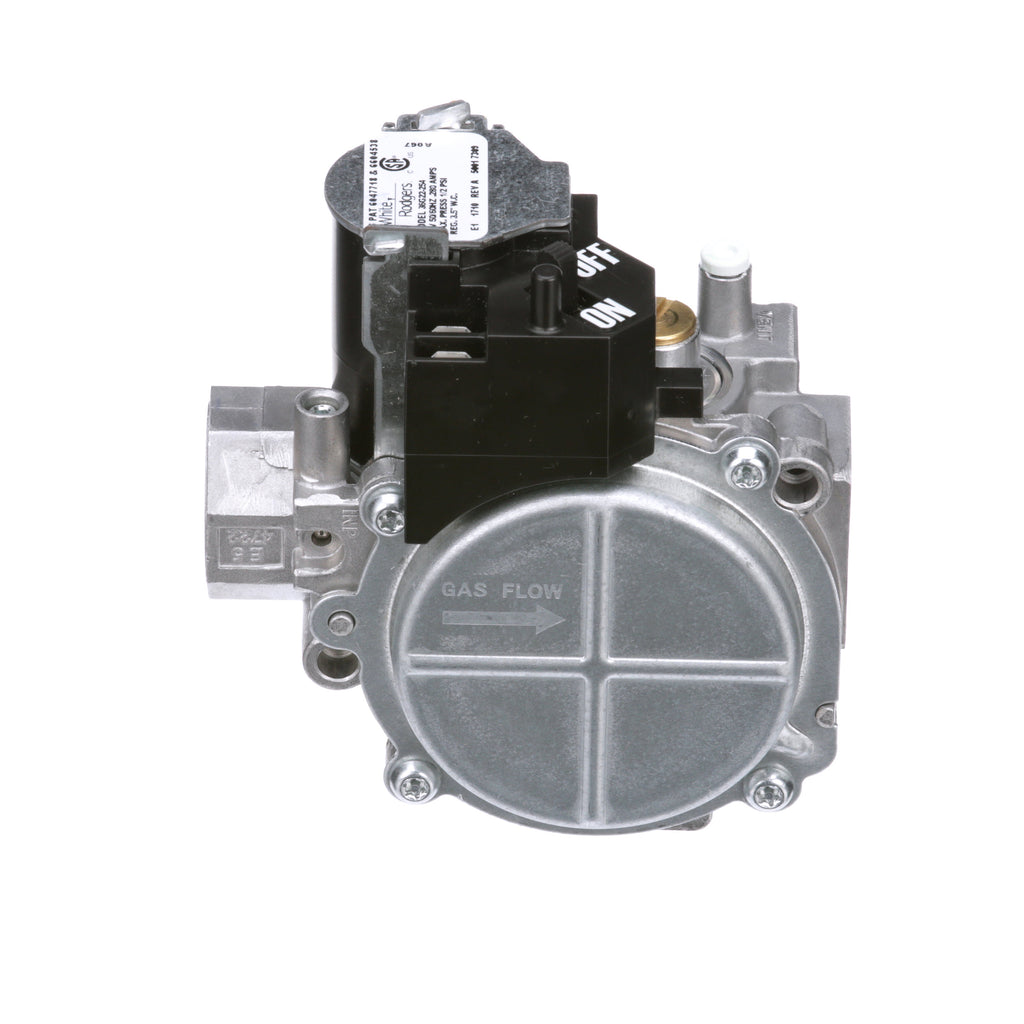

DAIKIN B1282628S Gas Valve

Product Description

The DAIKIN B1282628S is a gas valve suited for furnace applications. This valve controls gas flow into the combustion chamber, maintaining necessary gas pressure for efficient combustion. It operates as a low voltage control system at twenty-four VAC. The valve includes a manual shut-off option and is adaptable for both natural gas and LP gas with a separate conversion kit.

• Controls gas flow into the combustion chamber.
• Operates on a 24 VAC low voltage control.
• Includes a manual shut-off feature.

Product Highlights

This gas valve is a critical component for optimal furnace performance, ensuring safe and efficient gas management.

Product Information

Standard Information

• Brand: DAIKIN
• MPN: B1282628S

Technical Specifications

• Nominal Capacity (LP): 226,800 BTU/hr @ 1 Pressure Drop
• Nominal Capacity (NG): 140,000 BTU/hr @ 1 Pressure Drop
• Input Voltage: 24 VAC, 50/60Hz
• Ignition Type: Direct Spark (DSI), Hot Surface (HSI)
• Inlet/Outlet Size: 1/2 X 1/2
• Regulation Range (Natural Gas): 40,000-210,000
• Regulation Range (LP Gas): 60,000-340,000
• Regulator Adjustment Range (NG): 2.5-5.0 WC
• Regulator Adjustment Range (LP): 7.0-12.0 WC
• Regulator Setting: NG: 3.5 W.C.
• Pressure Rating: 3.5 in-WC
