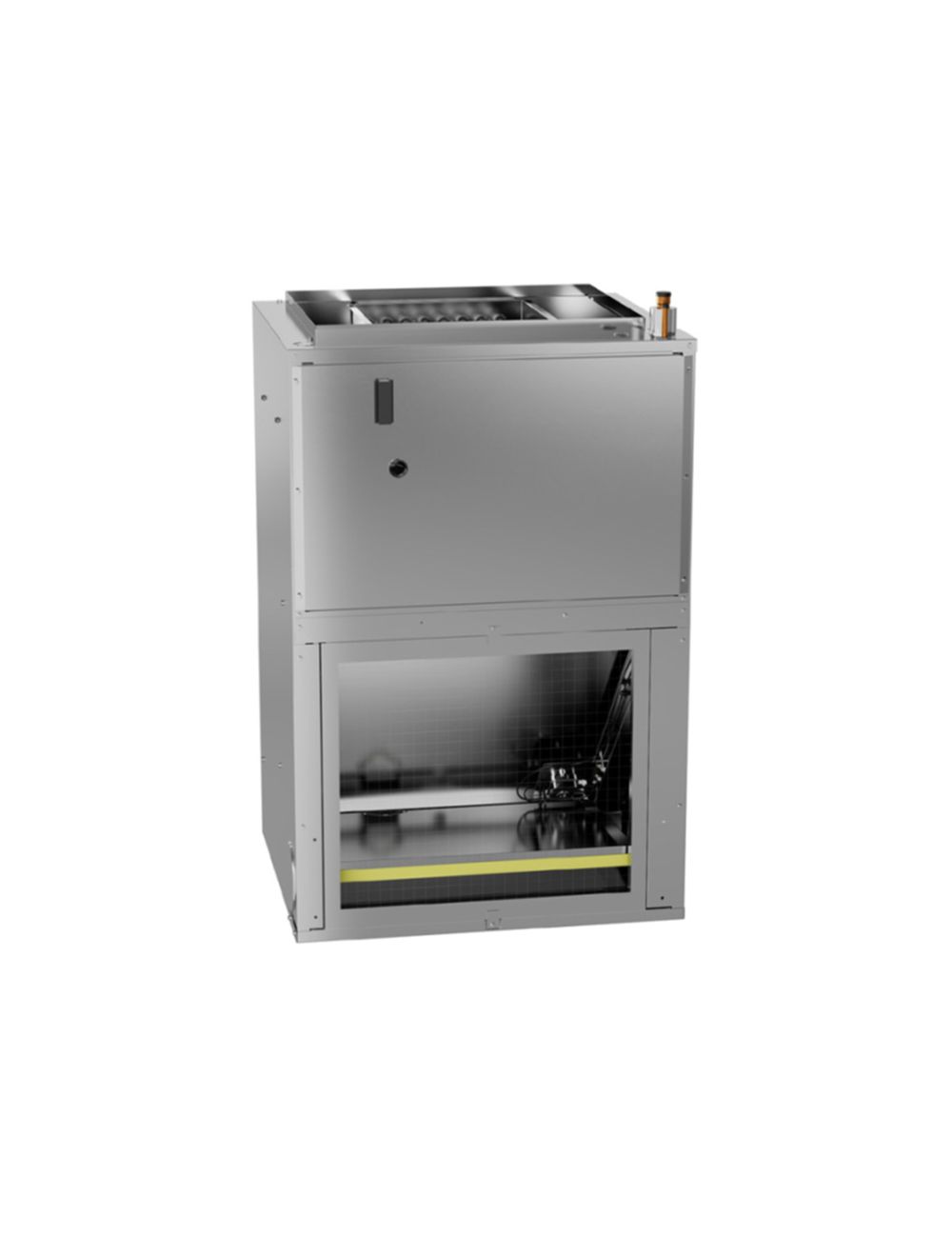

DAIKIN AWST18SU1305 Air Handler 1.5 Ton 5 kW

Product Description

The DAIKIN AWST18SU1305 air handler is an essential component for a complete home climate control system. This air handler effectively manages indoor humidity, enhancing comfort levels in your home. The product utilizes a multi-speed ECM motor for efficient air circulation, ensuring both heating and cooling are adequately delivered. The capacity is rated at 1.5 tons with an electric heat capacity of 5.0 kW.

• All-aluminum evaporator coil optimized for heat transfer.
• Vertical wall installation option with included bracket.
• Includes a built-in filter rack to maintain air quality.

Product Highlights

This air handler is designed for wall-mounted indoor installation and features a robust build that supports electric heating.

Product Information

Standard Information

• Type: Air Handler
• Product Line: AWST

Technical Specifications

• Refrigerant Type: R-32
• Blower Motor Type: Multi-Speed
• Motor Type: ECM
• Installation Location: Indoor
• Electric Heat: Yes
• Cooling BTU: 18000
• Maximum Air Flow: 846 CFM
• Minimum Air Flow: 630 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 24.9 Amps
• Recommended Breaker Size: 25/30 Amps
• Suction Connection Size: 5/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Height: 36 Inches
• Product Width: 20.1875 Inches
• Product Depth: 16.125 Inches
• Product Weight: 94 Pounds
• Shipping Weight: 109 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
