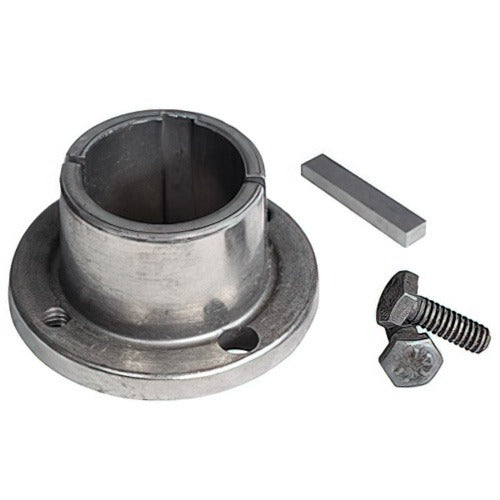

Daikin 804000 Split Taper Bushing 1-1/4 in Bore

Product Description

The DAIKIN 804000 is a split taper bushing designed for use in commercial HVAC and mechanical drive applications. Split taper bushings provide a secure, concentric mounting method for sheaves, sprockets, and pulleys onto shafts. This bushing features a 1-1/4 inch bore and is manufactured to OEM specifications, making it a direct-fit replacement for worn or damaged original components. Licensed HVAC mechanics and mechanical contractors are the typical installers for this type of drive component.

This bushing is used in belt-drive systems found in commercial air handling units, fan coil units, and rooftop equipment where positive shaft-to-sheave engagement is required. The split taper design allows the bushing to be installed and removed without damaging the shaft or sheave, simplifying routine maintenance on drive assemblies. This part replaces OEM part number 00804000.

Key Features

• Split taper design allows tool-assisted installation and clean removal without shaft damage
• 1-1/4 inch bore sized for standard shaft compatibility in commercial drive assemblies
• OEM replacement part manufactured to original equipment specifications
• Direct replacement for part number 00804000
• 1-year manufacturer warranty included

Compatibility

Designed as an OEM-style replacement for Daikin McQuay commercial HVAC drive assemblies. Replaces part number 00804000.

Installation Notes

Installation should be performed by a qualified HVAC mechanic or millwright. Before servicing any drive assembly, de-energize and lock out the unit per NFPA 70E and applicable local codes. Ensure the shaft and bushing bore are clean and free of burrs before seating the bushing. Do not over-tighten set screws beyond the sheave or bushing manufacturer guidance, and verify belt tension and sheave alignment after installation.
