Product Description

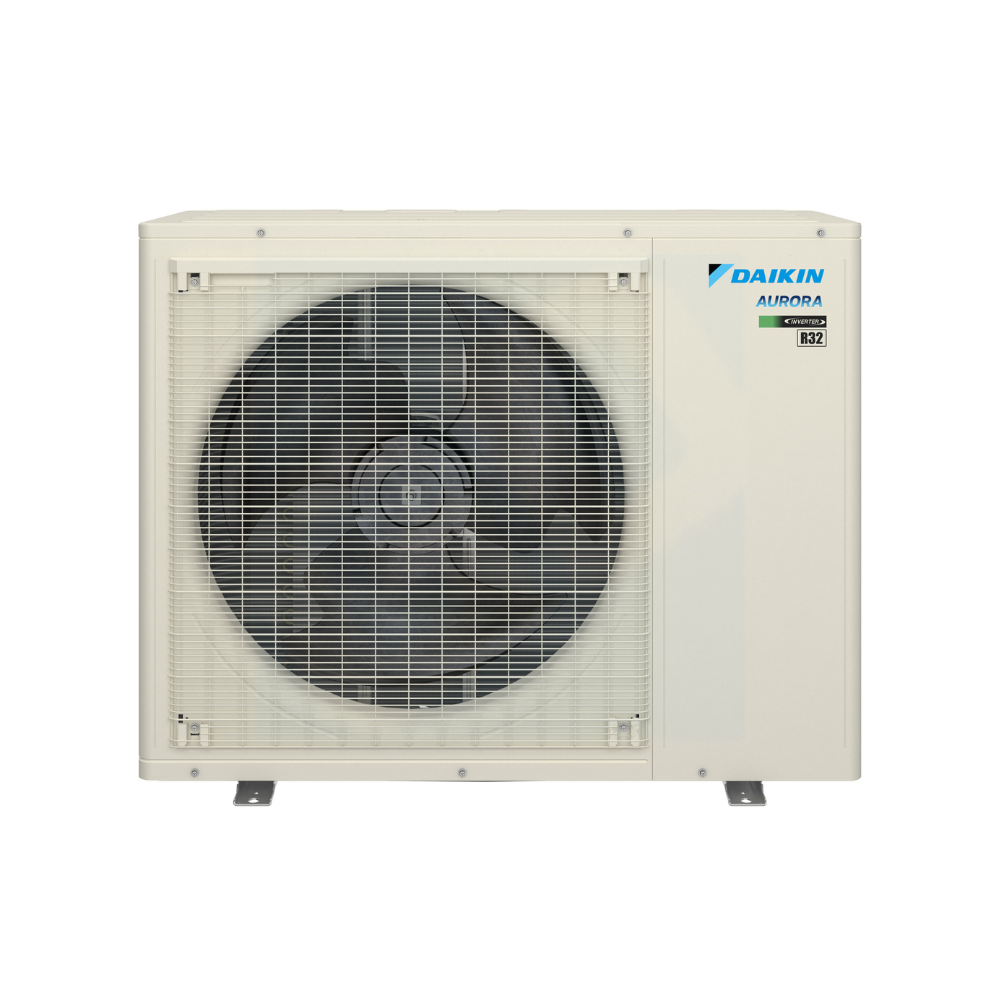

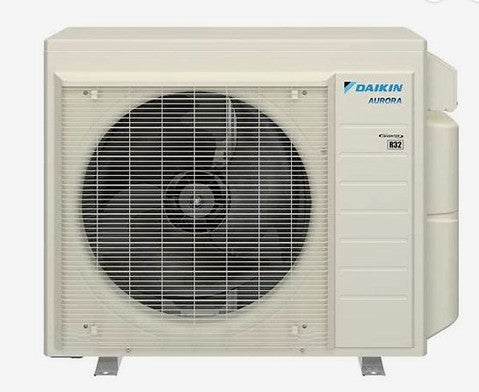

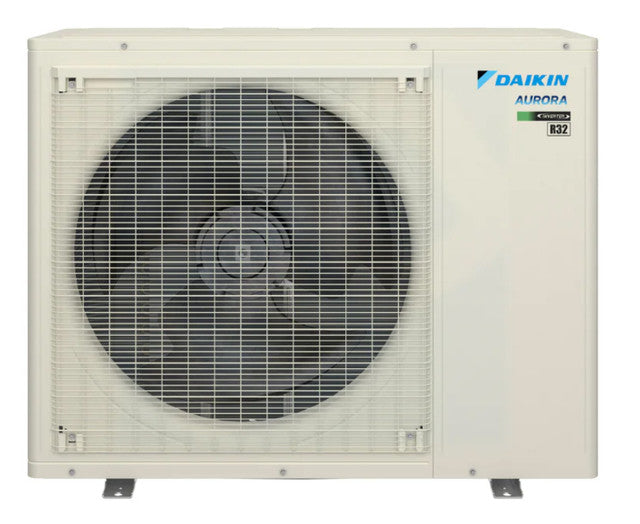

The Daikin 5MXT40AVJU9 is a 3.3-ton, 5-port R-32 AURORA multi-zone heat pump delivering 40,000 BTU cooling and heating. With SEER2 20.0 and HSPF2 9.5, it ensures efficient comfort. It features an enhanced heating operation range from -13°F up to 60°F and a cooling range from 14°F to 115°F. The unit also has anti-corrosion treatment of the outdoor heat exchanger.
- AURORA gives Enhanced Capacity in cooling and heating
- High-efficiency inverter driven swing compressor
- Anti-corrosion treatment of outdoor heat exchanger
Product Highlights
This Daikin multi-zone heat pump provides efficient cooling and heating for year-round comfort. It is designed for multi-room installations requiring independent temperature control.
Product Information
Standard Information
-
Brand: DAIKIN
-
Manufacturer Part Number: 5MXT40AVJU9
Technical Specifications
-
Unit Type: Outdoor Unit
-
Product Line: MXT Series
-
Operating Mode: Cooling & Heating
-
Low Ambient Heat: Yes
-
Number of Zones: 5
-
System Capacity: 40,000 BTU
-
Line Set Size: 1/4" x 3/8"
-
Outdoor Unit: 5MXT40AVJU9
-
Cooling Capacity: 40,000 BTU/hr
-
Heating Capacity: 40,000 BTU/hr
-
SEER2: 20.0
-
EER2: 11.7
-
HSPF2: 9.5
-
Heating Operating Range: -13 - 75 F
-
Cooling Operating Range: 14 - 115 F
-
Room Cooling/Heating Capacity: up to 1,900 sq ft
-
Noise Level Cooling: 55 dB(A)
-
Noise Level Heating: 57 dB(A)
-
Airflow Cooling CFM: 3,137
-
Airflow Heating CFM: 3,137
-
Electrical: 208/230V, 40 A
-
Max Height Difference: 49 ft
-
Brand: Daikin
-
Type: Heat Pump
-
Compressor Stage: Inverter
-
Electrical Phase(s): 1-Phase
-
Decibel Level (dB): 57
-
Refrigerant Type: R-32
-
Outdoor Unit Height (Inches): 34.25
-
Outdoor Unit Width (Inches): 43.3125
-
Outdoor Unit Depth (Inches): 18.125
-
Heating Btu: 40,000
-
Amp(s): 40
-
Min. Operating Temp. (Degrees Farenheit): -13
-
Category: Mini Split System
-
HSPF: 9.5
-
Maximum Number of Indoor Units: 5
-
Max. Connected Outdoor BTU Capacity: 54000
-
Energy Star: Yes
-
Outdoor Unit Noise Level (dBA): 55
-
Dehumidification (pts/hr): NA
-
Includes Heat Pump: Yes
-
Cooling BTUs (Non-Ducted): 40000
-
COP (Non-Ducted): NA
-
Heat Pump BTUs (Non-Ducted): 40000
-
Inverter Technology: Yes
-
Connectivity: WiFi Adapter Required
-
Line Set Liquid Line: 1/4" (5)
-
Line Set Suction Line: 3/8" (1); 1/2" (2); 5/8" (2)
-
Pipe Length (No Addl Refr Req): 131.25
-
Max. Pipe Length (ft.) Per Zone: 82 (Per Zone)
-
Max. Height Difference (Indoor / Outdoor) (ft.): 49.25
-
Ambient Temperature Range - Cooling: 14°F - 115°F
-
Ambient Temperature Range - Heating: -13°F - 60°F
-
Min. Outdoor Temp for Heat °F: -13
-
Width (in.): 43.313
-
Depth (in.): 18.125
-
Height (in.): 34.25
-
Voltage: 208-230V
-
Amps: 37.5
-
Circuit Breaker Size (Amps): 40
-
Sound Level: Cooling 55 dBA / Heating 57 dBA
