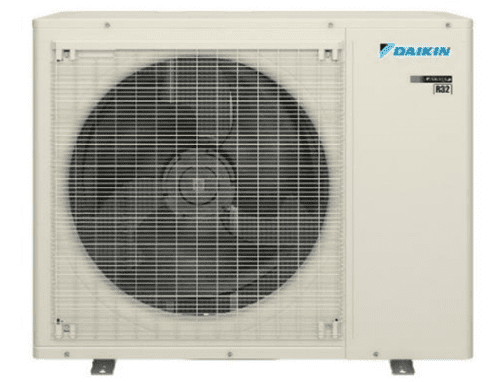

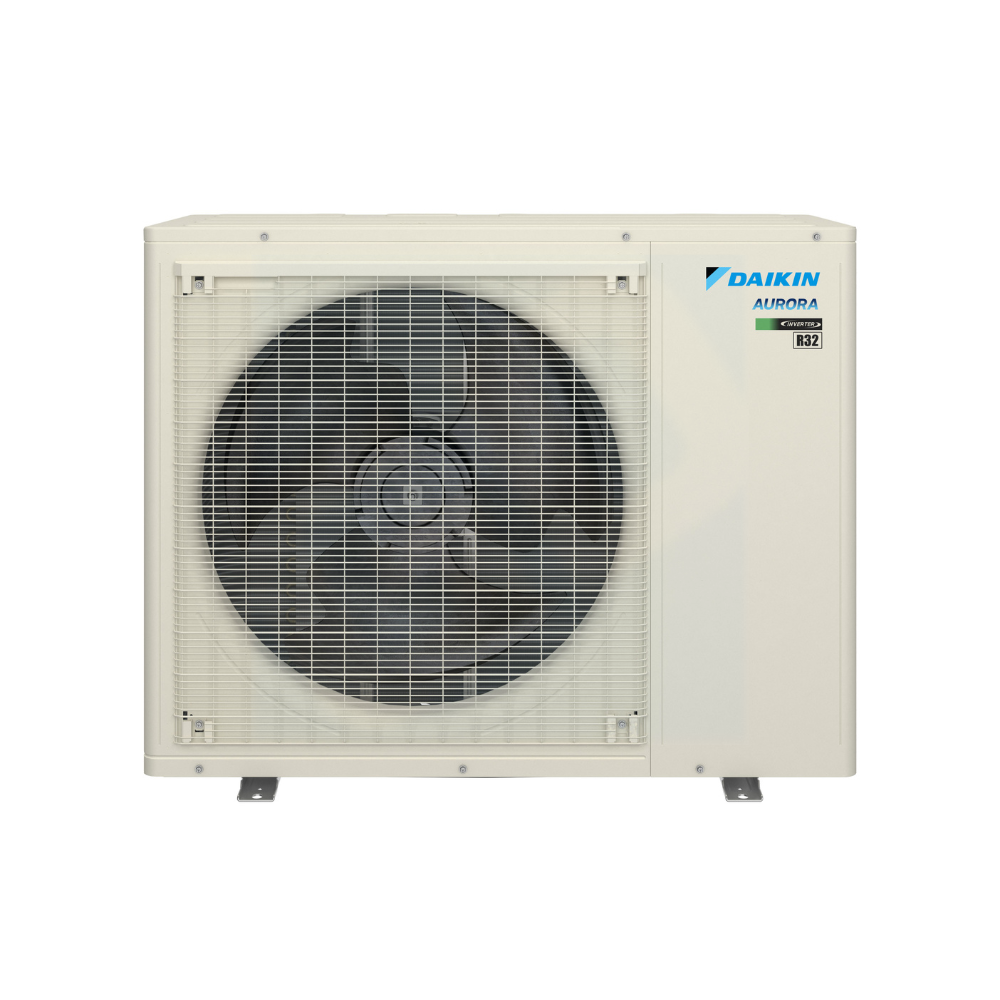

Daikin 5MXM48AVJU9 48,000 BTU 5 Zone Multi-Zone Heat Pump - R32

Product Description

The Daikin 5MXM48AVJU9 is a 4-ton, 5-port R-32 multi-zone heat pump delivering 46,000 BTU cooling and 48,500 BTU heating. With SEER2 20.0 and HSPF2 9.5, this unit features quiet inverter operation and eco-friendly R-32 refrigerant. Designed for up to five zones, it provides efficient and flexible comfort year-round. It is suitable for rooms up to 2,000 sq ft.

• Connect 2 to 5 indoor units with a single outdoor unit
• High-efficiency inverter driven swing compressor
• Anti-corrosion treatment of outdoor heat exchanger

Product Highlights

This Daikin multi-zone heat pump offers efficient cooling and heating with multiple indoor unit style options and long piping lengths for flexible installation.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: 5MXM48AVJU9

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: MXM Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: No
• Number of Zones: Multi
• System Capacity: 48,000 BTU
• Cooling Capacity: up to 46,000 BTU
• Heating Capacity: up to 48,500 BTU
• SEER2: 20.0
• EER2: 10.0
• HSPF2: 9.5
• Heating Operating Range: 5 - 75 F
• Cooling Operating Range: 14 - 115 F
• Room Cooling/Heating Capacity: up to 2,000 sq ft
• Noise Level Cooling: 55 dB(A)
• Noise Level Heating: 57 dB(A)
• Airflow Cooling CFM: 3,137
• Airflow Heating CFM: 3,137
• Electrical: 208/230V, 40 A
• Max Line Set Length: 262 ft
• Max Height Difference: 49 ft
• Refrigerant: R-32
• Nominal Tons: 4 Ton
• Voltage Rating: 208/230 V
• Amperage Rating: 27 A
• Refrigerant Type: R-32
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Compressor Type: Inverter Variable Speed
• CFM Rating: 3,137
• Liquid Line Size: 1/4 in
• 5-Port: Yes
