Product Description

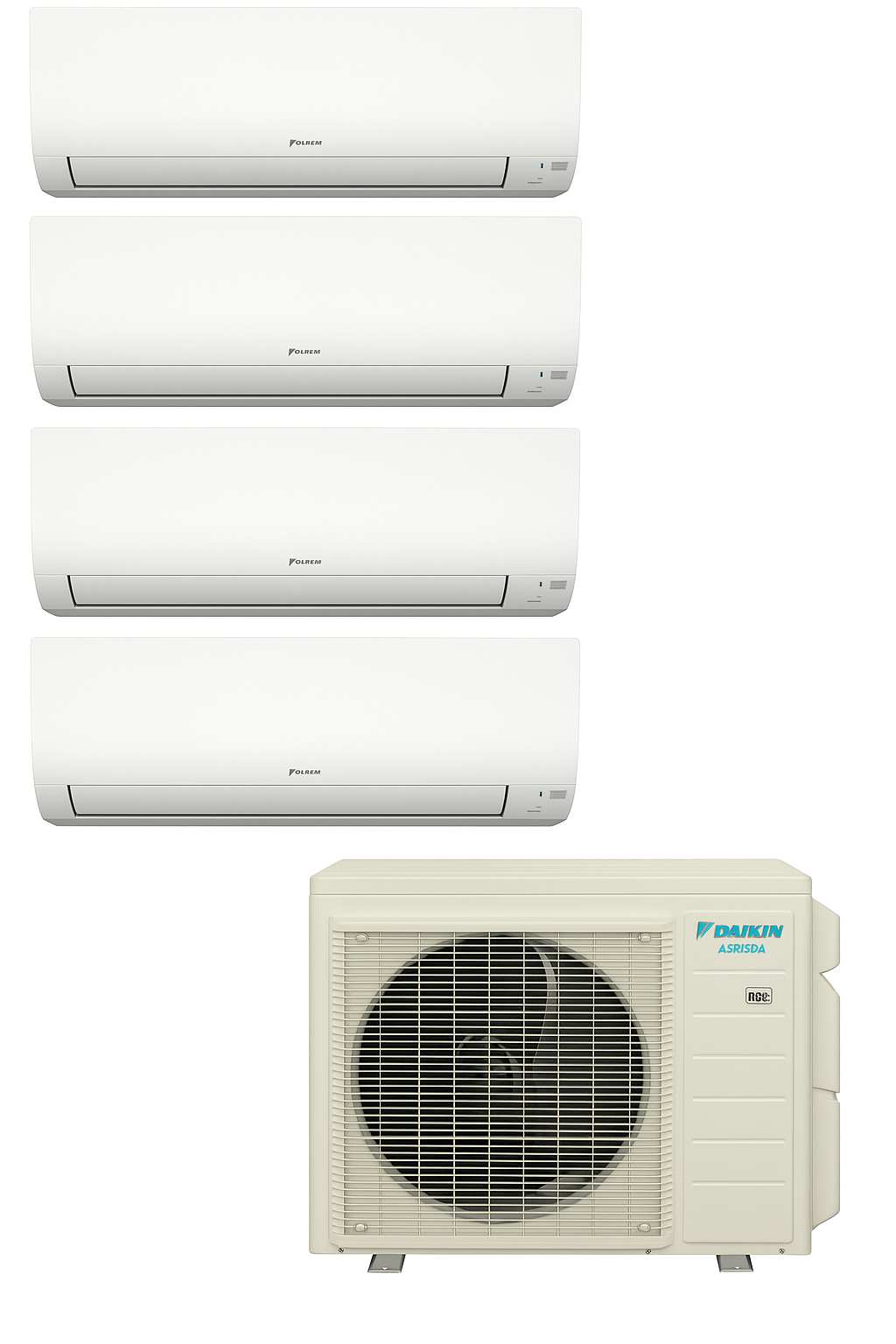

Upgrade your home with this energy-efficient, high-performance ductless mini-split system and air handler combo. Each indoor unit features independent temperature control, giving you personalized comfort in every room. Ideal for homes with or without existing ductwork, this system brings reliable year-round comfort, lower energy bills, and minimal maintenance
Product Description

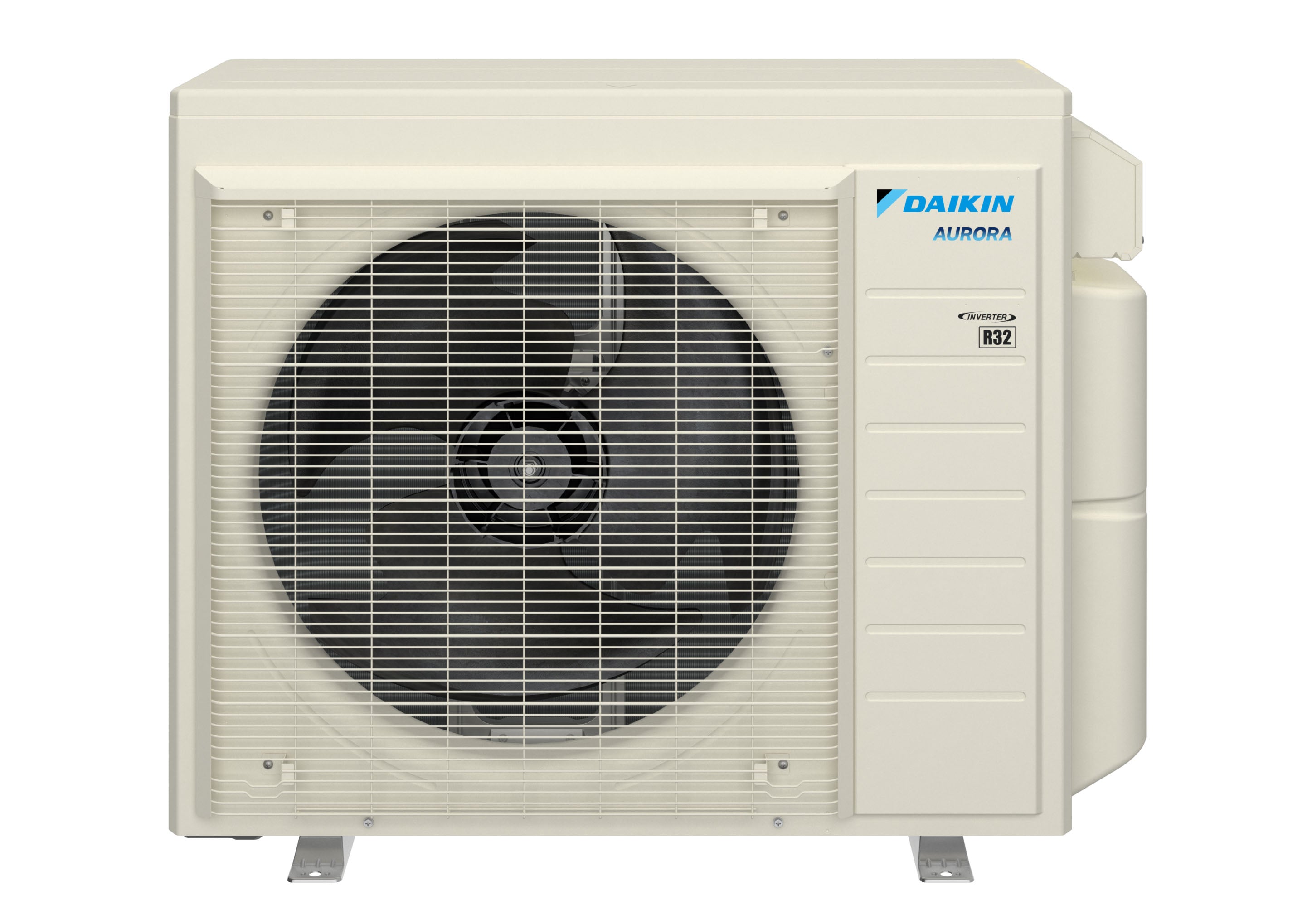

The Daikin 4MXM36AVJU9 is a multi-split heat pump designed for outdoor use. This unit has a 3.0-ton capacity and a four-port configuration, making it suitable for various residential applications. The unit operates with R-32 refrigerant, enhancing its efficiency and eco-friendliness.
- High-efficiency inverter driven swing compressor
- Cooling operation range from fourteen degrees Fahrenheit to one hundred fourteen point eight degrees Fahrenheit
- Heating operation range from five degrees Fahrenheit to fifty-nine point nine degrees Fahrenheit
Product Highlights
This heat pump is designed for reliability and efficiency in residential single-family homes.
Product Information
Standard Information
-
Brand: Daikin
-
Model Number: 4MXM36AVJU9
Technical Specifications
-
Product Type: Multi-Split Heat Pump
-
Cooling Capacity: 34200 Btu/H
-
Heating Capacity: 34600 Btu/H
-
Power Supply: 208-230 V
-
Rated Load Amps: 18.5 A
-
Minimum Circuit Amps: 24.1 A
-
Weight: 142 lb
-
Dimensions: 12-5/8 in (D) x 29-1/2 in (H) x 34-1/4 in (W)
Product Description

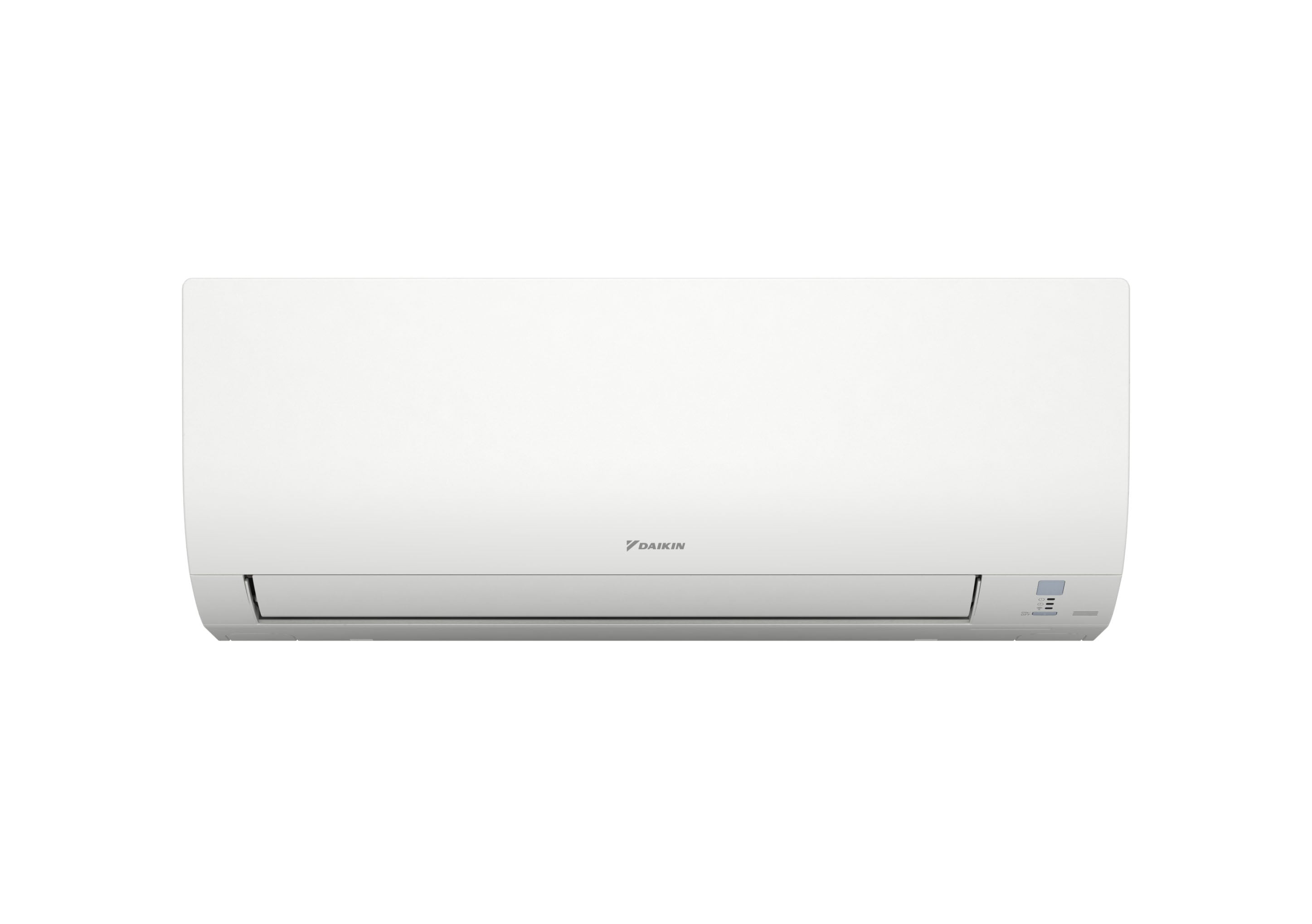

The Daikin CTXV07AVJU9 is a multi-split fan coil designed for indoor cooling. This unit is suitable for residential use, specifically in single-family homes. It is a wall-mounted option that helps provide efficient, reliable cooling when needed.
- Cooling only functionality with high wall mount design
- Features a 0.5 ton capacity
- Offers a 12-year limited parts warranty with registration
Product Highlights
The Daikin CTXV07AVJU9 is designed for optimal air flow and comfort in smaller spaces. The unit operates quietly and efficiently, offering low sound levels for both cooling and heating modes.
Product Information
Standard Information
-
Brand: Daikin
-
System Family: Multi-Split
Technical Specifications
-
Weight: 19 lb
-
Dimensions: 30-5/16 in (Width) x 11-1/4 in (Height) x 8-3/4 in (Depth)
-
Air Flow Rate (High): 332 ft³/min
-
Sound Pressure (High): 40 dBA
-
Refrigerant Type: R-32
-
Condensate Drain Outlet: 5/8 in
-
Pipe Size Liquid: 1/4 in
Product Description
The Daikin FTXV09AVJU9 is a multi-split fan coil indoor unit designed for efficient cooling. This model is suitable for residential single-family applications and operates using R-32 refrigerant. It features a wall-mounted installation configuration for versatility and ease of placement.
- Quiet operation for comfortable indoor environments
- 12-year limited warranty on parts and compressor for peace of mind
- Air flow rates include 381 ft³/min for cooling and 385 ft³/min for heating
Product Highlights
This unit provides reliable cooling performance and is compliant with various energy efficiency standards.
Product Information
Standard Information
-
Brand: Daikin
-
Country of Origin: Mexico
Technical Specifications
-
Dimensions (Unit Depth): 8-3/4 inches
-
Dimensions (Unit Height): 11-1/4 inches
-
Dimensions (Unit Width): 30-5/16 inches
-
Weight (Unit): 19 lb
-
Tonnage: 0.75
-
Refrigerant Type: R-32
-
Noise Level (High - Cooling): 43 dBA
-
Noise Level (Low - Heating): 28 dBA
Product Description
The Daikin FTXV18AVJU9 is a multi-split fan coil designed for indoor use. It operates efficiently as a cooling-only system, making it suitable for residential single-family applications. This wall-mounted unit features a compact design that accommodates limited spaces, providing effective cooling performance with a 1.5 ton capacity.
- Efficient R-32 refrigerant to enhance cooling performance
- Quiet operation with sound pressure levels as low as 33 dBA
- Includes a 12-year limited warranty for parts and compressor
Product Highlights
This unit is ideal for homeowners looking to maintain comfortable indoor temperatures with minimal noise disruption.
Product Information
Standard Information
-
Brand: Daikin
-
Product Category: Ductless Mini-Splits
-
Installation Type: Wall Mounted
-
Country of Origin: Mexico
Technical Specifications
-
Dimensions (Width): 39 inches
-
Dimensions (Height): 11-5/8 inches
-
Dimensions (Depth): 10-3/8 inches
-
Weight: 27 lb
-
Air Flow Rate (High): 565 ft³/min
-
Air Flow Rate (Low): 378 ft³/min
-
Pipe Size Liquid: 1/4 inches
-
Pipe Size Gas: 1/2 inches
-
Refrigerant Type: R-32
