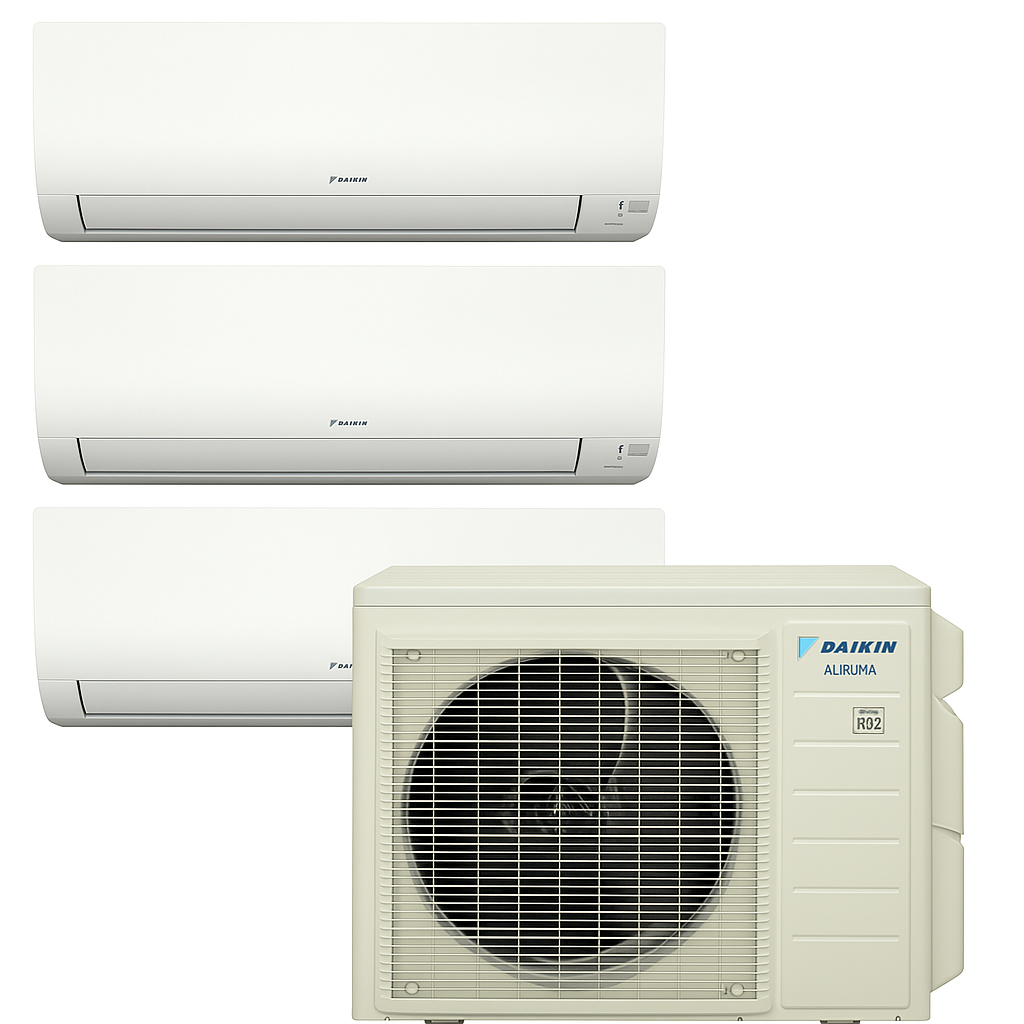

Daikin 4MXM36AVJU9 36,000 BTU 3-Zone Multi-Port Heat Pump - 7k 9k 24k - R32

Product Description

Upgrade your home with this energy-efficient, high-performance ductless mini-split system and air handler combo. Each indoor unit features independent temperature control, giving you personalized comfort in every room. Ideal for homes with or without existing ductwork, this system brings reliable year-round comfort, lower energy bills, and minimal maintenance

Product Description

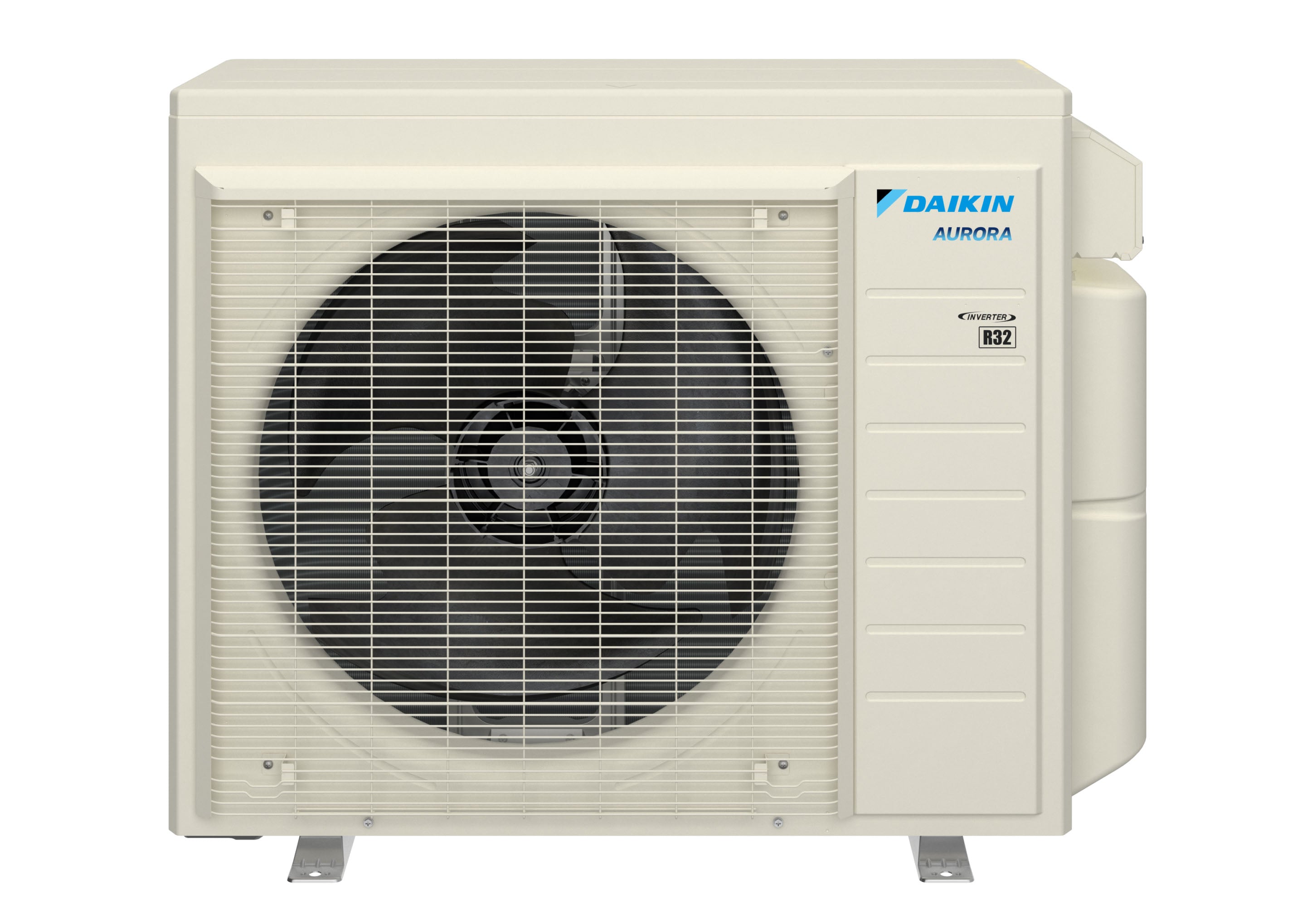

The Daikin 4MXM36AVJU9 is a multi-split heat pump designed for outdoor use. This unit has a 3.0-ton capacity and a four-port configuration, making it suitable for various residential applications. The unit operates with R-32 refrigerant, enhancing its efficiency and eco-friendliness.

• High-efficiency inverter driven swing compressor
• Cooling operation range from fourteen degrees Fahrenheit to one hundred fourteen point eight degrees Fahrenheit
• Heating operation range from five degrees Fahrenheit to fifty-nine point nine degrees Fahrenheit

Product Highlights

This heat pump is designed for reliability and efficiency in residential single-family homes.

Product Information

Standard Information

• Brand: Daikin
• Model Number: 4MXM36AVJU9

Technical Specifications

• Product Type: Multi-Split Heat Pump
• Cooling Capacity: 34200 Btu/H
• Heating Capacity: 34600 Btu/H
• Power Supply: 208-230 V
• Rated Load Amps: 18.5 A
• Minimum Circuit Amps: 24.1 A
• Weight: 142 lb
• Dimensions: 12-5/8 in (D) x 29-1/2 in (H) x 34-1/4 in (W)

Product Description

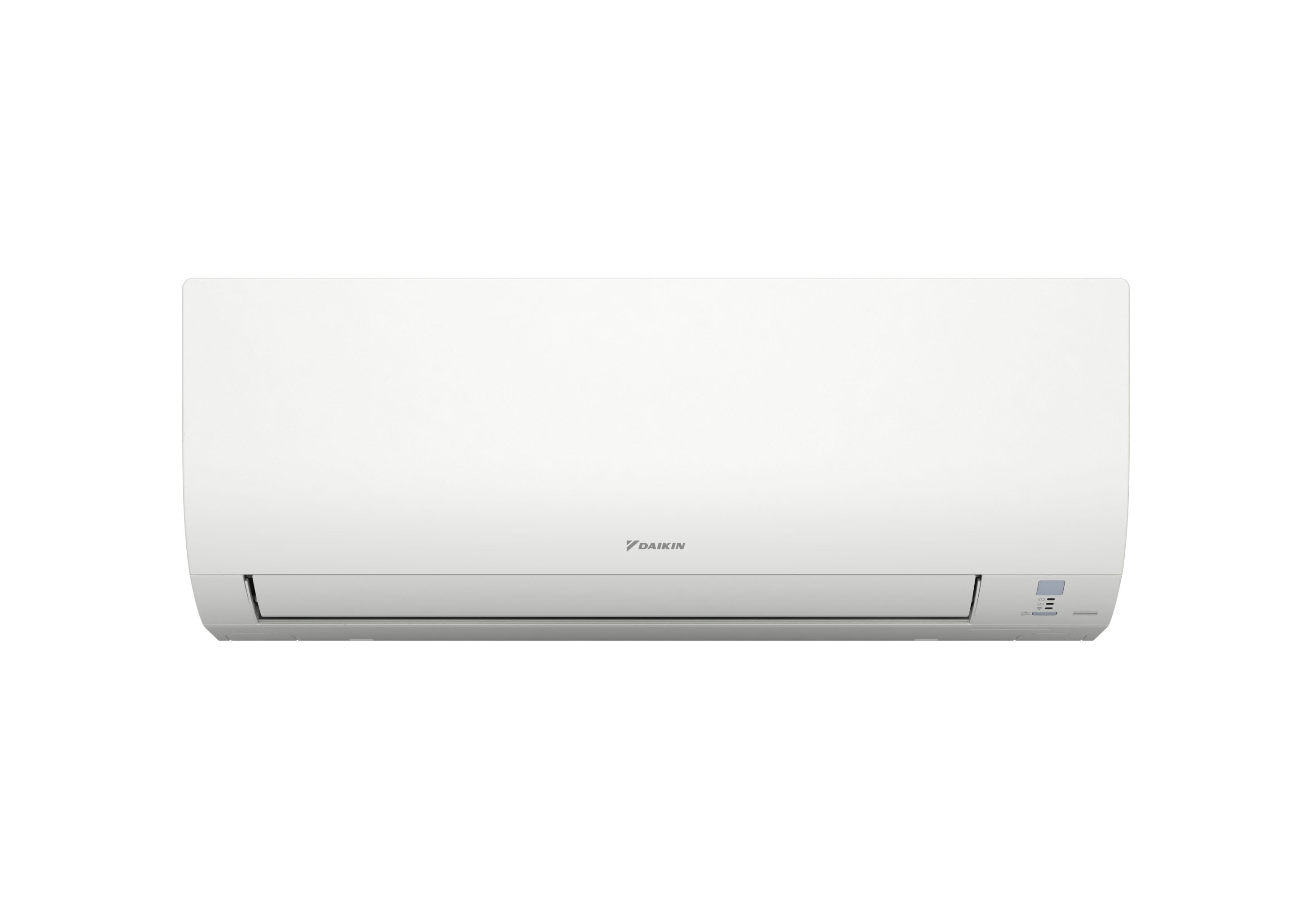

The Daikin CTXV07AVJU9 is a multi-split fan coil designed for indoor cooling. This unit is suitable for residential use, specifically in single-family homes. It is a wall-mounted option that helps provide efficient, reliable cooling when needed.

• Cooling only functionality with high wall mount design
• Features a 0.5 ton capacity
• Offers a 12-year limited parts warranty with registration

Product Highlights

The Daikin CTXV07AVJU9 is designed for optimal air flow and comfort in smaller spaces. The unit operates quietly and efficiently, offering low sound levels for both cooling and heating modes.

Product Information

Standard Information

• Brand: Daikin
• System Family: Multi-Split

Technical Specifications

• Weight: 19 lb
• Dimensions: 30-5/16 in (Width) x 11-1/4 in (Height) x 8-3/4 in (Depth)
• Air Flow Rate (High): 332 ft³/min
• Sound Pressure (High): 40 dBA
• Refrigerant Type: R-32
• Condensate Drain Outlet: 5/8 in
• Pipe Size Liquid: 1/4 in

Product Description

The Daikin FTXV09AVJU9 is a multi-split fan coil indoor unit designed for efficient cooling. This model is suitable for residential single-family applications and operates using R-32 refrigerant. It features a wall-mounted installation configuration for versatility and ease of placement.

• Quiet operation for comfortable indoor environments
• 12-year limited warranty on parts and compressor for peace of mind
• Air flow rates include 381 ft³/min for cooling and 385 ft³/min for heating

Product Highlights

This unit provides reliable cooling performance and is compliant with various energy efficiency standards.

Product Information

Standard Information

• Brand: Daikin
• Country of Origin: Mexico

Technical Specifications

• Dimensions (Unit Depth): 8-3/4 inches
• Dimensions (Unit Height): 11-1/4 inches
• Dimensions (Unit Width): 30-5/16 inches
• Weight (Unit): 19 lb
• Tonnage: 0.75
• Refrigerant Type: R-32
• Noise Level (High - Cooling): 43 dBA
• Noise Level (Low - Heating): 28 dBA

Product Description

Daikin's FTXV24AVJU9 is a 2.0 Ton wall-mounted indoor unit designed for residential use. This mini-split fan coil unit offers efficient cooling with quiet operation, making it ideal for various living spaces. It is part of the Multi-Split system family, specifically tailored for effective air control.

• Wall-mounted installation type
• Features a twelve-year limited warranty for parts and compressor
• Utilizes R-32 refrigerant for environmental efficiency

Product Highlights

This unit provides significant air flow, with a high cooling capacity, ensuring consistent comfort in your home. The unit operates with minimal sound, contributing to a peaceful environment.

Product Information

Standard Information

• Brand: Daikin
• Product Type: Equipment

Technical Specifications

• Model Number: FTXV24AVJU9
• Dimensions (Width x Height x Depth): 39 inches x 11.625 inches x 10.375 inches
• Weight: 27 lb
• Air Flow Rate (High): 629 ft³/min (Cooling)
• Sound Pressure (High): 52 dBA (Cooling)
• Refrigerant Type: R-32
• Condensate Drain Outlet: 5/8 inches
