Daikin Outdoor Unit 4MXM36AVJU9 36,000 BTU 2-Zone Multi-Port Heat Pump - 9k 9k - R32

Product Description

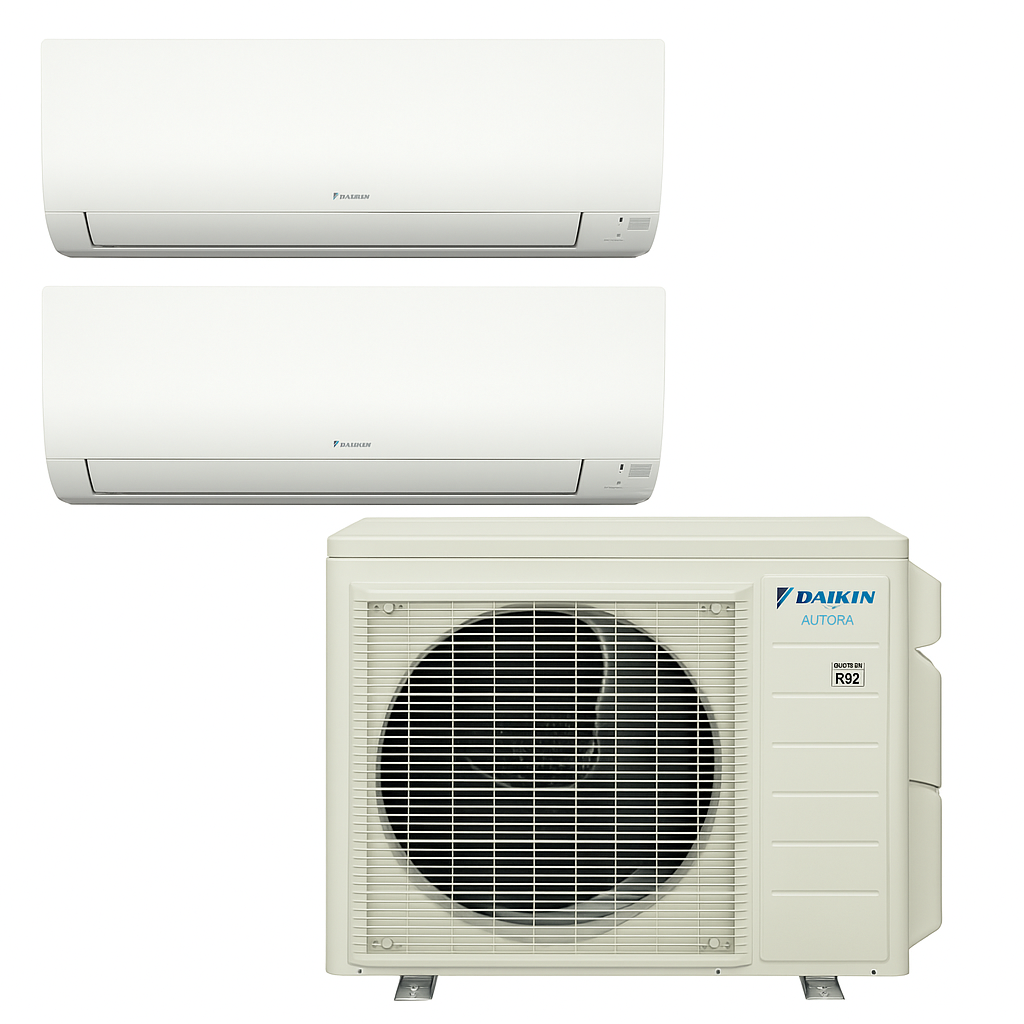

Upgrade your home with this energy-efficient, high-performance ductless mini-split system and air handler combo. Each indoor unit features independent temperature control, giving you personalized comfort in every room. Ideal for homes with or without existing ductwork, this system brings reliable year-round comfort, lower energy bills, and minimal maintenance

Product Description

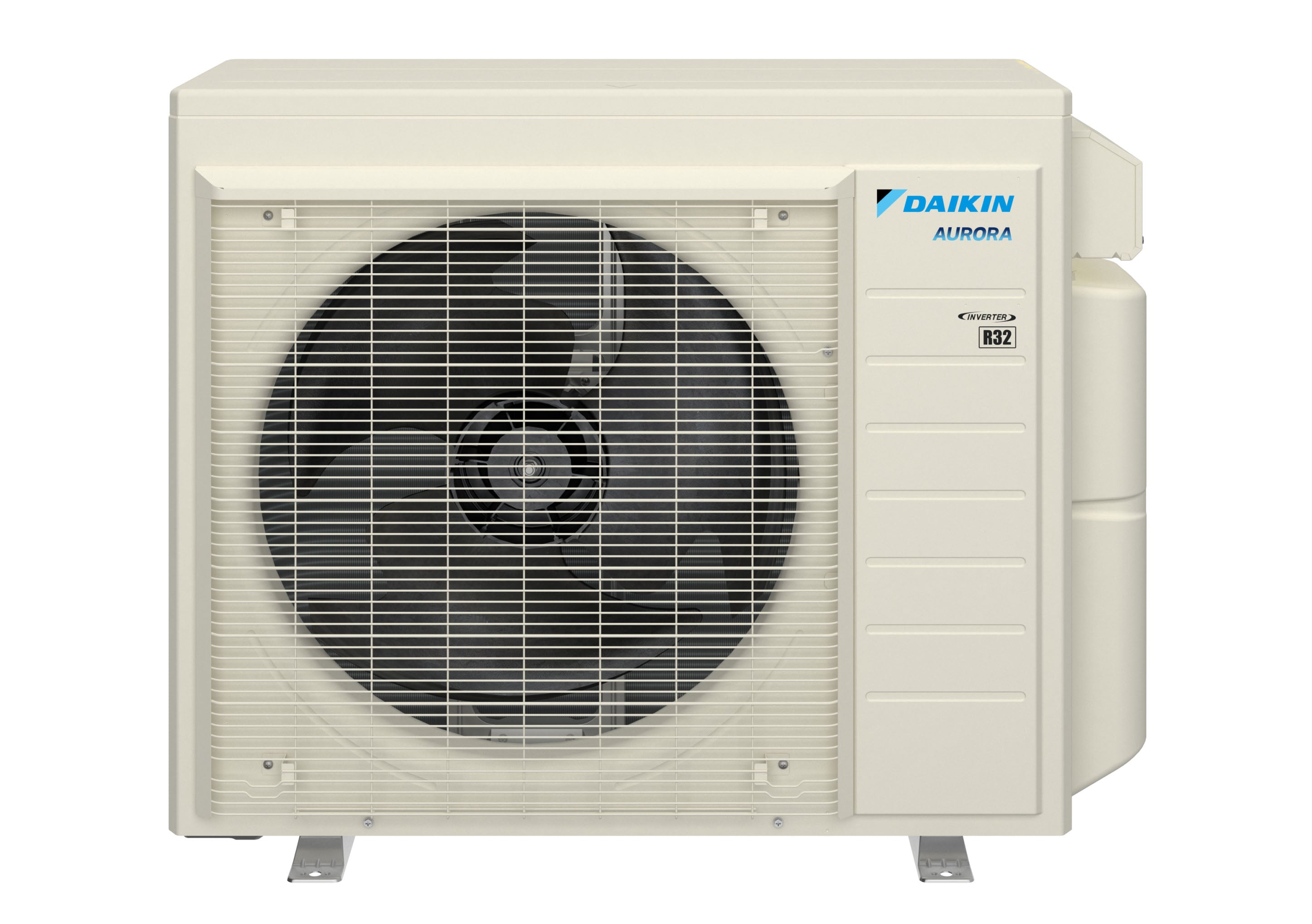

The Daikin 4MXM36AVJU9 is a multi-split heat pump designed for outdoor use. This unit has a 3.0-ton capacity and a four-port configuration, making it suitable for various residential applications. The unit operates with R-32 refrigerant, enhancing its efficiency and eco-friendliness.

• High-efficiency inverter driven swing compressor
• Cooling operation range from fourteen degrees Fahrenheit to one hundred fourteen point eight degrees Fahrenheit
• Heating operation range from five degrees Fahrenheit to fifty-nine point nine degrees Fahrenheit

Product Highlights

This heat pump is designed for reliability and efficiency in residential single-family homes.

Product Information

Standard Information

• Brand: Daikin
• Model Number: 4MXM36AVJU9

Technical Specifications

• Product Type: Multi-Split Heat Pump
• Cooling Capacity: 34200 Btu/H
• Heating Capacity: 34600 Btu/H
• Power Supply: 208-230 V
• Rated Load Amps: 18.5 A
• Minimum Circuit Amps: 24.1 A
• Weight: 142 lb
• Dimensions: 12-5/8 in (D) x 29-1/2 in (H) x 34-1/4 in (W)

Product Description

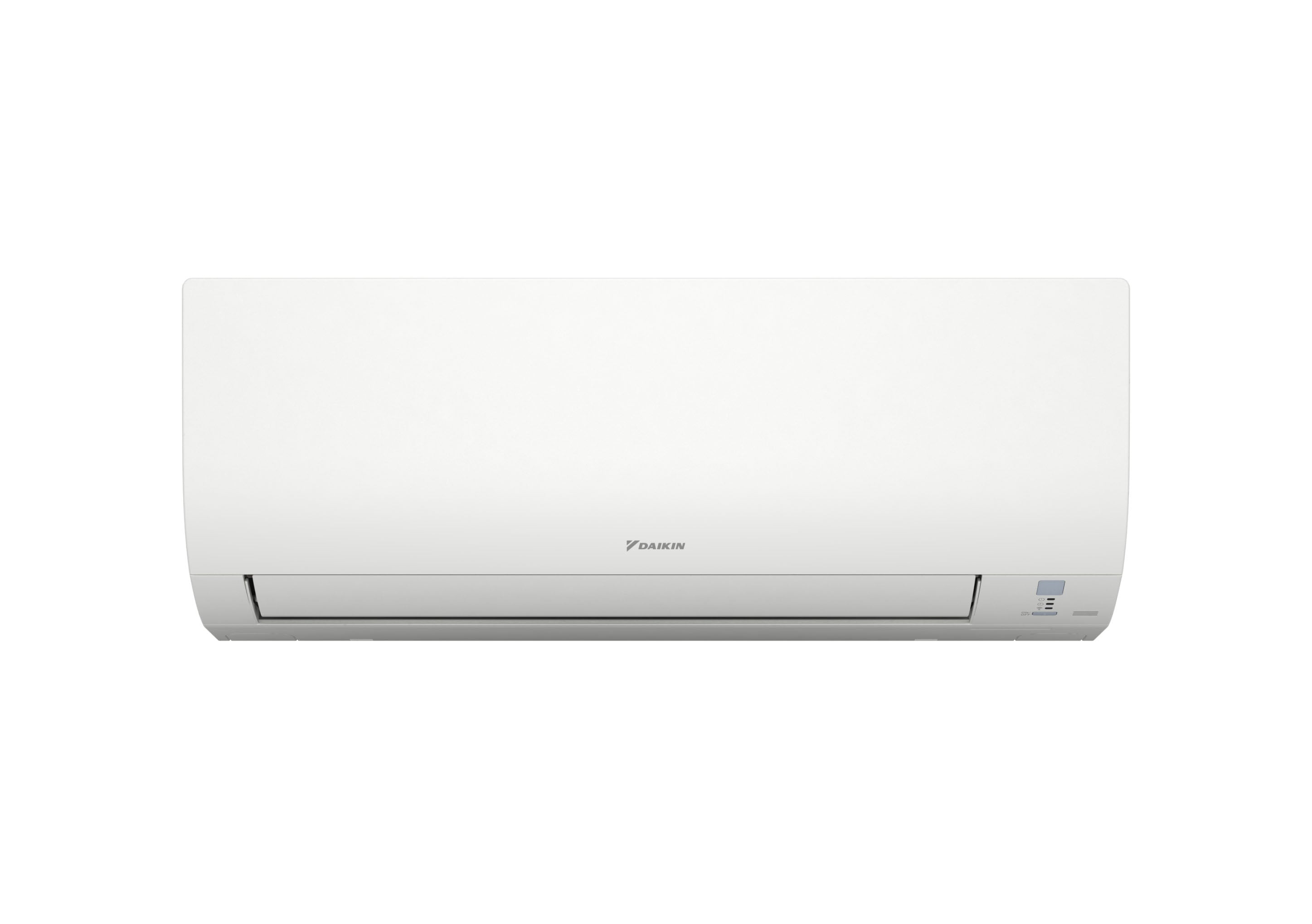

The Daikin FTXV09AVJU9 is a multi-split fan coil indoor unit designed for efficient cooling. This model is suitable for residential single-family applications and operates using R-32 refrigerant. It features a wall-mounted installation configuration for versatility and ease of placement.

• Quiet operation for comfortable indoor environments
• 12-year limited warranty on parts and compressor for peace of mind
• Air flow rates include 381 ft³/min for cooling and 385 ft³/min for heating

Product Highlights

This unit provides reliable cooling performance and is compliant with various energy efficiency standards.

Product Information

Standard Information

• Brand: Daikin
• Country of Origin: Mexico

Technical Specifications

• Dimensions (Unit Depth): 8-3/4 inches
• Dimensions (Unit Height): 11-1/4 inches
• Dimensions (Unit Width): 30-5/16 inches
• Weight (Unit): 19 lb
• Tonnage: 0.75
• Refrigerant Type: R-32
• Noise Level (High - Cooling): 43 dBA
• Noise Level (Low - Heating): 28 dBA
