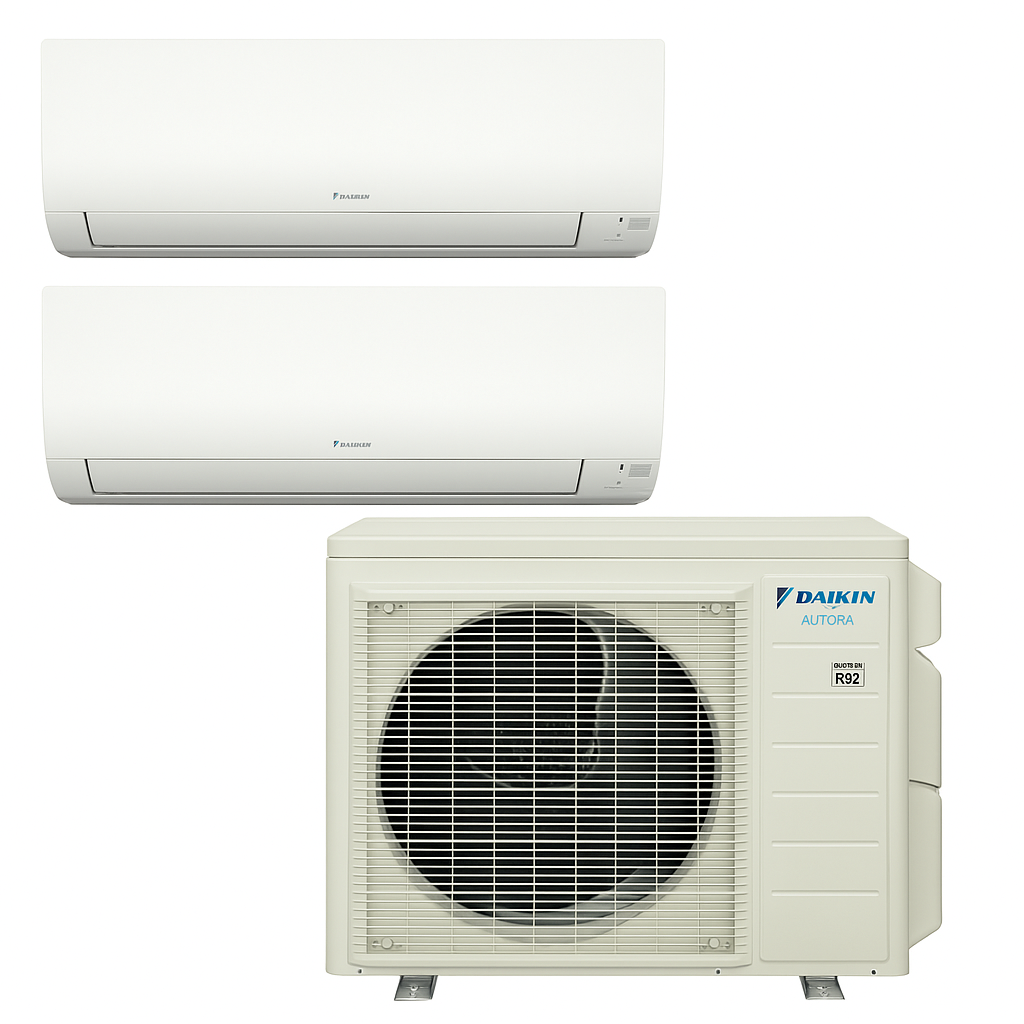

Daikin Outdoor Unit 4MXM36AVJU9 36,000 BTU 2-Zone Multi-Port Heat Pump - 18k 18k - R32

Product Description

Upgrade your home with this energy-efficient, high-performance ductless mini-split system and air handler combo. Each indoor unit features independent temperature control, giving you personalized comfort in every room. Ideal for homes with or without existing ductwork, this system brings reliable year-round comfort, lower energy bills, and minimal maintenance

Product Description

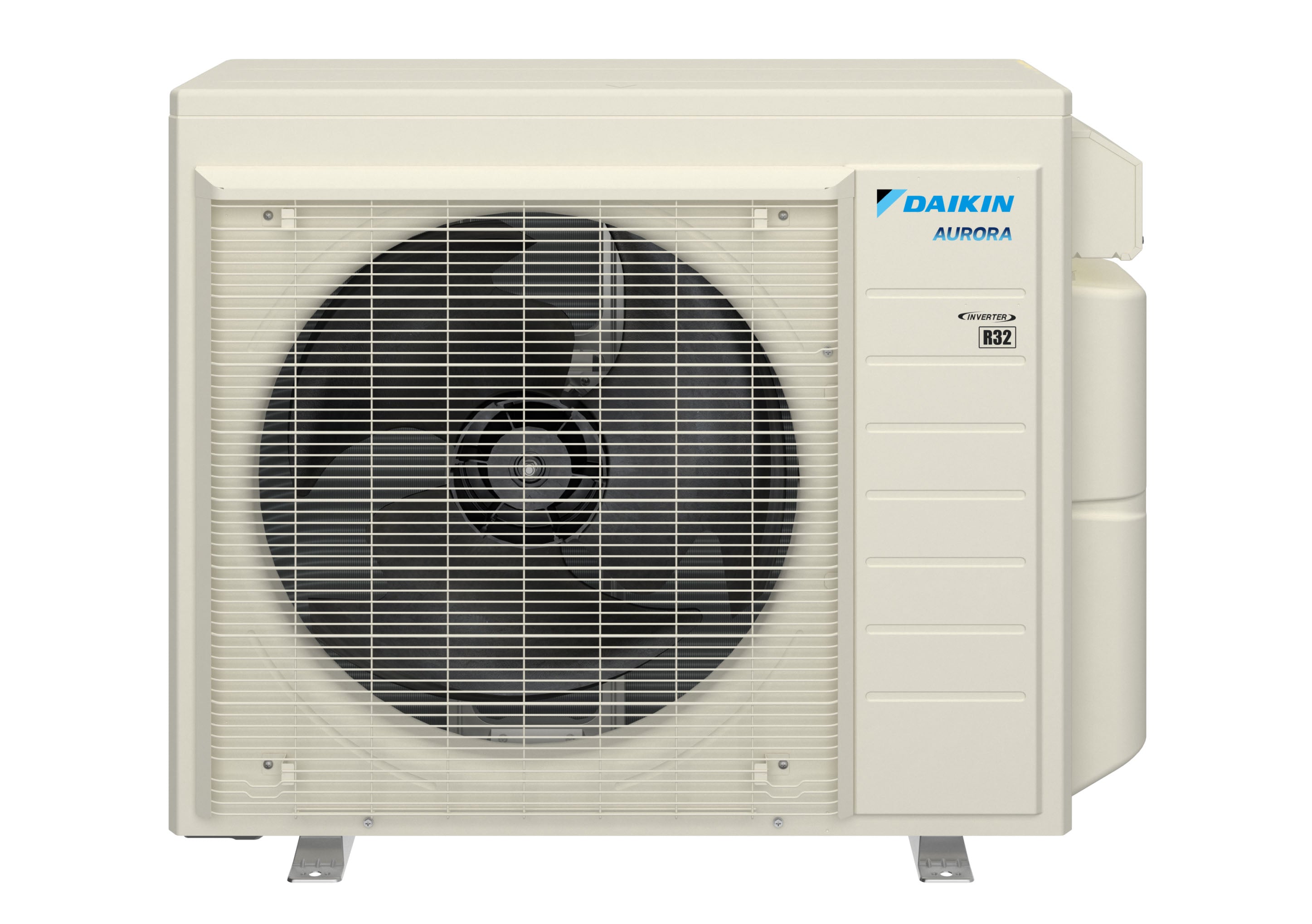

The Daikin 4MXM36AVJU9 is a multi-split heat pump designed for outdoor use. This unit has a 3.0-ton capacity and a four-port configuration, making it suitable for various residential applications. The unit operates with R-32 refrigerant, enhancing its efficiency and eco-friendliness.

• High-efficiency inverter driven swing compressor
• Cooling operation range from fourteen degrees Fahrenheit to one hundred fourteen point eight degrees Fahrenheit
• Heating operation range from five degrees Fahrenheit to fifty-nine point nine degrees Fahrenheit

Product Highlights

This heat pump is designed for reliability and efficiency in residential single-family homes.

Product Information

Standard Information

• Brand: Daikin
• Model Number: 4MXM36AVJU9

Technical Specifications

• Product Type: Multi-Split Heat Pump
• Cooling Capacity: 34200 Btu/H
• Heating Capacity: 34600 Btu/H
• Power Supply: 208-230 V
• Rated Load Amps: 18.5 A
• Minimum Circuit Amps: 24.1 A
• Weight: 142 lb
• Dimensions: 12-5/8 in (D) x 29-1/2 in (H) x 34-1/4 in (W)

Product Description

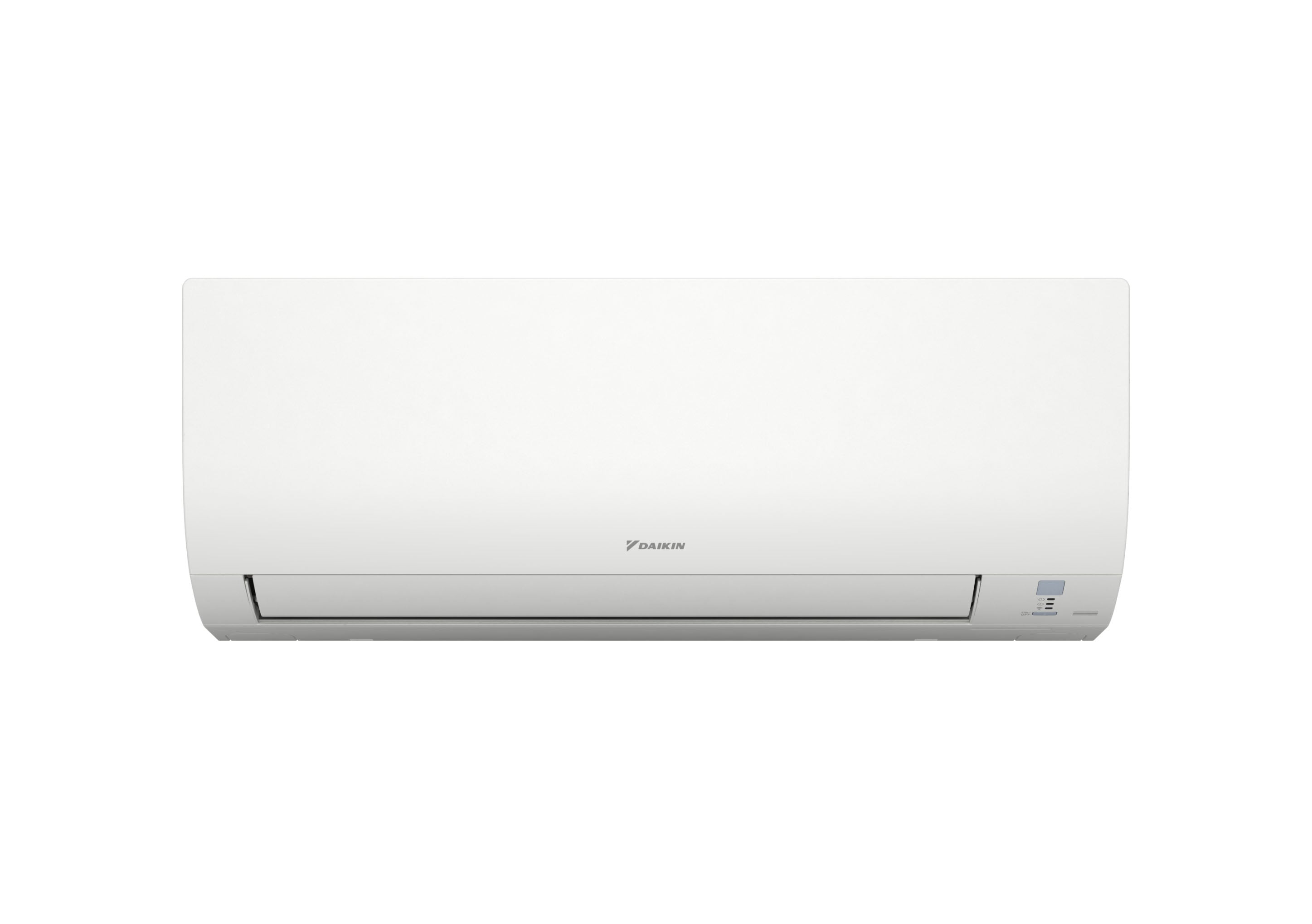

The Daikin FTXV18AVJU9 is a multi-split fan coil designed for indoor use. It operates efficiently as a cooling-only system, making it suitable for residential single-family applications. This wall-mounted unit features a compact design that accommodates limited spaces, providing effective cooling performance with a 1.5 ton capacity.

• Efficient R-32 refrigerant to enhance cooling performance
• Quiet operation with sound pressure levels as low as 33 dBA
• Includes a 12-year limited warranty for parts and compressor

Product Highlights

This unit is ideal for homeowners looking to maintain comfortable indoor temperatures with minimal noise disruption.

Product Information

Standard Information

• Brand: Daikin
• Product Category: Ductless Mini-Splits
• Installation Type: Wall Mounted
• Country of Origin: Mexico

Technical Specifications

• Dimensions (Width): 39 inches
• Dimensions (Height): 11-5/8 inches
• Dimensions (Depth): 10-3/8 inches
• Weight: 27 lb
• Air Flow Rate (High): 565 ft³/min
• Air Flow Rate (Low): 378 ft³/min
• Pipe Size Liquid: 1/4 inches
• Pipe Size Gas: 1/2 inches
• Refrigerant Type: R-32
