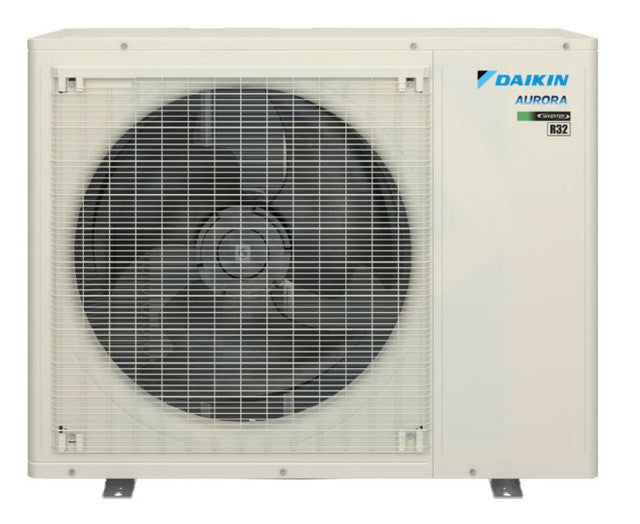

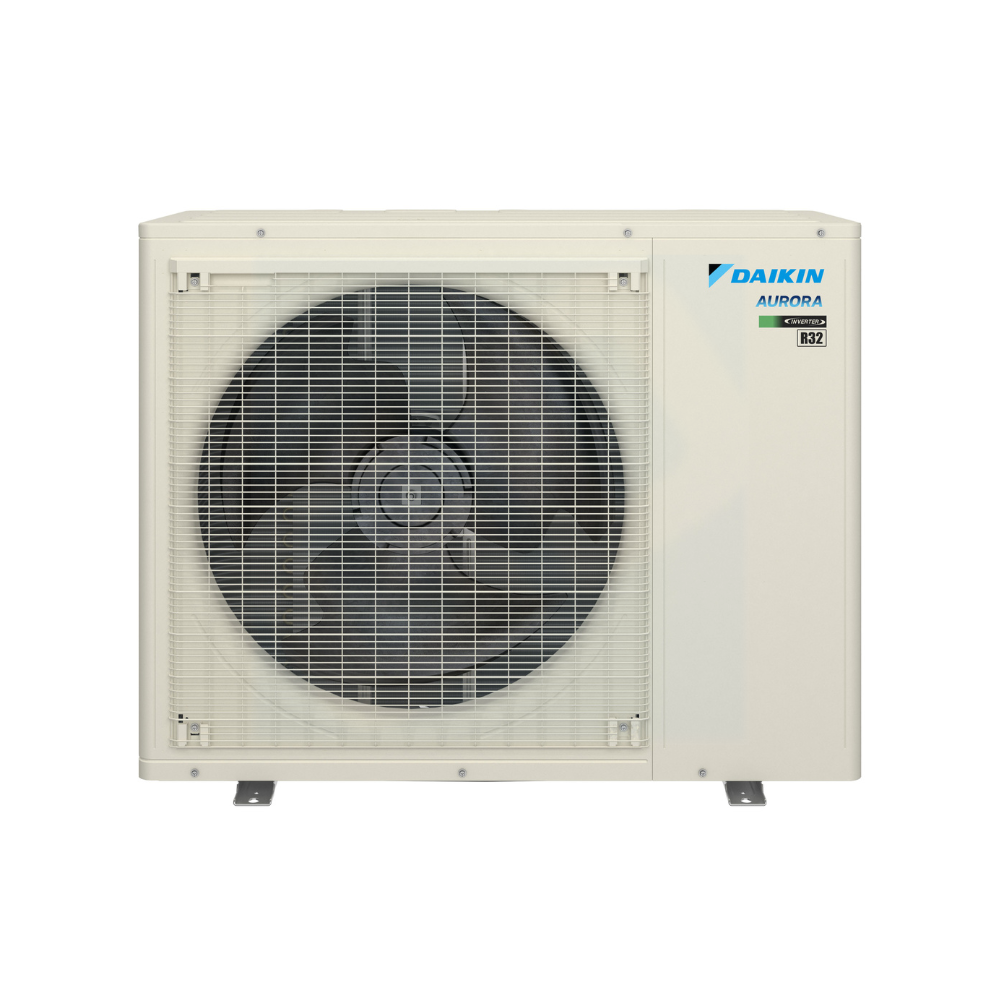

Daikin 3MXT24AVJU9 24,000 BTU 3 Zone Aurora Low Temp Multi-Zone Heat Pump- R32

Product Description

The Daikin 3MXT24AVJU9 is a 2-ton, 3-port R-32 multi-zone heat pump delivering 24,000 BTU cooling and heating. With SEER2 19.0 and HSPF2 9.5, it ensures efficient, eco-friendly comfort. Designed with cold-climate AURORA technology, this unit supports up to three zones. It features anti-corrosion treatment and a specialized drain pan for improved drainage.

• AURORA enhances capacity in cooling and heating.
• Features a high-efficiency inverter driven swing compressor.
• Offers anti-corrosion treatment of the outdoor heat exchanger.

Product Highlights

This Daikin multi-zone heat pump provides efficient cooling and heating for up to three zones, with features designed for cold climates and energy savings.

Product Information

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: 3MXT24AVJU9

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: MXT Series
• Operating Mode: Cooling & Heating
• Low Ambient Heat: Yes
• Number of Zones: 3
• System Capacity: 24,000 BTU
• Line Set Size: 1/4" x 3/8"
• Outdoor Unit: 3MXT24AVJU9
• Cooling Capacity: up to 24,000 BTU
• Heating Capacity: up to 24,000 BTU
• SEER2: 19.0
• EER2: 12.5
• HSPF2: 9.5
• Heating Operating Range: -13 - 75 F
• Cooling Operating Range: 14 - 115 F
• Room Cooling/Heating Capacity: up to 1,000 sq ft
• Noise Level Cooling: 55 dB(A)
• Noise Level Heating: 57 dB(A)
• Airflow Cooling CFM: 3,137
• Airflow Heating CFM: 3,137
• Electrical: 208/230V, 35 A
• Max Line Set Length: 230 ft
• Max Height Difference: 49 ft
• Maximum Number of Indoor Units: 3
• Max. Connected Outdoor BTU Capacity: 39000
• Refrigerant: R32
• Compressor: Inverter
• Energy Star: Yes
• Outdoor Unit Noise Level (dBA): 55
• Includes Heat Pump: Yes
• Cooling BTUs (Non-Ducted): 24000
• Heat Pump BTUs (Non-Ducted): 24000
• Inverter Technology: Yes
• Connectivity: WiFi Adapter Required
• Line Set Liquid Line: 1/4" (3)
• Line Set Suction Line: 3/8" (1); 1/2" (2)
• Pipe Length (No Addl Refr Req): 131.25
• Max. Pipe Length (ft.) Per Zone: 82 (Per Zone)
• Ambient Temperature Range - Cooling: 14°F - 115°F
• Ambient Temperature Range - Heating: -13°F - 60°F
• Min. Outdoor Temp for Heat °F: -13
• Voltage: 208-230V
• Amps: 33.6
• Circuit Breaker Size (Amps): 35
