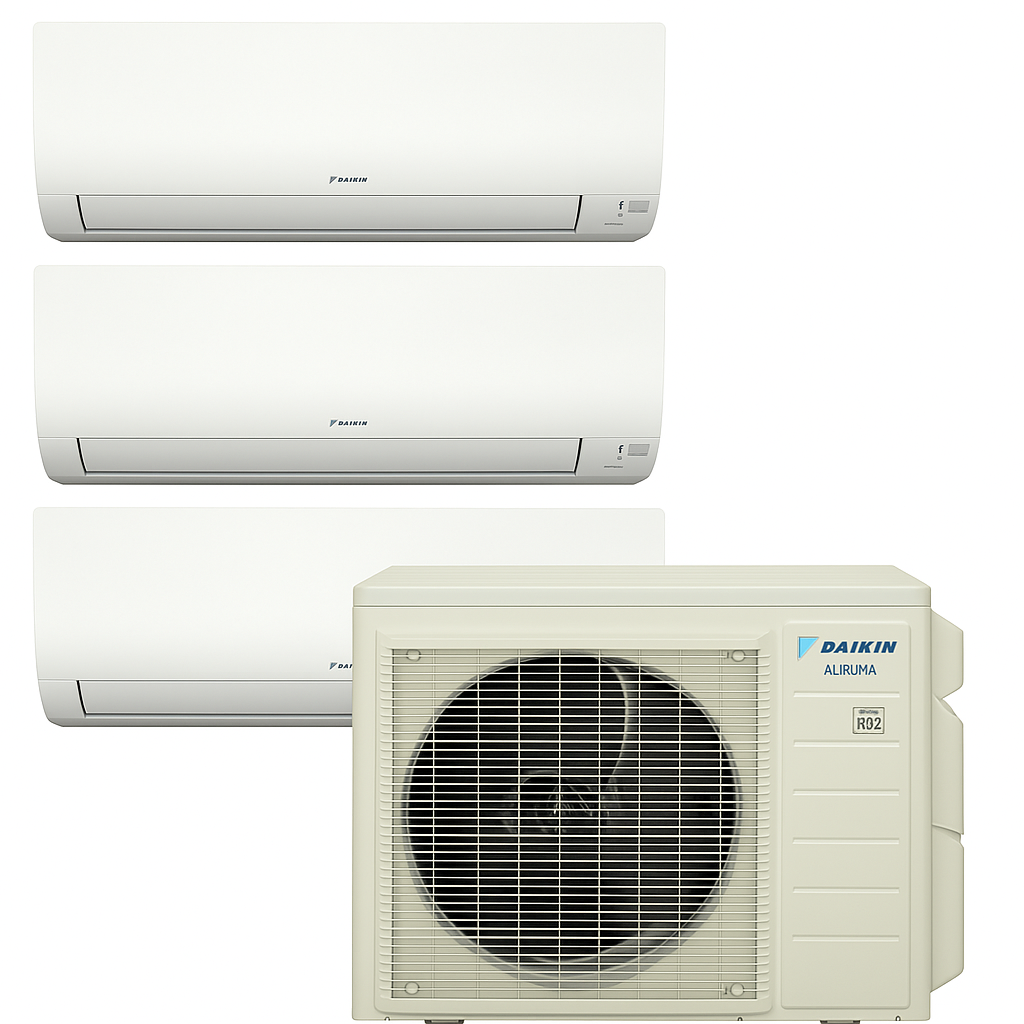

Daikin Outdoor Unit 3MXM24AVJU9 24,000 BTU 3-Zone Multi-Port Heat Pump - 7k 7k 7k - R32

Product Description

Upgrade your home with this energy-efficient, high-performance ductless mini-split system and air handler combo. Each indoor unit features independent temperature control, giving you personalized comfort in every room. Ideal for homes with or without existing ductwork, this system brings reliable year-round comfort, lower energy bills, and minimal maintenance

Product Description

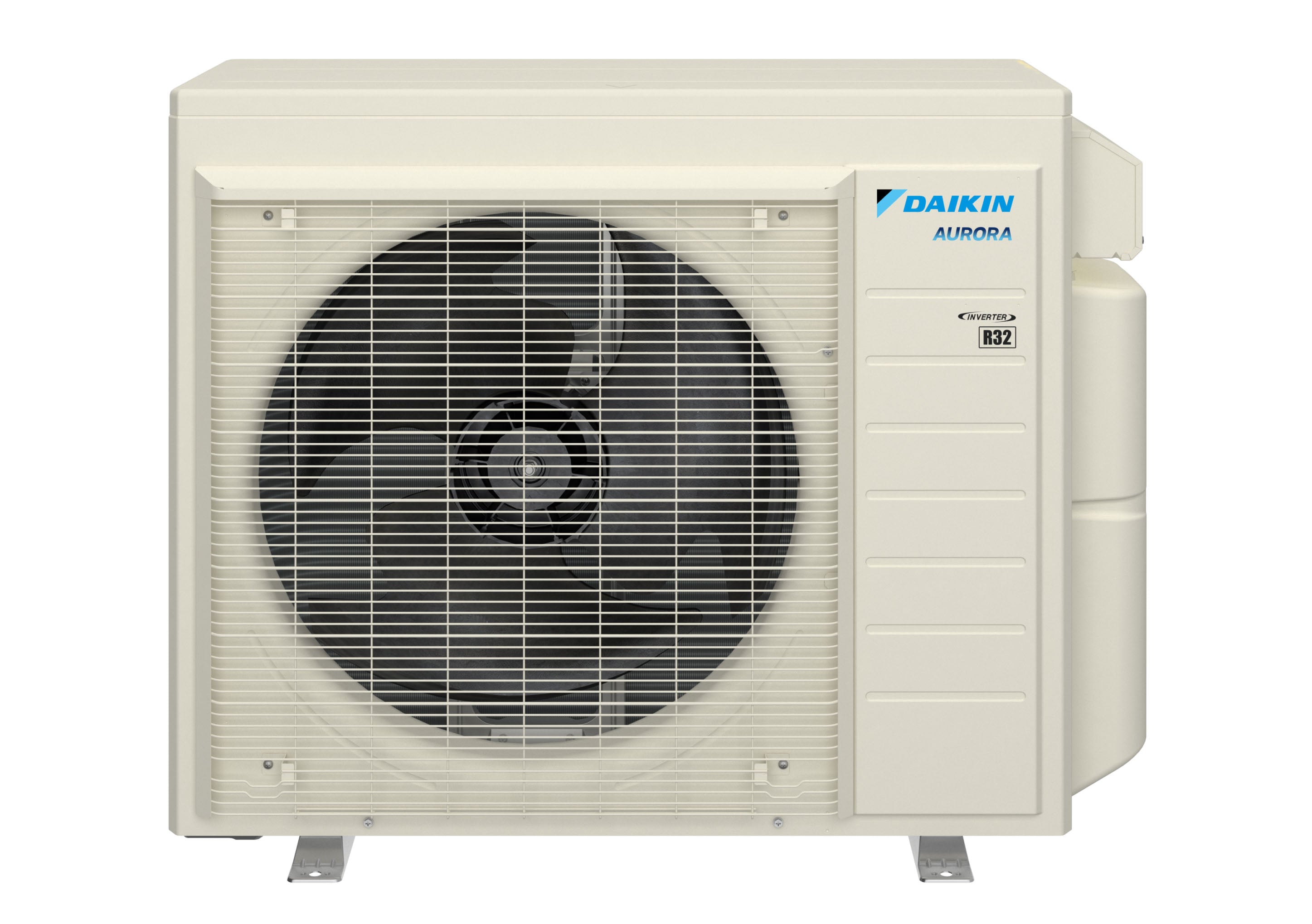

The Daikin 3MXM24AVJU9 is a multi-split heat pump unit designed for residential use. This outdoor unit has a capacity of 2.0 tons and features a 3-port design for efficient heating and cooling. Its design includes a high-efficiency inverter-driven swing compressor.

• Residential application with 12-year limited parts warranty upon registration
• High efficiency with EER of 12 and SEER of 21
• Rated heating capacity of 24000 Btu/h and cooling capacity of 23000 Btu/h

Product Highlights

Ideal for single-family homes, the Daikin multi-split system offers efficient performance and quiet operation.

Product Information

Standard Information

• System Family: Multi-Split
• Model: 3MXM24AVJU9

Technical Specifications

• Cooling Operation Range: 14 °F to 114.8 °F
• Heating Operation Range: 5 °F to 59.9 °F
• Power Supply Voltage: 208-230 V
• Fan Motor Output: 150 W
• Weight: 140 lb
• Dimensions: 34-1/4 in width, 29-1/2 in height, 12-5/8 in depth

Product Description

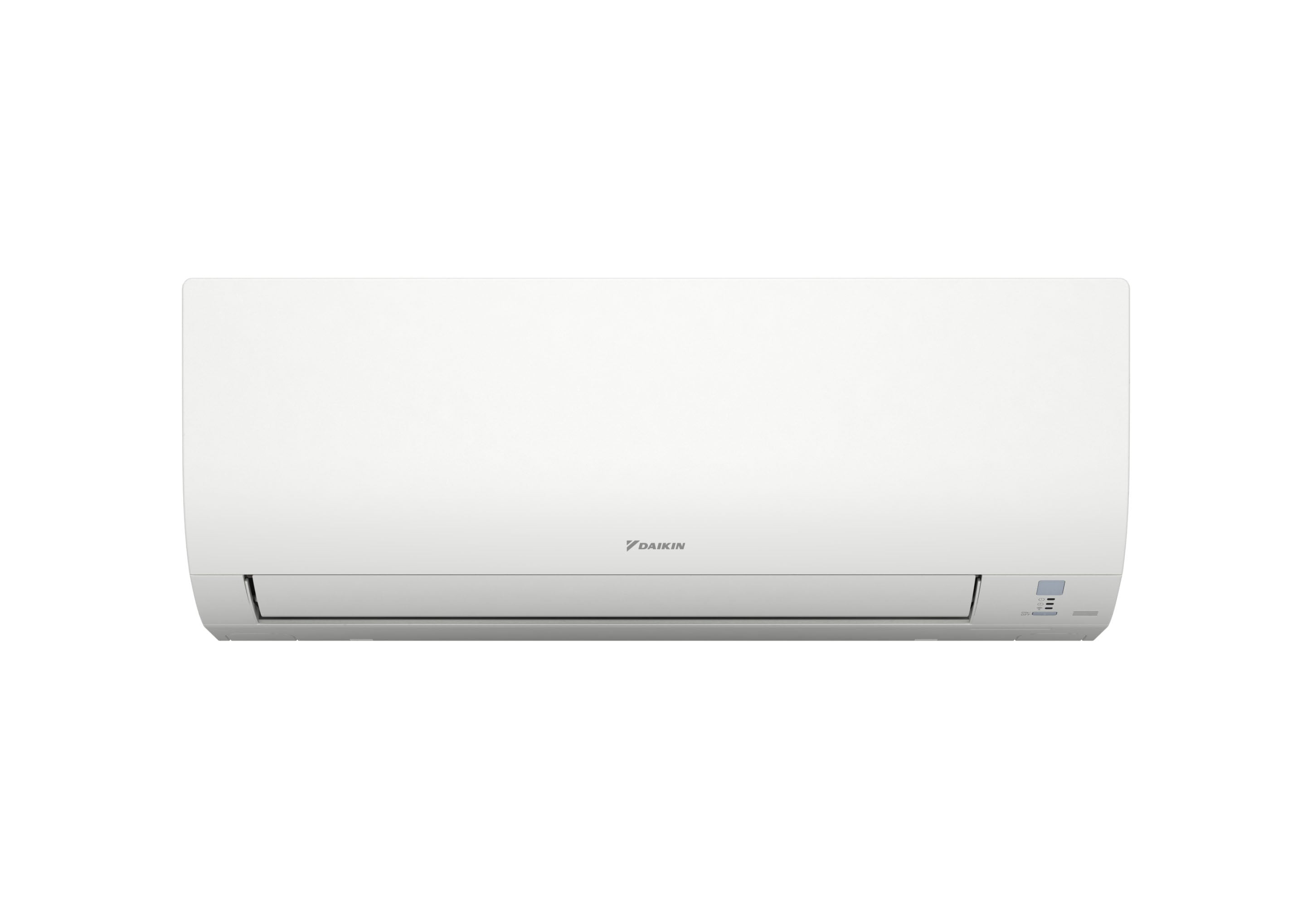

The Daikin CTXV07AVJU9 is a multi-split fan coil designed for indoor cooling. This unit is suitable for residential use, specifically in single-family homes. It is a wall-mounted option that helps provide efficient, reliable cooling when needed.

• Cooling only functionality with high wall mount design
• Features a 0.5 ton capacity
• Offers a 12-year limited parts warranty with registration

Product Highlights

The Daikin CTXV07AVJU9 is designed for optimal air flow and comfort in smaller spaces. The unit operates quietly and efficiently, offering low sound levels for both cooling and heating modes.

Product Information

Standard Information

• Brand: Daikin
• System Family: Multi-Split

Technical Specifications

• Weight: 19 lb
• Dimensions: 30-5/16 in (Width) x 11-1/4 in (Height) x 8-3/4 in (Depth)
• Air Flow Rate (High): 332 ft³/min
• Sound Pressure (High): 40 dBA
• Refrigerant Type: R-32
• Condensate Drain Outlet: 5/8 in
• Pipe Size Liquid: 1/4 in
