Product Description

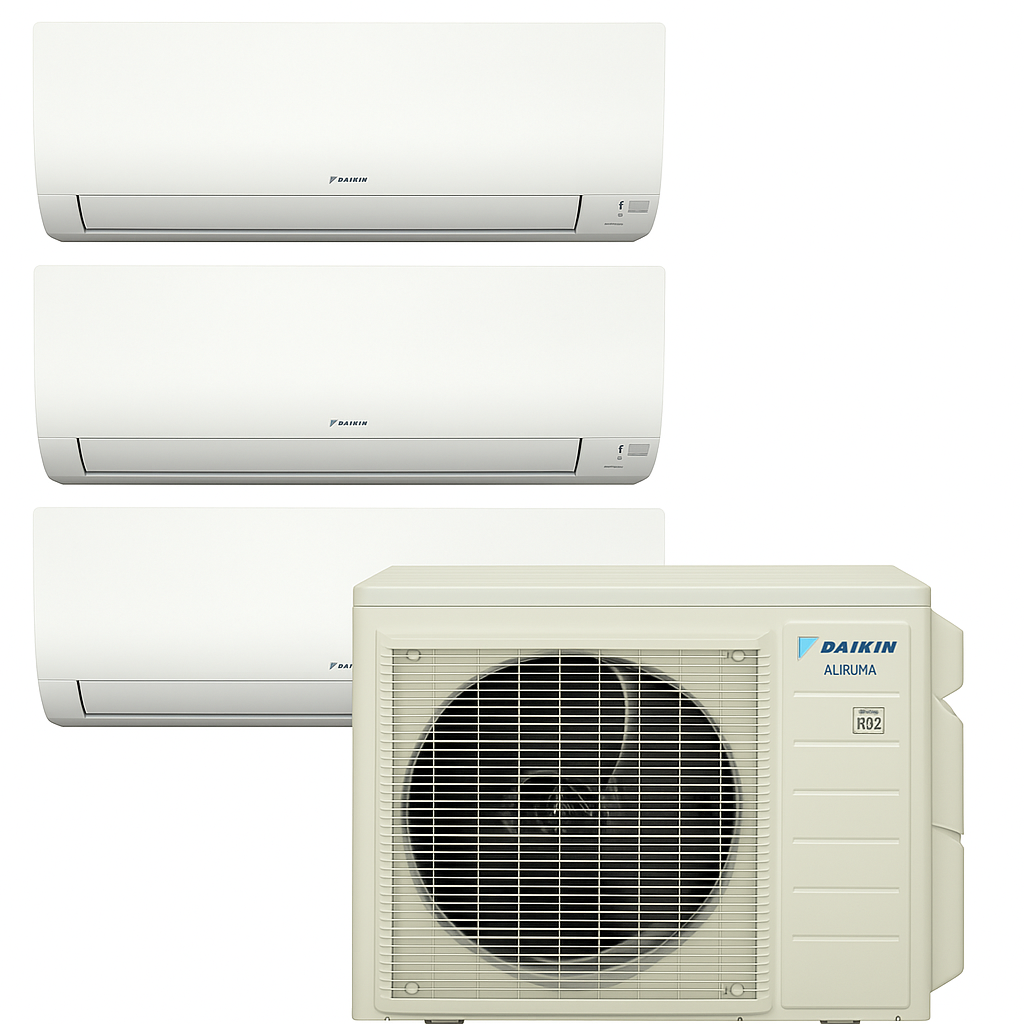

Upgrade your home with this energy-efficient, high-performance ductless mini-split system and air handler combo. Each indoor unit features independent temperature control, giving you personalized comfort in every room. Ideal for homes with or without existing ductwork, this system brings reliable year-round comfort, lower energy bills, and minimal maintenance
Product Description

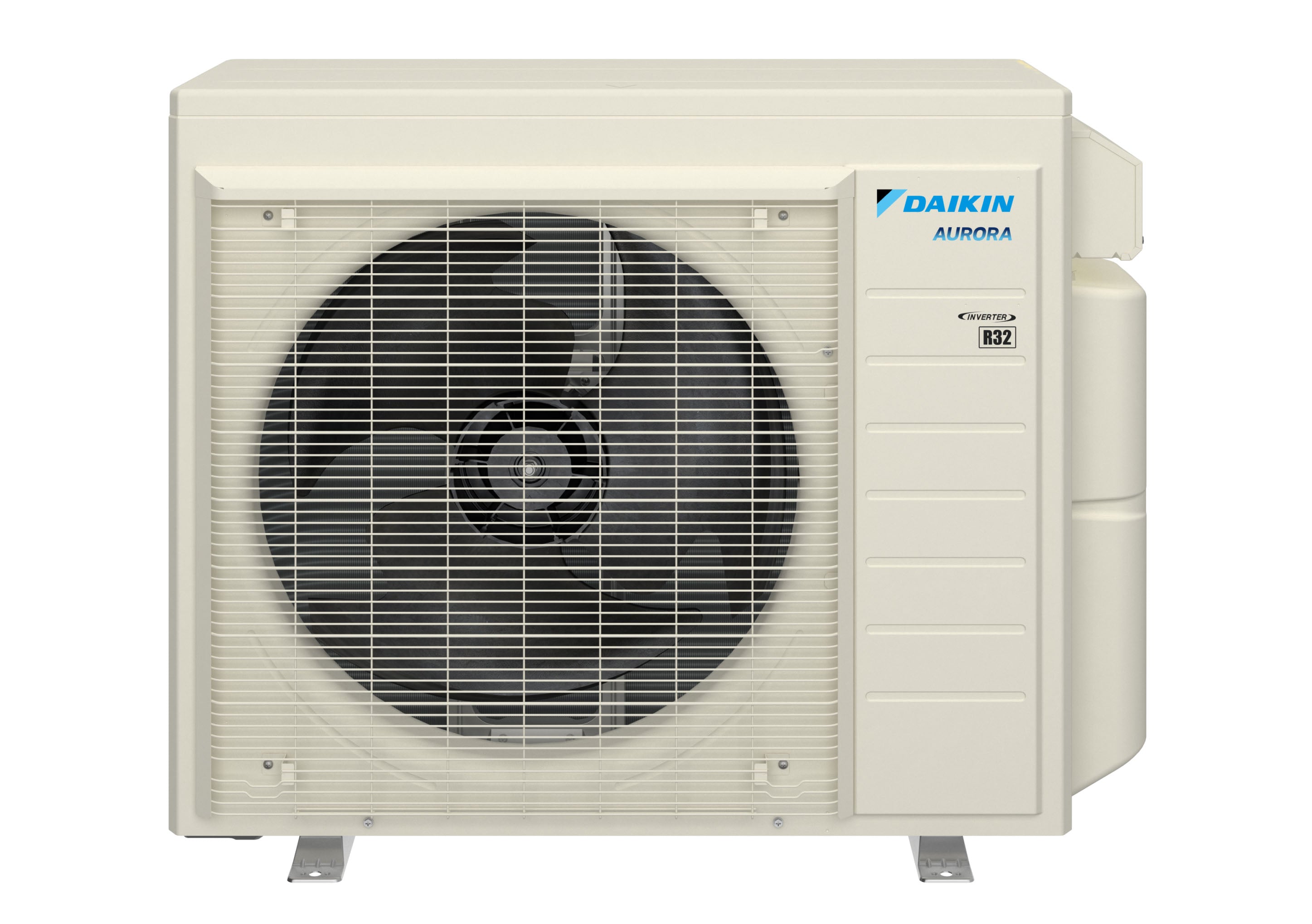

The Daikin 3MXM24AVJU9 is a multi-split heat pump unit designed for residential use. This outdoor unit has a capacity of 2.0 tons and features a 3-port design for efficient heating and cooling. Its design includes a high-efficiency inverter-driven swing compressor.
- Residential application with 12-year limited parts warranty upon registration
- High efficiency with EER of 12 and SEER of 21
- Rated heating capacity of 24000 Btu/h and cooling capacity of 23000 Btu/h
Product Highlights
Ideal for single-family homes, the Daikin multi-split system offers efficient performance and quiet operation.
Product Information
Standard Information
-
System Family: Multi-Split
-
Model: 3MXM24AVJU9
Technical Specifications
-
Cooling Operation Range: 14 °F to 114.8 °F
-
Heating Operation Range: 5 °F to 59.9 °F
-
Power Supply Voltage: 208-230 V
-
Fan Motor Output: 150 W
-
Weight: 140 lb
-
Dimensions: 34-1/4 in width, 29-1/2 in height, 12-5/8 in depth
Product Description

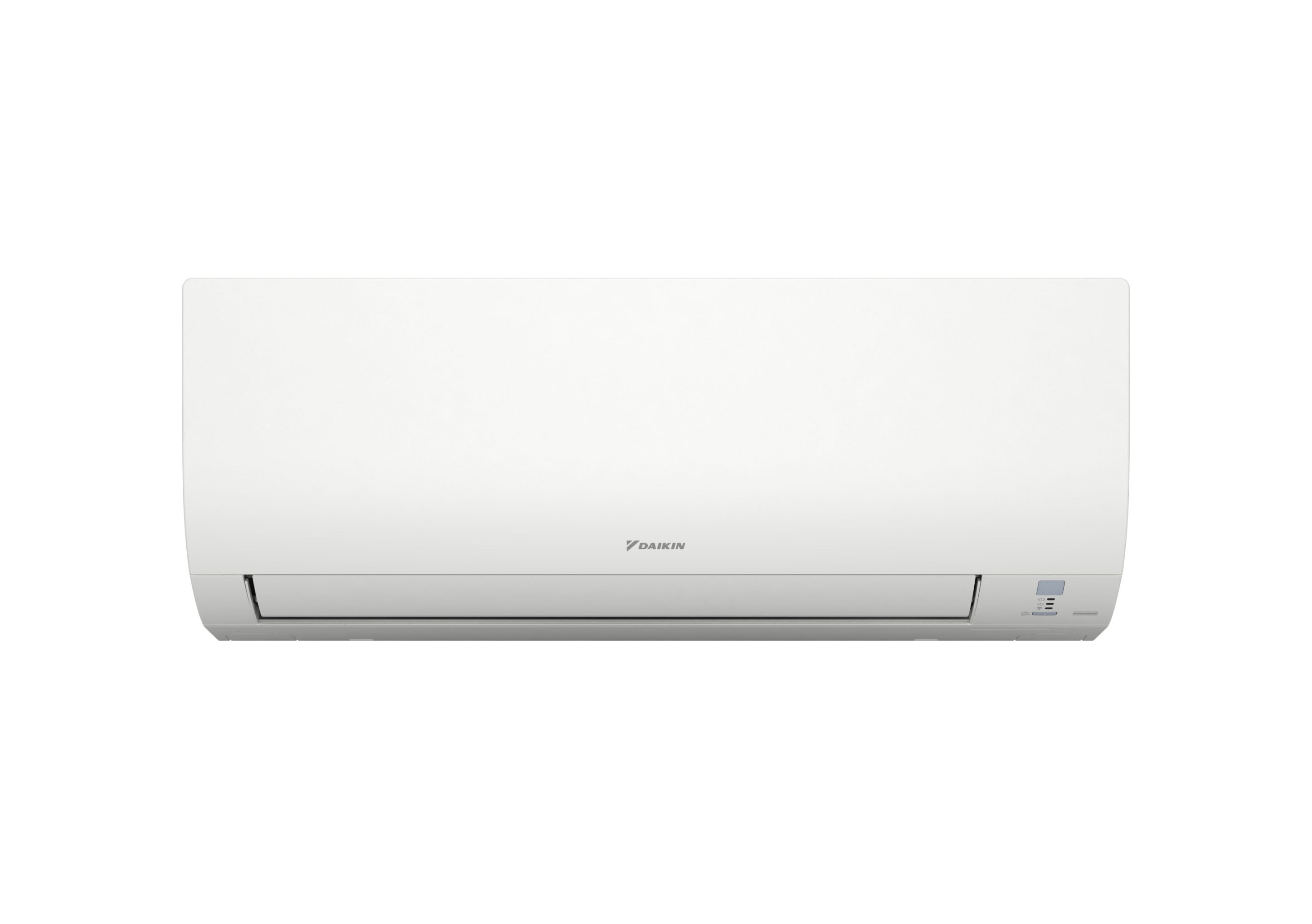

The Daikin CTXV07AVJU9 is a multi-split fan coil designed for indoor cooling. This unit is suitable for residential use, specifically in single-family homes. It is a wall-mounted option that helps provide efficient, reliable cooling when needed.
- Cooling only functionality with high wall mount design
- Features a 0.5 ton capacity
- Offers a 12-year limited parts warranty with registration
Product Highlights
The Daikin CTXV07AVJU9 is designed for optimal air flow and comfort in smaller spaces. The unit operates quietly and efficiently, offering low sound levels for both cooling and heating modes.
Product Information
Standard Information
-
Brand: Daikin
-
System Family: Multi-Split
Technical Specifications
-
Weight: 19 lb
-
Dimensions: 30-5/16 in (Width) x 11-1/4 in (Height) x 8-3/4 in (Depth)
-
Air Flow Rate (High): 332 ft³/min
-
Sound Pressure (High): 40 dBA
-
Refrigerant Type: R-32
-
Condensate Drain Outlet: 5/8 in
-
Pipe Size Liquid: 1/4 in
Product Description
The Daikin FTXV12AVJU9 is a ductless mini-split fan coil designed for indoor use. This unit operates on R-32 refrigerant and is ideal for residential single-family applications. With a 1-ton cooling capacity, it efficiently cools spaces while maintaining quiet operation. This model features a wall-mounted installation type and integrates communication capabilities.
- 12 Year limited Warranty for Parts and Compressor
- Quiet operation for a comfortable environment
- Designed for Easy Installation in Residential Spaces
Product Highlights
This fan coil unit provides effective cooling with minimal noise, making it suitable for living spaces.
Product Information
Standard Information
-
Installation Type: Wall Mounted
-
Country of Origin: Mexico
Technical Specifications
-
Cooling Capacity: 1 Ton
-
Dimensions: 30-5/16 in width x 11-1/4 in height x 8-3/4 in depth
-
Air Flow Rate (High): 392 ft³/min (Cooling)
-
Air Flow Rate (Low): 226 ft³/min (Cooling)
-
Sound Pressure (High): 45 dBA (Cooling)
-
Refrigerant Type: R-32
-
Weight: 19 lb
Product Description
The Daikin FTXV18AVJU9 is a multi-split fan coil designed for indoor use. It operates efficiently as a cooling-only system, making it suitable for residential single-family applications. This wall-mounted unit features a compact design that accommodates limited spaces, providing effective cooling performance with a 1.5 ton capacity.
- Efficient R-32 refrigerant to enhance cooling performance
- Quiet operation with sound pressure levels as low as 33 dBA
- Includes a 12-year limited warranty for parts and compressor
Product Highlights
This unit is ideal for homeowners looking to maintain comfortable indoor temperatures with minimal noise disruption.
Product Information
Standard Information
-
Brand: Daikin
-
Product Category: Ductless Mini-Splits
-
Installation Type: Wall Mounted
-
Country of Origin: Mexico
Technical Specifications
-
Dimensions (Width): 39 inches
-
Dimensions (Height): 11-5/8 inches
-
Dimensions (Depth): 10-3/8 inches
-
Weight: 27 lb
-
Air Flow Rate (High): 565 ft³/min
-
Air Flow Rate (Low): 378 ft³/min
-
Pipe Size Liquid: 1/4 inches
-
Pipe Size Gas: 1/2 inches
-
Refrigerant Type: R-32
