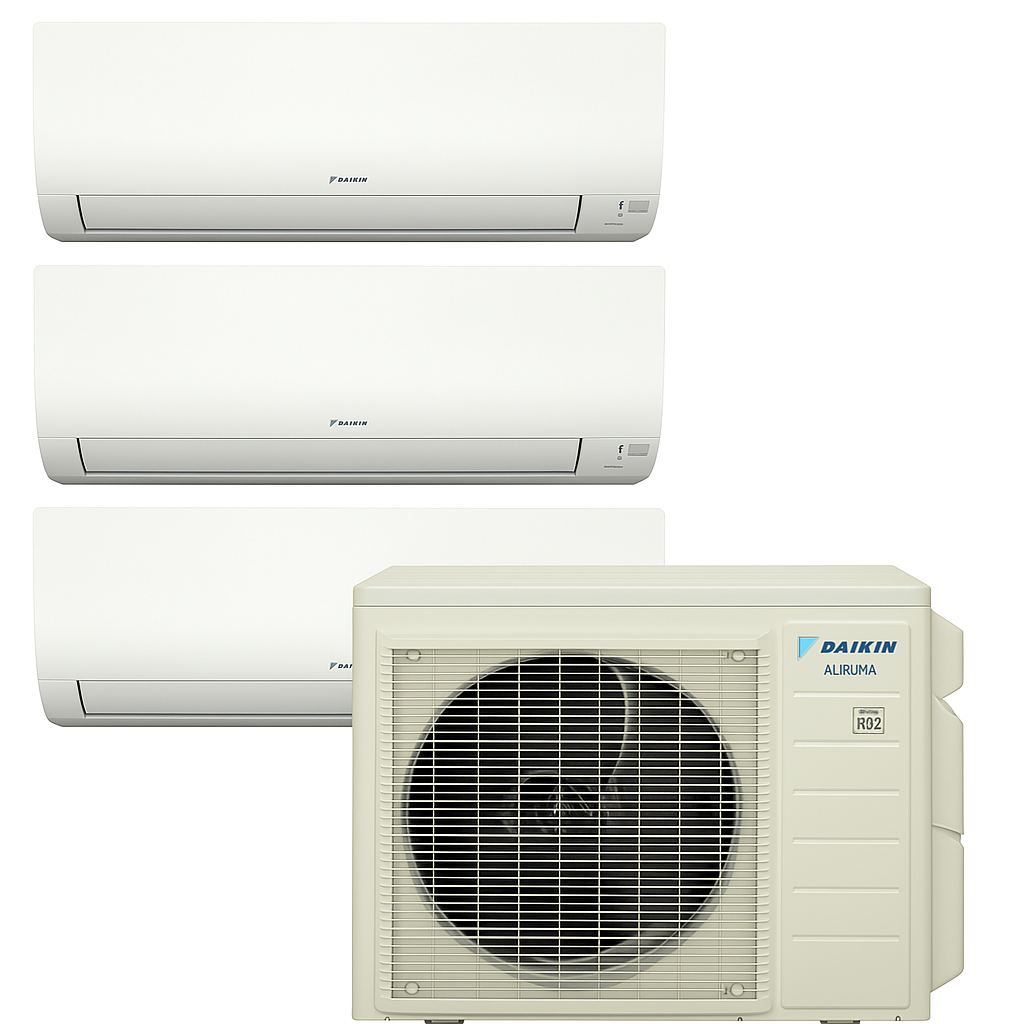

Daikin 3MXM24AVJU9 24,000 BTU 3-Zone Multi-Port Heat Pump - 12k 12k 12k - R32

Product Description

Upgrade your home with this energy-efficient, high-performance ductless mini-split system and air handler combo. Each indoor unit features independent temperature control, giving you personalized comfort in every room. Ideal for homes with or without existing ductwork, this system brings reliable year-round comfort, lower energy bills, and minimal maintenance

Product Description

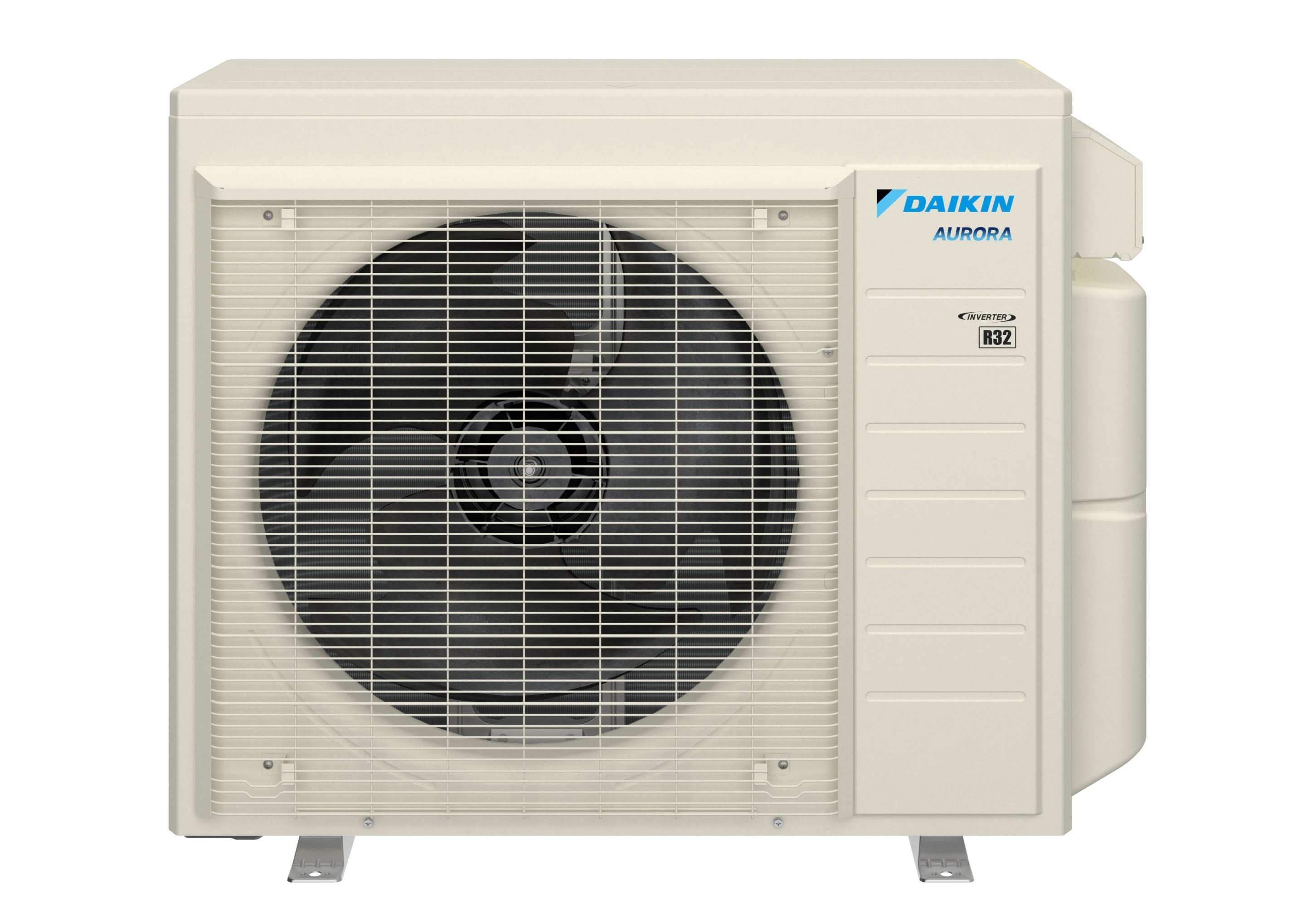

The Daikin 3MXM24AVJU9 is a multi-split heat pump unit designed for residential use. This outdoor unit has a capacity of 2.0 tons and features a 3-port design for efficient heating and cooling. Its design includes a high-efficiency inverter-driven swing compressor.

• Residential application with 12-year limited parts warranty upon registration
• High efficiency with EER of 12 and SEER of 21
• Rated heating capacity of 24000 Btu/h and cooling capacity of 23000 Btu/h

Product Highlights

Ideal for single-family homes, the Daikin multi-split system offers efficient performance and quiet operation.

Product Information

Standard Information

• System Family: Multi-Split
• Model: 3MXM24AVJU9

Technical Specifications

• Cooling Operation Range: 14 °F to 114.8 °F
• Heating Operation Range: 5 °F to 59.9 °F
• Power Supply Voltage: 208-230 V
• Fan Motor Output: 150 W
• Weight: 140 lb
• Dimensions: 34-1/4 in width, 29-1/2 in height, 12-5/8 in depth

Product Description

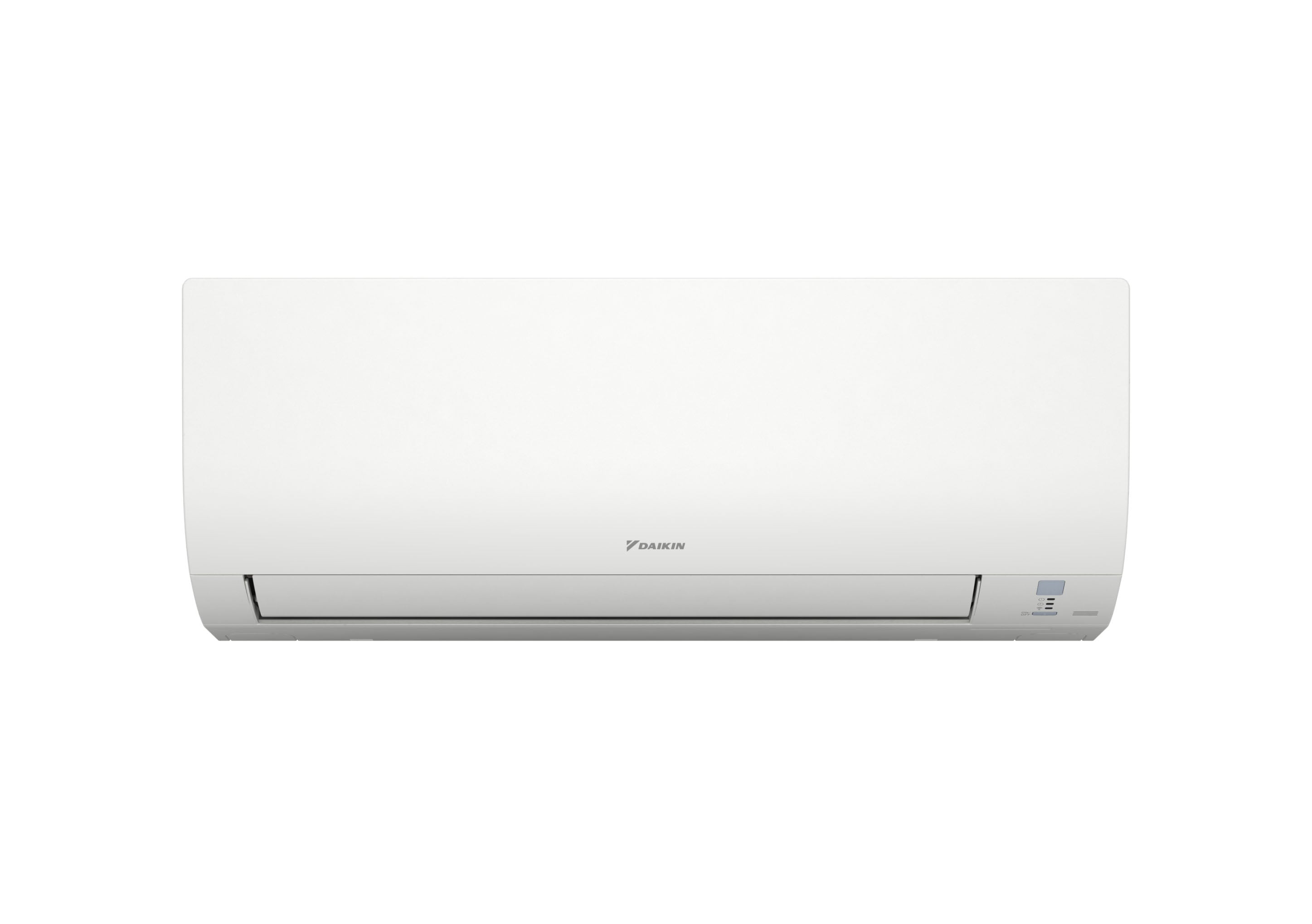

The Daikin FTXV12AVJU9 is a ductless mini-split fan coil designed for indoor use. This unit operates on R-32 refrigerant and is ideal for residential single-family applications. With a 1-ton cooling capacity, it efficiently cools spaces while maintaining quiet operation. This model features a wall-mounted installation type and integrates communication capabilities.

• 12 Year limited Warranty for Parts and Compressor
• Quiet operation for a comfortable environment
• Designed for Easy Installation in Residential Spaces

Product Highlights

This fan coil unit provides effective cooling with minimal noise, making it suitable for living spaces.

Product Information

Standard Information

• Installation Type: Wall Mounted
• Country of Origin: Mexico

Technical Specifications

• Cooling Capacity: 1 Ton
• Dimensions: 30-5/16 in width x 11-1/4 in height x 8-3/4 in depth
• Air Flow Rate (High): 392 ft³/min (Cooling)
• Air Flow Rate (Low): 226 ft³/min (Cooling)
• Sound Pressure (High): 45 dBA (Cooling)
• Refrigerant Type: R-32
• Weight: 19 lb
