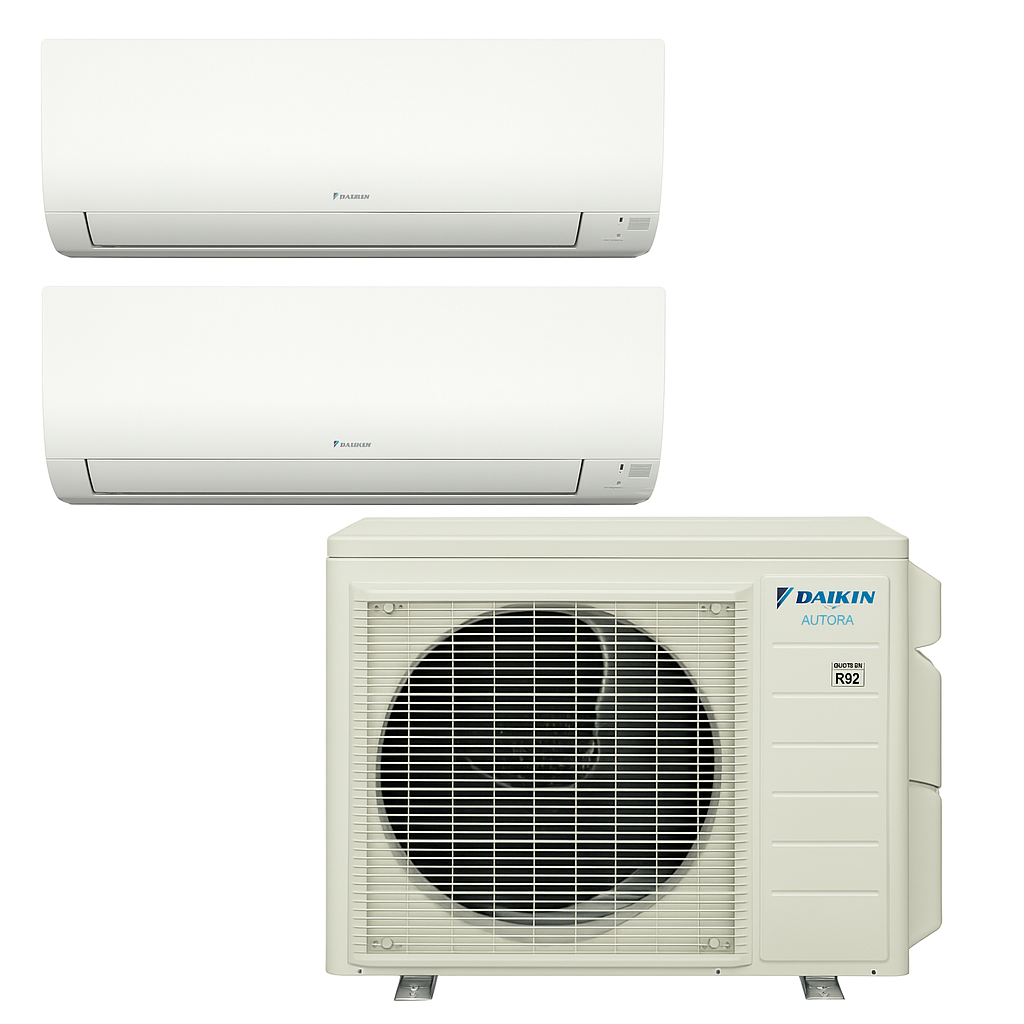

Daikin Outdoor Unit 3MXM24AVJU9 24,000 BTU 2-Zone Multi-Port Heat Pump - 9k 9k - R32

Product Description

Upgrade your home with this energy-efficient, high-performance ductless mini-split system and air handler combo. Each indoor unit features independent temperature control, giving you personalized comfort in every room. Ideal for homes with or without existing ductwork, this system brings reliable year-round comfort, lower energy bills, and minimal maintenance

Product Description

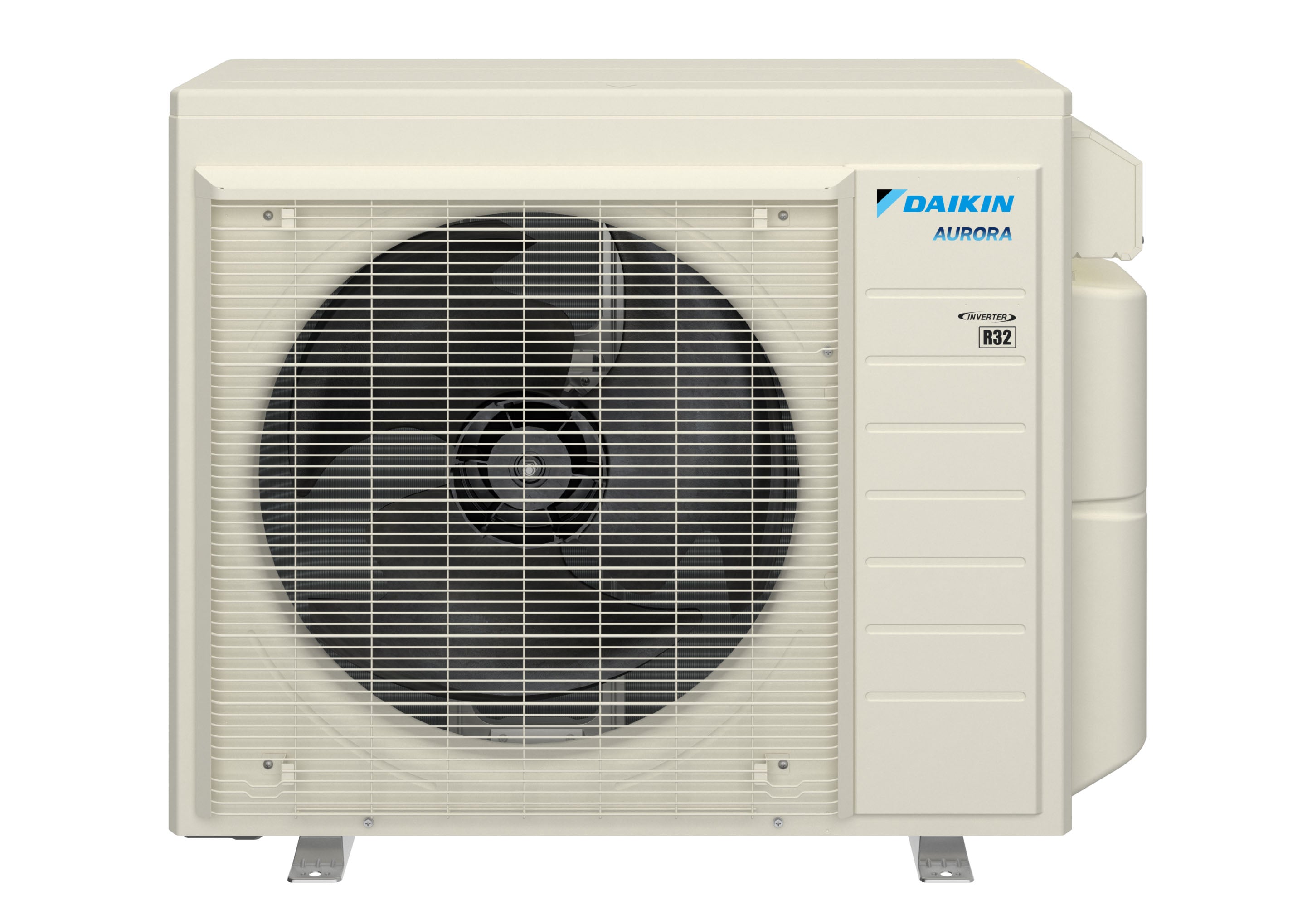

The Daikin 3MXM24AVJU9 is a multi-split heat pump unit designed for residential use. This outdoor unit has a capacity of 2.0 tons and features a 3-port design for efficient heating and cooling. Its design includes a high-efficiency inverter-driven swing compressor.

• Residential application with 12-year limited parts warranty upon registration
• High efficiency with EER of 12 and SEER of 21
• Rated heating capacity of 24000 Btu/h and cooling capacity of 23000 Btu/h

Product Highlights

Ideal for single-family homes, the Daikin multi-split system offers efficient performance and quiet operation.

Product Information

Standard Information

• System Family: Multi-Split
• Model: 3MXM24AVJU9

Technical Specifications

• Cooling Operation Range: 14 °F to 114.8 °F
• Heating Operation Range: 5 °F to 59.9 °F
• Power Supply Voltage: 208-230 V
• Fan Motor Output: 150 W
• Weight: 140 lb
• Dimensions: 34-1/4 in width, 29-1/2 in height, 12-5/8 in depth

Product Description

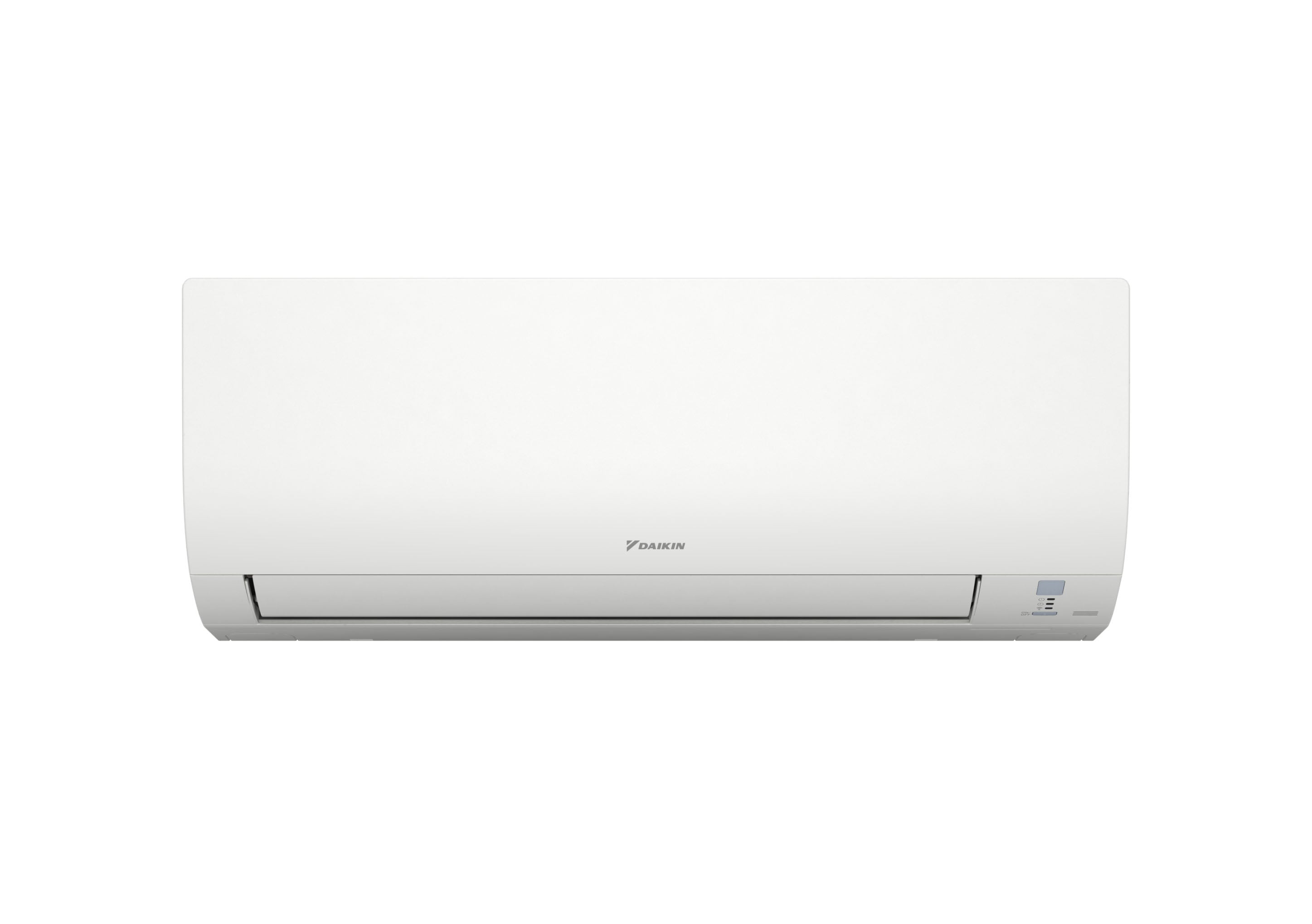

The Daikin FTXV09AVJU9 is a multi-split fan coil indoor unit designed for efficient cooling. This model is suitable for residential single-family applications and operates using R-32 refrigerant. It features a wall-mounted installation configuration for versatility and ease of placement.

• Quiet operation for comfortable indoor environments
• 12-year limited warranty on parts and compressor for peace of mind
• Air flow rates include 381 ft³/min for cooling and 385 ft³/min for heating

Product Highlights

This unit provides reliable cooling performance and is compliant with various energy efficiency standards.

Product Information

Standard Information

• Brand: Daikin
• Country of Origin: Mexico

Technical Specifications

• Dimensions (Unit Depth): 8-3/4 inches
• Dimensions (Unit Height): 11-1/4 inches
• Dimensions (Unit Width): 30-5/16 inches
• Weight (Unit): 19 lb
• Tonnage: 0.75
• Refrigerant Type: R-32
• Noise Level (High - Cooling): 43 dBA
• Noise Level (Low - Heating): 28 dBA
