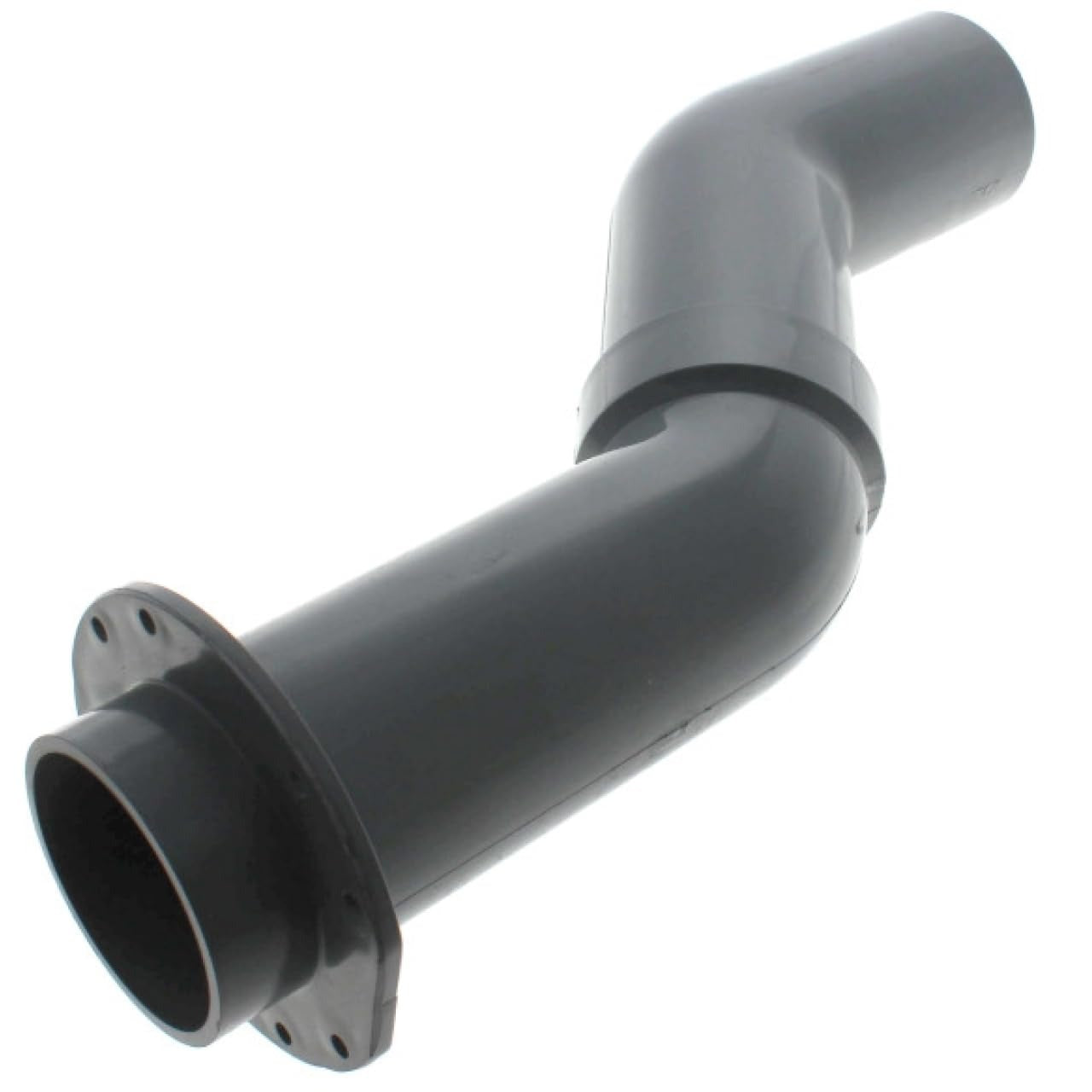

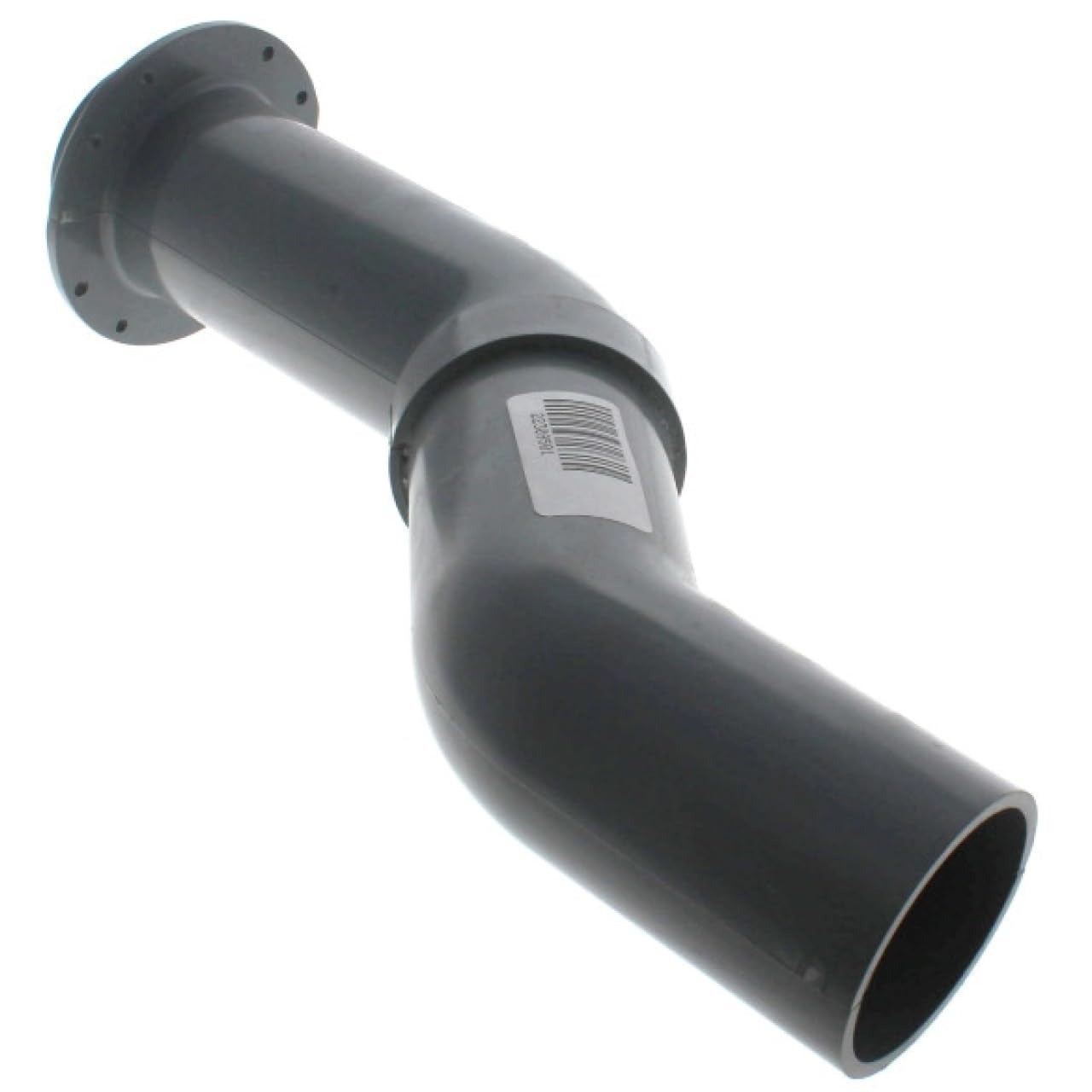

Daikin 22309501 Furnace Flue Inducer Motor Vent Pipe

Product Description

The DAIKIN 22309501 is an OEM replacement furnace flue inducer motor vent pipe designed for gas furnace draft inducer assemblies. This component connects the inducer motor housing to the flue venting system, maintaining proper exhaust gas flow away from the heat exchanger and out of the structure. It is a direct OEM-specification part, ensuring correct fit and sealing without field modification. HVAC technicians install this part during inducer motor replacements or when the existing vent pipe shows cracking, warping, or seal failure. At 0.88 pounds, it is a lightweight component with a footprint of approximately 12.99 inches by 5.98 inches by 4.02 inches.

This vent pipe is intended for use in residential gas furnace applications, specifically within the GMH series furnace platform. It is typically encountered during service calls involving inducer assembly teardown, flue blockage diagnosis, or heat exchanger inspection where the inducer vent pathway must be disturbed and reassembled. The part restores proper draft pressure and combustion exhaust routing to factory specification.

Key Features

• OEM replacement part built to original factory specification
• Designed for the GMH series gas furnace inducer vent assembly
• Lightweight construction at 0.88 pounds for easy handling during service
• Compact footprint: 12.99 inches x 5.98 inches x 4.02 inches
• Ensures proper exhaust gas routing and draft inducer sealing

Compatibility

Designed as an OEM-style replacement for GMH series residential gas furnaces. Confirm fitment against the unit model and serial number before installation.

Installation Notes

Installation of this component should be performed by a licensed HVAC technician. Before beginning work, shut off gas supply and disconnect electrical power to the furnace at the disconnect switch or breaker. Inspect mating surfaces and gaskets during reassembly to ensure an airtight seal and prevent flue gas leakage into the equipment compartment. Follow all applicable local mechanical codes and manufacturer service documentation when reconnecting the inducer vent assembly.
