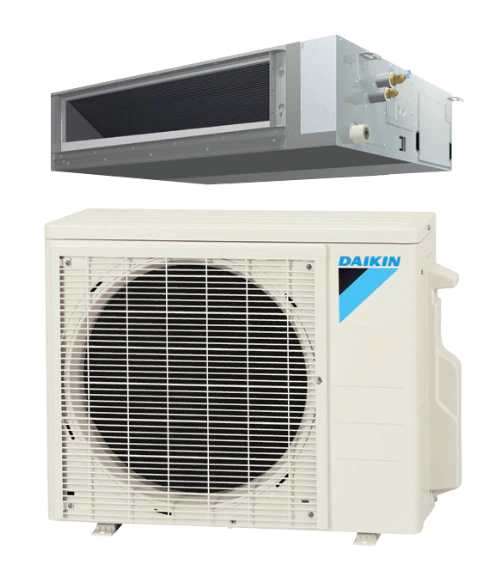

Daikin 12,000 BTU Aurora Concealed Duct Mini-Split Heat Pump System - 18 SEER - R-410A

The Daikin AURORA FDMQ ducted concealed ceiling unit provides a completely concealed installation, minimizing the impact on decor. Easily incorporate longer duct runs and high MERV filters with available external static pressures of up to .6 in. WG (150 Pa).

For all regions, the outdoor units of this Daikin AURORA heat pump system have been redesigned to withstand extreme weather conditions with excellent energy efficiency ratings, from -13ËšF (-25ËšC) to 115ËšF (46ËšC) outside.

Features:

• Energy Efficient – Up to 19.4 SEER - up to 10.8 HSPF - up to 12.7 EER
• Up to 100% Cooling Capacity at 104ËšF (40ËšC) and efficient operation as high as 115ËšF (46ËšC) ambient temperature
• Up to 100% Heating Capacity at 5ËšF (-15ËšC) and efficient operation as low as -13ËšF (-25ËšC) ambient temperature
• Cooling Range 50Ëš - 115ËšF (10Ëš - 46ËšC) (Extended operation to -4Ëš - 115ËšF (-20Ëš - 46ËšC) with facility setting and air adjustment grille)
• Heating Range -13Ëš - 65ËšF (-25Ëš - 18ËšC)
• Capable of providing external static pressures up to .6 in. WG (150 Pa) on all models
• Redesigned PCB in the outdoor unit to withstand extreme conditions
• Indoor Sound Pressure as low as 33 dB(A)
• Outdoor Sound Pressure as Low as 50 dB(A)
• Program Dry Function
• Auto Changeover
• Auto-Fan Speed control (with wired controller) Self-Diagnostics with digital display
• Drain Pan Inspection Port
• Integral Lift Mechanism
• Auto Restart After Power Failure
• Anti-Corrosion Heat Exchanger Treatment
• Quick Warming Function
• Hot Start Function
• Automatic Defrosting
• Compatible with DKN Cloud Wi-Fi Adaptor
• No optional adapter needed for DIII - connection
• Link your unit into the wider building management system
• Compatible with the Daikin Zoning Kit (DZKS)

Warranty:

*Complete warranty details available at www.daikincomfort.com. To receive the 12-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec. If product installed in a commercial application, limited warranty period is 5 years.
