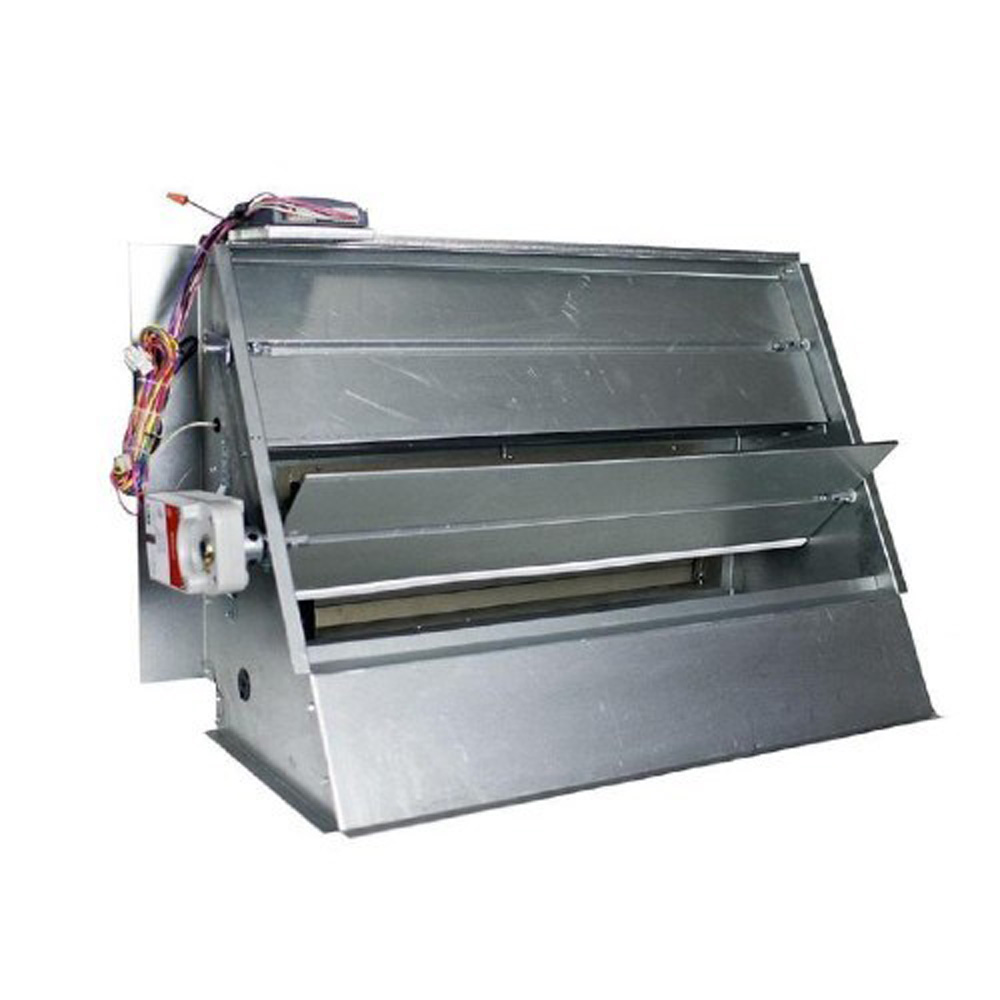

Daikin 0270L01123 Downflow Economizer Low-leak Dry Bulb

Product Description

The DAIKIN 0270L01123 is a low-leak downflow economizer designed for commercial HVAC rooftop units using dry bulb control logic. Economizers reduce mechanical cooling load by introducing outdoor air when ambient conditions are favorable, lowering energy consumption during mild weather. This unit uses dry bulb temperature sensing to determine when free cooling is available, making it a straightforward, reliable control strategy for light commercial applications. Installation and commissioning are typically performed by licensed HVAC technicians familiar with rooftop packaged equipment. The low-leak design minimizes conditioned air loss when the economizer is in the closed position.

The 0270L01123 is configured for downflow applications, meaning the airflow path is directed downward through the unit as found in downflow rooftop packaged systems. It is identified with the JADE economizer designation within the DAIKIN product line and is intended for commercial rooftop HVAC installations requiring integrated outdoor air economization. This part is suited for retrofit or replacement service on compatible DAIKIN rooftop equipment as well as new installation where downflow economizer capability is specified.

Key Features

• Low-leak construction reduces conditioned air bypass when economizer damper is closed
• Dry bulb control strategy uses outdoor air temperature to trigger free cooling mode
• Downflow configuration matches rooftop packaged units with downflow air discharge
• JADE economizer platform designed for integration with compatible DAIKIN rooftop systems
• Suitable for retrofit replacement or new installation on applicable equipment

Compatibility

Designed as an OEM-style replacement economizer for DAIKIN downflow rooftop packaged HVAC units requiring a dry bulb low-leak economizer assembly. Confirm unit model and economizer port configuration before ordering.

Installation Notes

Installation should be performed by a licensed commercial HVAC technician. Disconnect and lock out all electrical power to the rooftop unit before beginning economizer removal or installation. Verify that the damper actuator, linkage, and outdoor air hood are fully seated and secured per the equipment manufacturer's service documentation. Local codes and ASHRAE 90.1 requirements may govern economizer performance testing and commissioning upon completion.

Technical Specifications

• Control Type: Dry Bulb
• Airflow Configuration: Downflow
• Leak Classification: Low-Leak
• Series: JADE

Standard Information

• Brand: DAIKIN
• Manufacturer Part Number: 0270L01123
