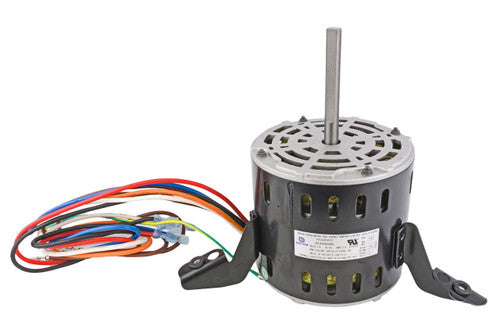

DAIKIN 0131F00042SP Blower Motor 1/2 HP

Product Description

The DAIKIN 0131F00042SP blower motor is part of HVAC air handling systems. It is made by Broad-Ocean and operates using 115 volts, 60 hertz, and single-phase power. This motor provides half a horsepower and runs at a speed of up to 1130 RPM with a current draw of seven amps. It features four selectable speeds for adjustable performance and has a counter-clockwise rotation for specific applications. The shaft measures one-half inch in diameter and extends four inches in length. Overall, the motor has a height of nine inches.

• Operates at 115V, 60Hz, single-phase
• Delivers 1/2 horsepower with a speed of 1130 RPM
• Features a 1/2 inch diameter shaft with CCW rotation

Product Highlights

This blower motor is designed for efficient operation in HVAC systems, providing necessary airflow for comfort in residential and commercial spaces.

Product Information

Standard Information

• Manufacturer: Broad-Ocean
• Manufacturer Part #: Y7L623E203T

Technical Specifications

• Horsepower: 1/2
• Voltage: 115
• Hertz: 60
• Number of Phases: 1
• Amps: 7.0
• LRA: 17
• RPM: 1130
• Number of Speeds: 4
• Rotation: CCW
• Shaft Diameter: 1/2
• Shaft Length: 4
• Height: 9
