Dahl Valve E33-2386-A Skirted Toilet Kit

Product Description

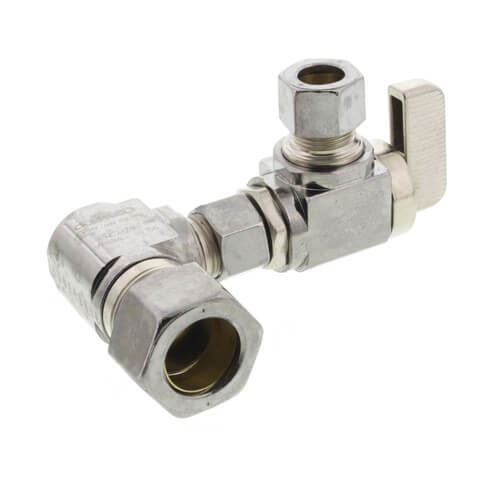

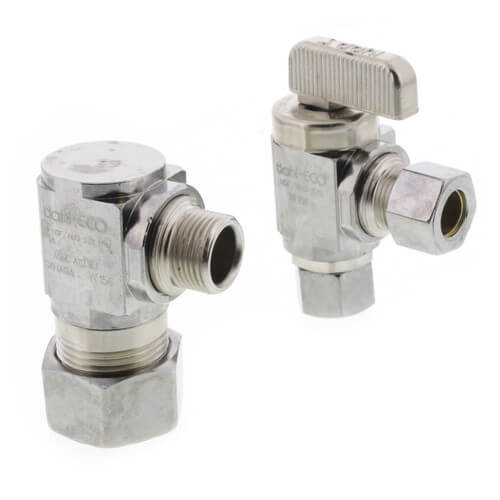

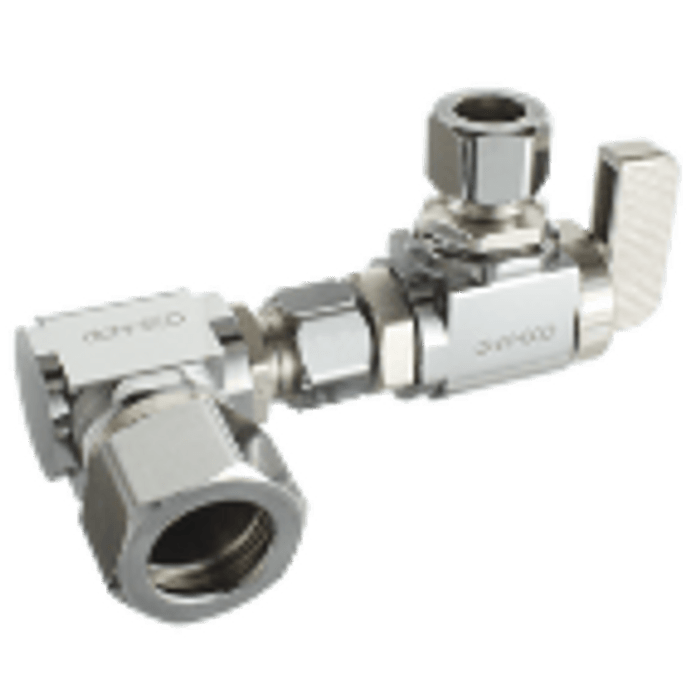

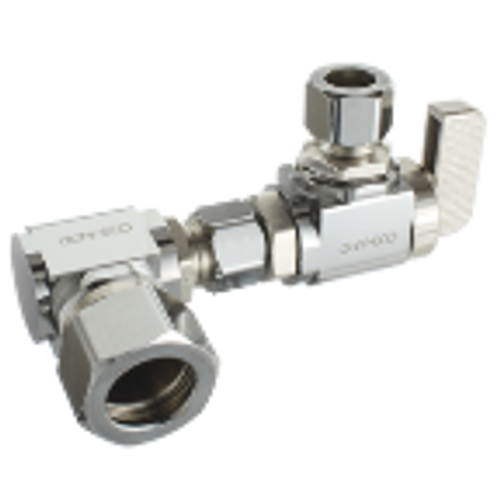

The Dahl Valve E33-2386-A is a skirted toilet kit suitable for installations with skirted toilets. This kit contains a mini-ball valve, featuring a compression inlet measuring five-eighths OD and a compression outlet measuring three-eighths OD. Constructed from lead-free brass, it has a chrome-plated finish for durability.

• Includes a five-eighths OD compression inlet.
• Comes with a three-eighths OD compression outlet.
• Made from lead-free brass for safety.

Product Highlights

This kit is engineered to provide the necessary offset to fit under the toilet skirt, potentially avoiding the need for re-piping.

Product Information

Standard Information

• Brand: Dahl Valve
• Manufacturer: Dahl Brothers Canada Limited

Technical Specifications

• MPN: E33-2386-A
• Product Type: Supply Stop
• Valve Type: Skirted Toilet Kit
• Inlet Size: 1/2
• Outlet Size: 3/8
• Inlet Type: Nominal Compression
• Outlet Type: OD Compression
• Body Pattern: Angle
• Material: Chrome Plated Brass
• Lead Free: Yes
• Type: 1/4 Turn
• Finish: Chrome Plated
• Operation: Plated Handle
• Inlet Connection: Comp
• Outlet Connection: Comp
• Inlet Pipe Type: Copper
• Outlet Pipe Type: Copper
