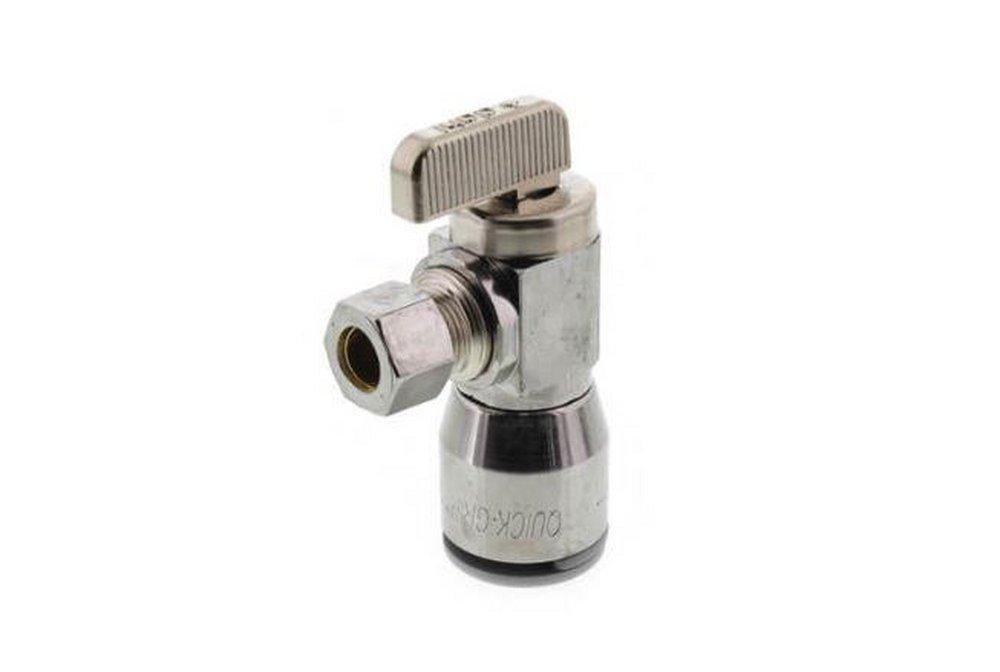

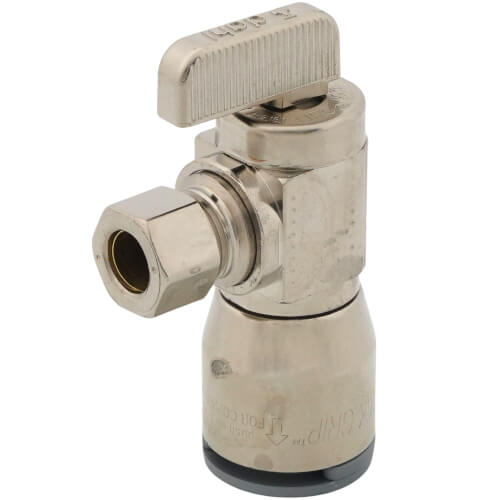

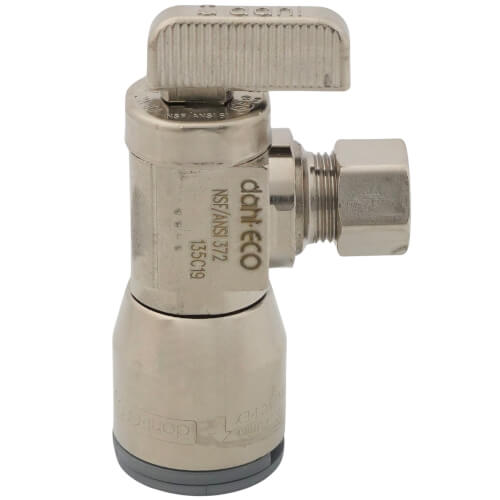

Dahl Valve 611-QG3-31 Angle Stop Valve 1/2 inches x 3/8 inches

Product Description

The DAHL VALVE 611-QG3-31 is an angle stop valve with a 1/2" Quick-Grip inlet and a 3/8" OD compression outlet. It is suitable for plumbing applications, including toilets, sinks, faucets, and dishwashers. Every valve is tested before leaving the factory.

• Quick-Grip to any 1/2" Copper, PEX, or CVPC pipe with no additional tools needed
• Made in Canada with American materials
• Every valve is tested before leaving our facility

Product Highlights

This lead-free brass angle stop valve ensures safe and reliable plumbing connections.

Product Information

Standard Information

• Brand: DAHL VALVE
• Manufacturer Part Number: 611-QG3-31-BAG
• Country of Origin: Canada

Technical Specifications

• Application: Plumbing
• Outlet Size: 3/8"
• Inlet Size: 1/2"
• Material: Brass
• Valve Type: Angle Supply Stop Valve
• Lead Free: Yes
• Body Pattern: Angle
• Pattern: Angle
• Inlet Connection: QUICK-GRIP
• Finish: Plated
• Operation: Plated Handle
• Outlet Connection: 3/8 OD Comp
• Inlet: QG3
• Outlet: 31
• Brand: DAHL
• MPN: 611-QG3-31
• UPC: Does Not Apply
• Condition: New
• ANSI: ANSI 61 Annex G
• Collection: Mini-Ball
• Color Finish Category: Chromes
• Color Finish Name: Chrome Plated
• End Connection 1: Push
• End Connection 2: OD Compression
• End Connections: Push x OD Compression
• Handle Material: Zinc
• Handle Type: Loose Key
• Lead Law Compliance Level: Lead Free and Lead Leaching Compliant
• Lead Law Compliant: Yes
• Maximum Temperature: 250
• NSF: NSF 61 Annex G
• NSF Certified: Yes
• Number of Handles: Single Handle
• Pressure - Maximum: 250 psi
• UL Listed: No
• Valve Body Material: Brass
• Valve Body Style: Angle
• Valve Operator: Lever Handle
• Valve Seat Material: PTFE
• Valve Size: 1/2 in x 3/8 in
• Width: 1-1/2
