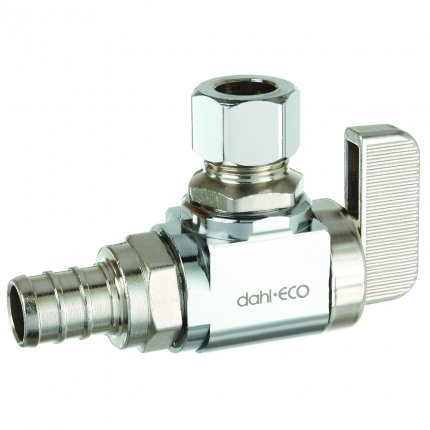

Dahl Valve 611-PX3-31-31 Supply Stops 1/2 Crimpex x 3/8 OD Comp Angle

Product Description

The DAHL VALVE 611-PX3-31-31 supply stop features a 1/2 Crimpex inlet and a 3/8 OD Compression outlet, with an angle pattern and plated finish. This valve is constructed from lead-free brass and is designed for dual outlet use. Every valve is tested before leaving the factory.

• 1/2 Crimpex x 3/8 OD Comp connection
• Angle pattern design
• Constructed from lead-free brass

Product Highlights

This DAHL VALVE supply stop is ideal for plumbing applications requiring a reliable and lead-free valve with PEX crimp and compression connections.

Product Information

Standard Information

• Brand: DAHL VALVE
• Manufacturer Part Number: 611-PX3-31-31

Technical Specifications

• Material: Lead-Free Brass
• Inlet Size: 1/2
• Pattern: Angle
• Inlet Connection: PEX Crimp
• Finish: Plated
• Operation: Plated Handle
• Outlet Connection: 3/8 OD Comp
• Type: Dual Outlet Valve
• Style: Angle
• Actuator Type: Handle
• Additional Information: Lead-Free
• Body Material: Brass
• Connection Type: PEX x Compression x Compression
• Lead-Free/Contains Lead: Lead-Free
• Nominal Size: 1/2 x 3/8 x 3/8 in
• Seal Material: PTFE
• Softgoods Material: EPDM/FKM/PTFE
