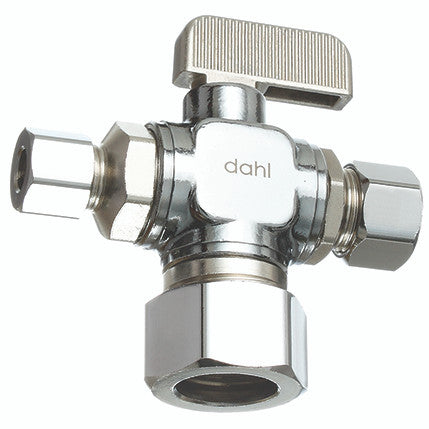

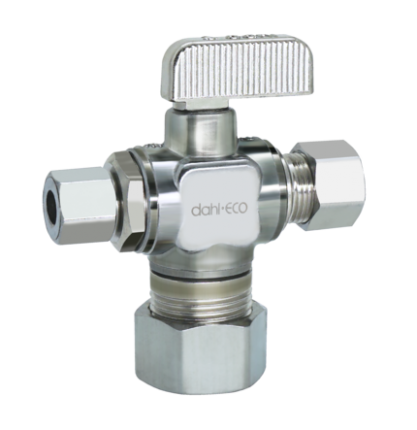

Dahl Valve 611-33-31-30 Dual Outlet Valves 5/8 OD Comp x 3/8 OD Comp x 1/4 OD Comp

Product Description

The DAHL VALVE 611-33-31-30 is a dual outlet valve with 5/8 OD Comp X 3/8 OD Comp X 1/4 OD Comp connections. This quarter turn dual outlet valve is tested before leaving the factory and is suitable for copper inlet and outlet pipes.

• Dual Outlet Valve
• Inlet Pipe Type: Copper
• Outlet Pipe Type: Copper

Product Highlights

The first 1/4 turn dual outlet valve on the market is still the best. Every valve is tested before leaving our factory.

Product Information

Standard Information

• Brand: DAHL VALVE
• Manufacturer Part Number: 611-33-31-30BAG

Technical Specifications

• Material: Lead-Free Brass
• Inlet Size: 1/2
• Pattern: Angle
• Inlet Connection: 5/8 OD Comp
• Finish: Plated
• Operation: Plated Handle
• Outlet Size: 1/4
• Outlet Connection: 3/8 OD Comp
• Branch Pipe Type: Copper
• Branch Size: 1/8
• Branch Connection: 1/4 OD Comp
• Type: Dual Outlet Valve
• Style: Angle
• Turns: Quarter
• Handle Type: Standard
• Nominal Size: 5/8 x 3/8 x 1/4 in
• End Style: Comp
• Color Family: Chrome
• Finish/Color: Polished Chrome
• Body Material: Brass
• Brand: dahl
• Manufacturer: dahl Brothers Canada Limited
• Manufacturer Part Number: 611-33-31-30-BAG
