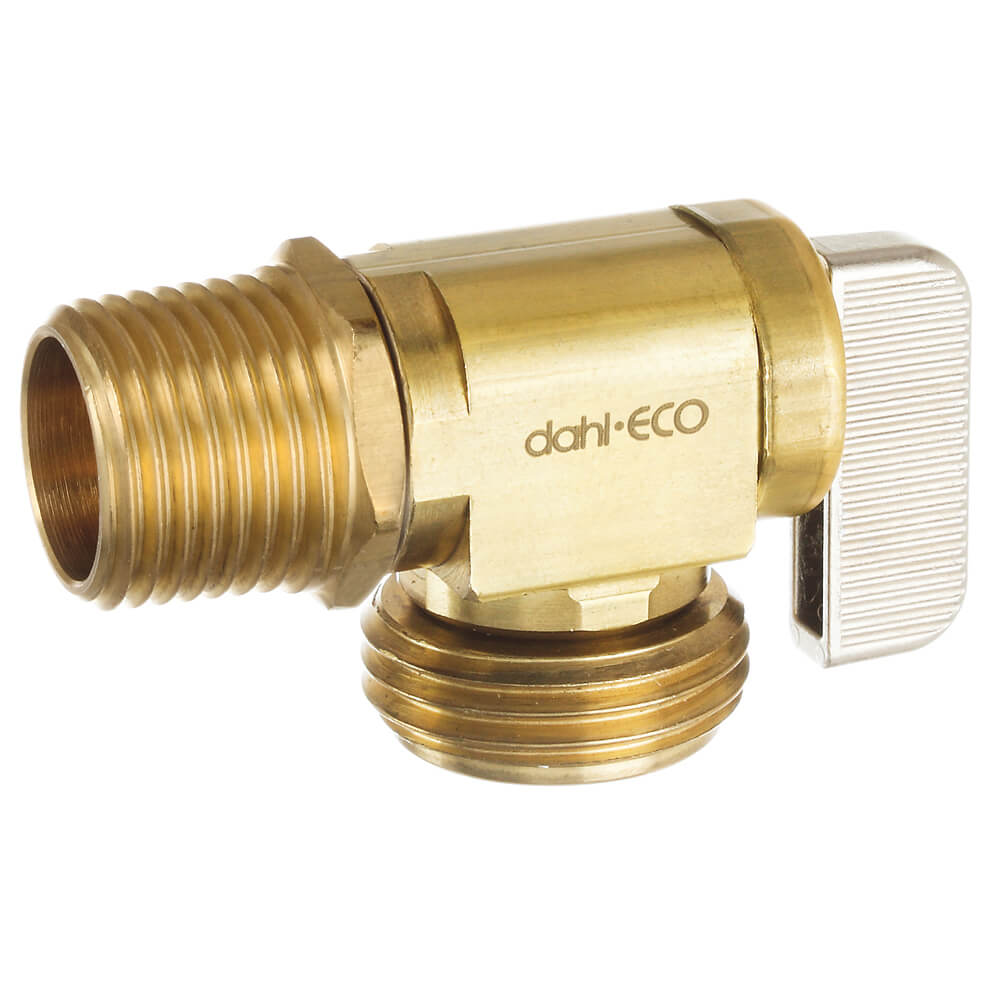

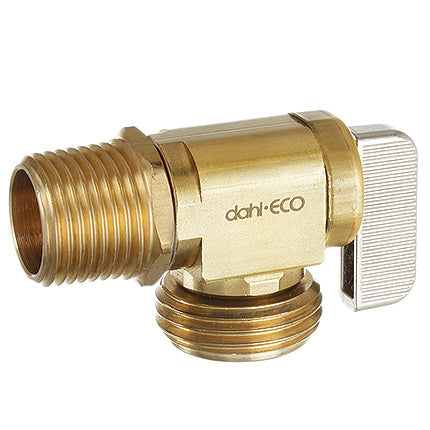

Dahl 621-01-04 1/2 inches Female Sweat or 1/2 inches MIP x Male Hose, Angle Hose & Boiler Drain Valve, LF

Product Description

The DAHL 621-01-04 is a 1/2" Female Sweat or 1/2" MIP x Male Hose, Angle Hose & Boiler Drain Valve, LF. Constructed from rough brass material with a brass finish, this lead-free valve features a female sweat, MNPT inlet type and a male hose outlet type. Suitable for both plumbing and heating applications.

• 1/2" Size
• Brass Finish
• Lead Free

Product Highlights

This DAHL hose valve is suitable for plumbing and heating with MNPT x Male Hose, C x Male Hose connection type.

Product Information

Standard Information

• Brand: DAHL
• Manufacturer Part Number: 621-01-04
• Country of Origin: Canada

Technical Specifications

• Size [Features]: 1/2"
• Finish: Rough Brass
• Material [Features]: Rough Brass
• Lead Free [Features]: Yes
• Inlet Type [Features]: Female Sweat, MNPT
• Valve Type [Features]: Angle
• Outlet Type [Features]: Male Hose
• Connection Type [Features]: MNPT x Male Hose, C x Male Hose
• Inlet Size: 1/2
• Pattern: Angle
• Inlet Connection: MIP or 1/2 Fem. Solder
• Operation: Plated Handle
• Actuator Type: Handle
• Body Material: Brass
• Configuration: Angled
• Connection Type: MIP x MHT
• Dimensions: 2.3 in L x 2.6 in H
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 1.8 Cv
• Handle Material: Zinc
• Inlet to Outlet Length: 2.3 in
• Lead-Free/Contains Lead: Lead-Free
• Nominal Size: 1/2 in
• Operator Type: Handle
• Pressure Rating: 250 psi
• Seal Material: PTFE
• Softgoods Material: EPDM/FKM/PTFE
• Temperature Rating: 250 deg F
• Top to Inlet Center: 1.2 in
• Trim Material: PTFE
