Dahl 611-PX3-30-BAG 1/2 inches PEX Crimp x 1/4 OD Comp Angle Stop Valve

Product Description

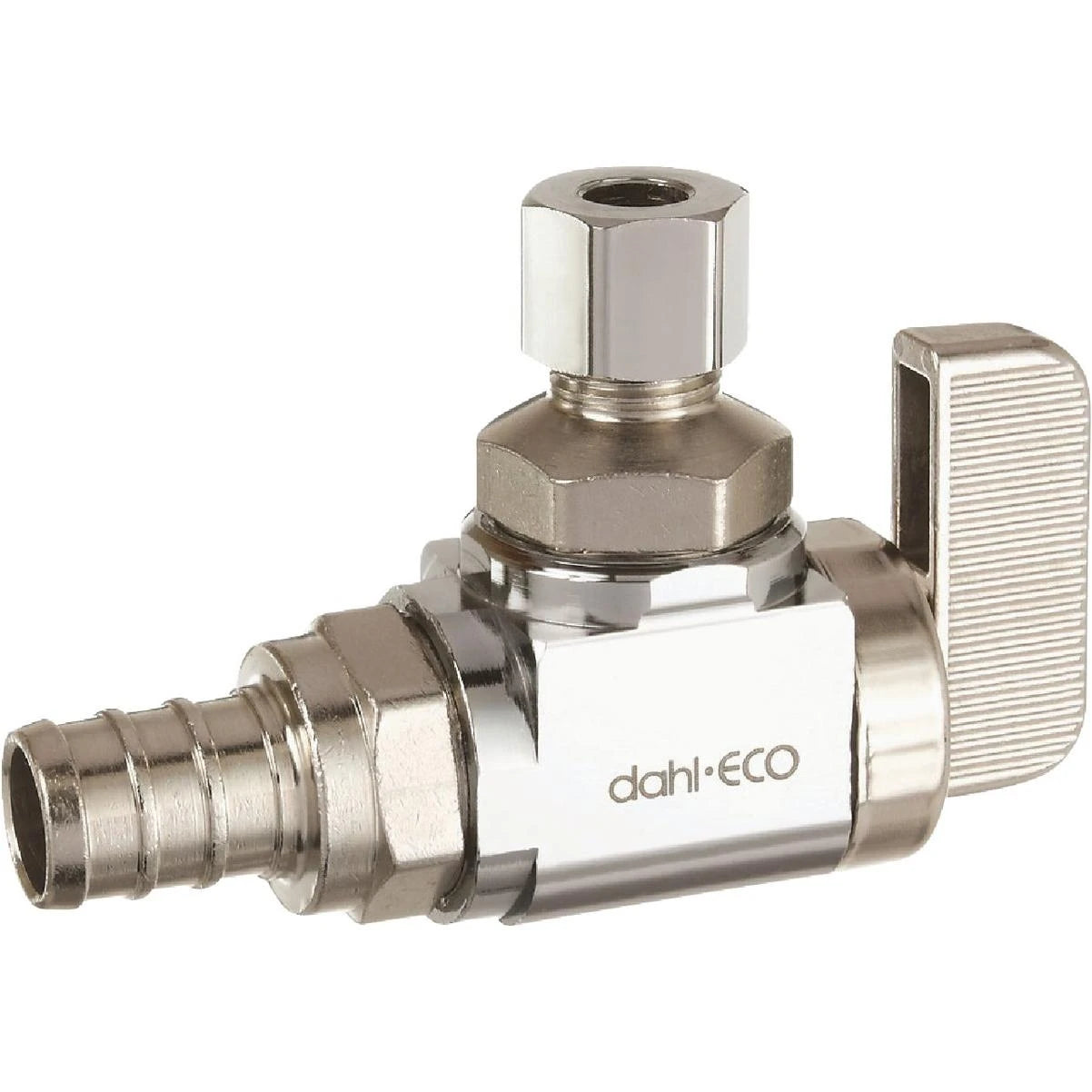

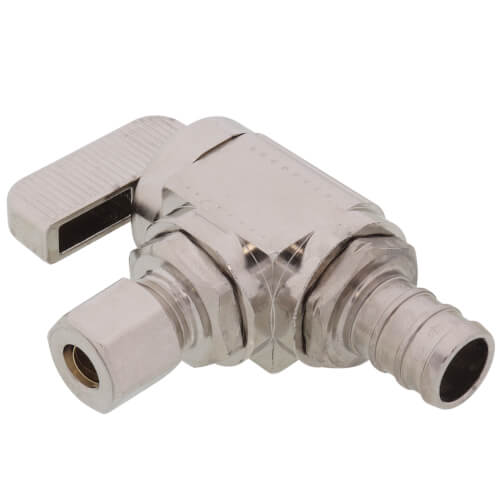

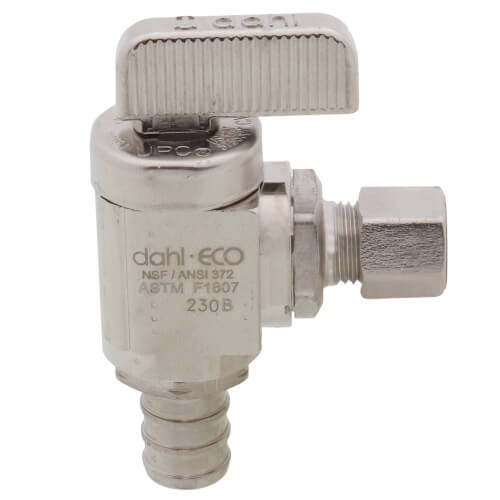

The DAHL 611-PX3-30-BAG is a 1/2" PEX Crimp x 1/4 OD Compression angle stop valve. It is manufactured from carefully sourced brass, raw materials, and components from high-quality suppliers. This lead-free valve is compatible with a PEX crimp or PEX clamp tool.

• PEX Crimp
• OD Compression
• Every valve is tested before leaving our factory.

Product Highlights

This Dahl angle stop valve features a 1/2" PEX crimp inlet and a 1/4" OD compression outlet. It is suitable for use with PEX pipe.

Product Information

Standard Information

• Brand: DAHL
• Manufacturer Part Number: 611-PX3-30-BAG
• Country of Origin: Import

Technical Specifications

• Size: 1/2" x 1/4"
• Inlet Size: 1/2"
• Outlet Size: 1/4"
• Outlet Type: OD Compression
• Inlet Type: PEX Crimp
• Valve Type: Angle Stop
• Material: Lead-Free Brass
• Lead Free: Yes
• Fitting System Compatibility: Crimp, Clamp
• Pattern: Angle
• Inlet Connection: PEX Crimp
• Finish: Plated
• Operation: Handle
• Outlet Connection: 1/4 OD Comp
• Style: Angle
• Body Material: Brass
• Domestic/Import: Import
• End Style: PEX Crimp x Compression
• Nominal Size: 1/2 x 1/4 in
• Package Quantity: 1
• Unit of Measurement: Each
• Model Number: 611-PX3-30-BAG
