Dahl 521-04-04F Ktfhtxmht Str Stop

Product Description

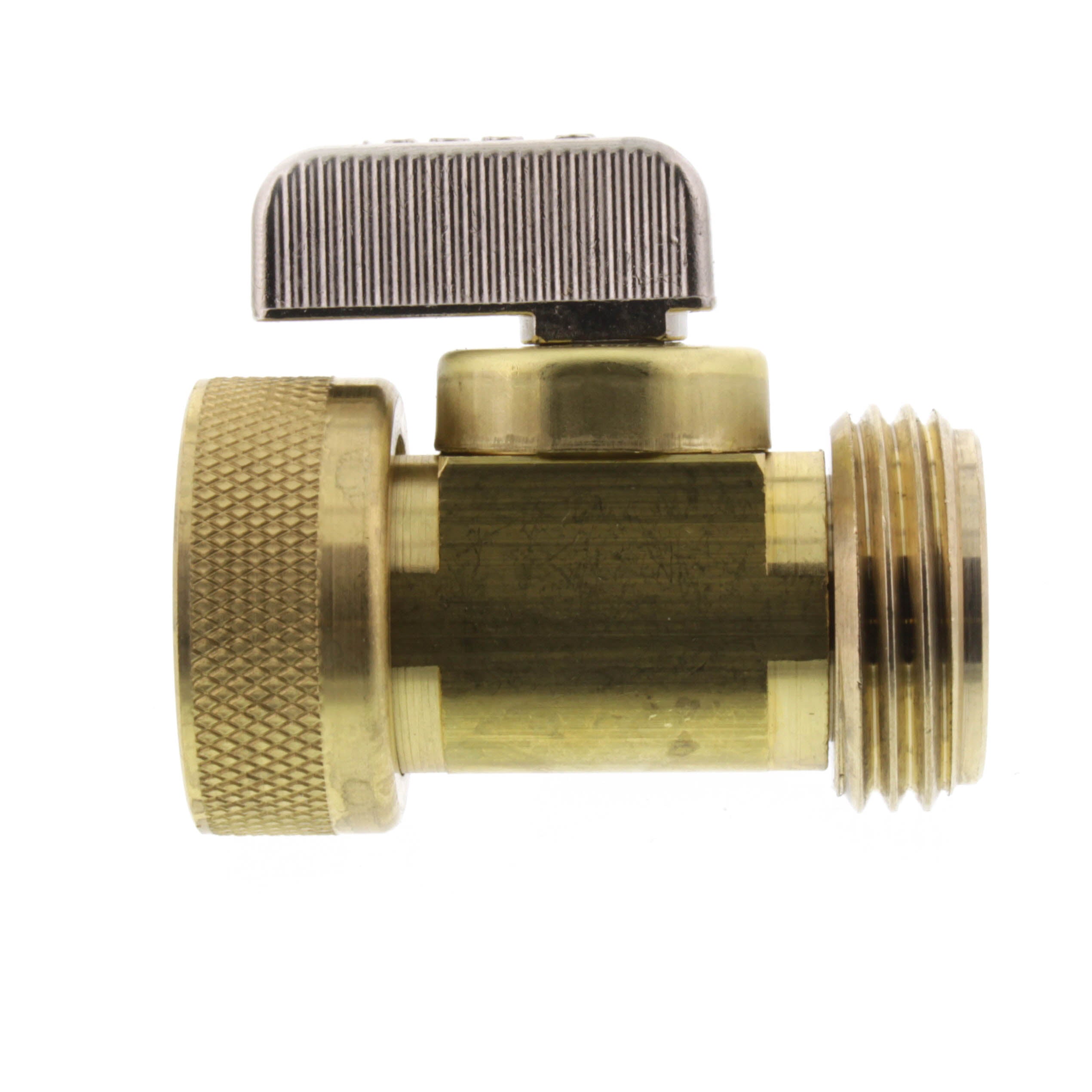

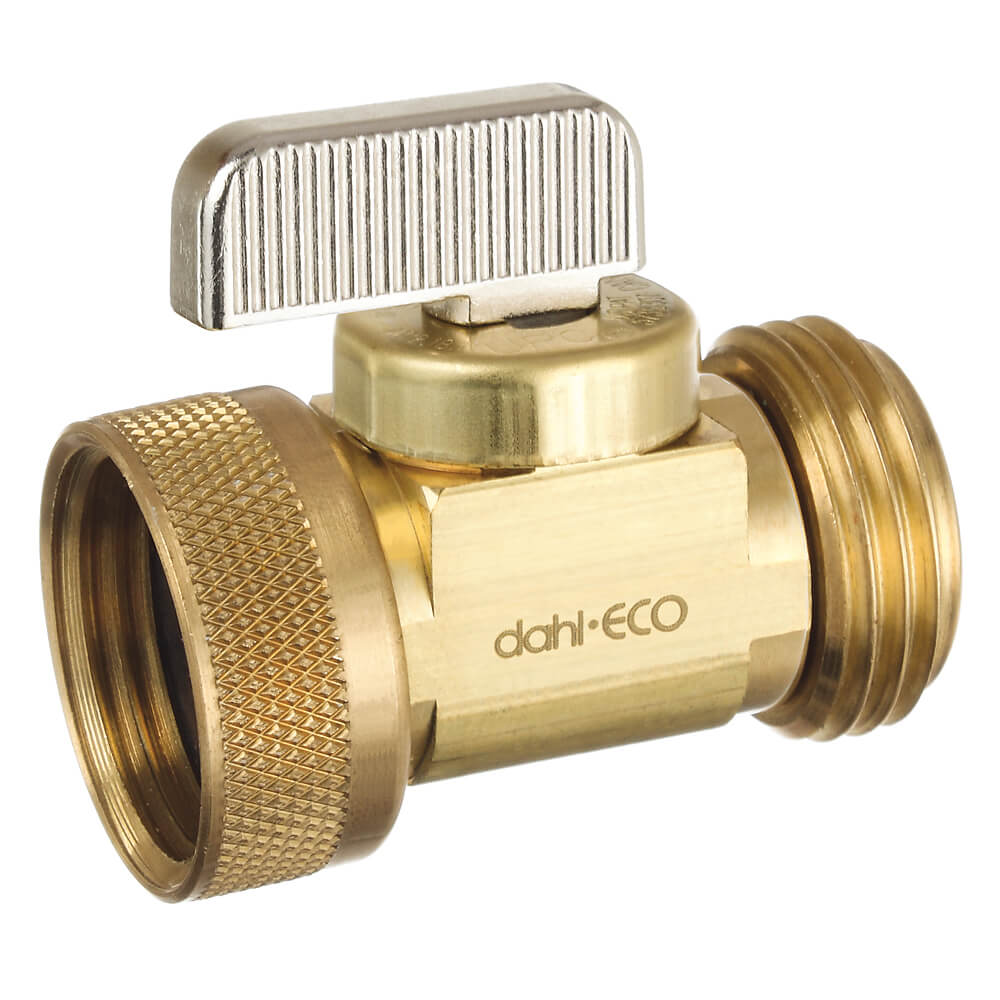

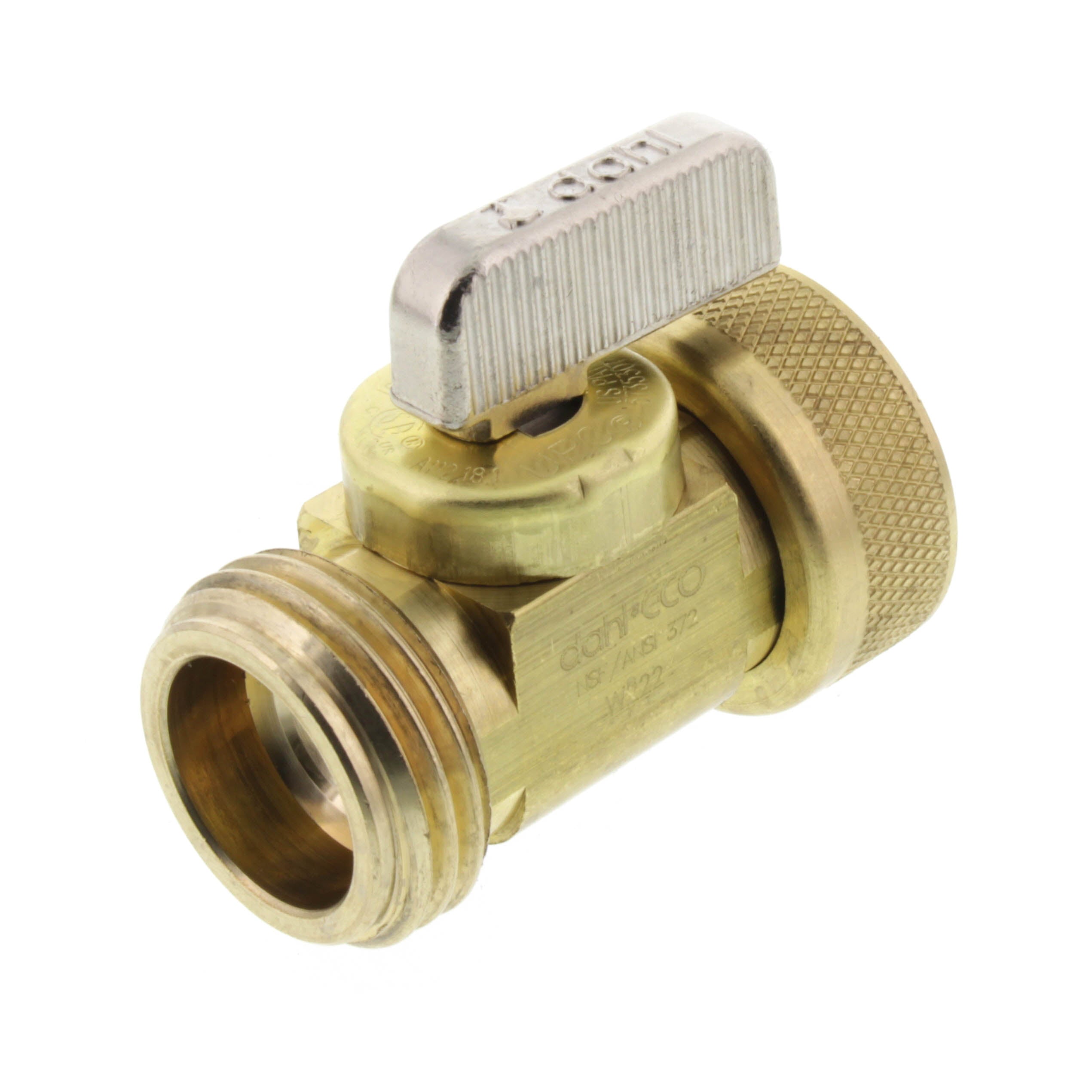

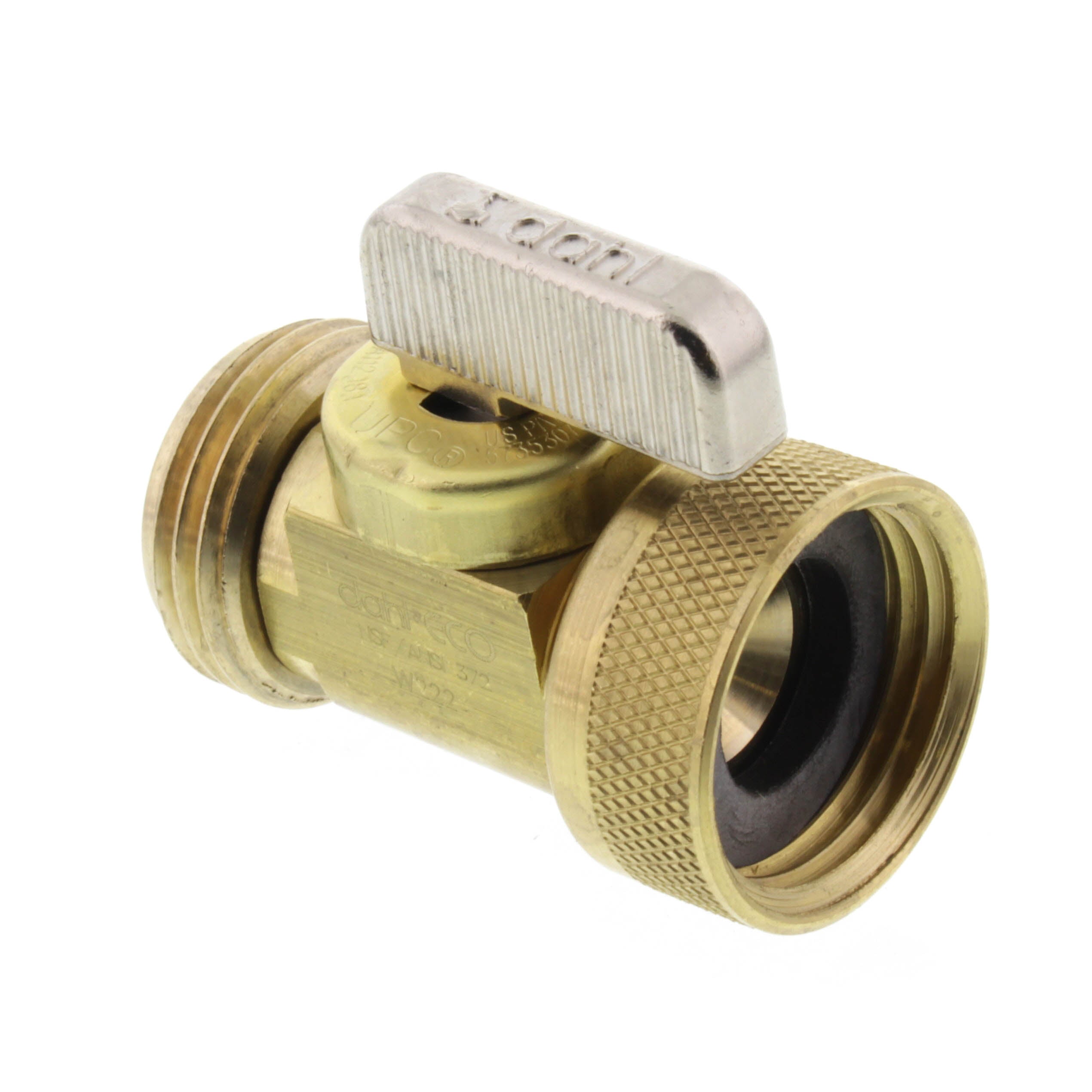

The DAHL 521-04-04F KTFHTXMHT STR STOP is a male hose x female swivel hose and boiler drain valve. It features a rough brass material and a straight valve type. This valve is suitable for both plumbing and heating applications and is tested before leaving the factory.

• Lead Free
• Brass Finish
• Rough Brass Material

Product Highlights

This lead-free brass valve with male hose inlet and female hose outlet is ideal for plumbing and heating applications.

Product Information

Standard Information

• Brand: DAHL
• Manufacturer Part Number: 521-04-04F
• Country of Origin: Canada

Technical Specifications

• Finish: Brass
• Material: Rough Brass
• Lead Free: Yes
• Inlet Type: Male Hose
• Valve Type: Boiler Drain Valve
• Outlet Type: Female Hose
• Connection Type: MNPT Hose x Female Hose
• Pattern: Straight
• Inlet Connection: Male Hose
• Operation: Plated Handle
• Outlet Connection: Fem. Swivel Hose
• Box / Case: 24 / 144
• Actuator Type: Handle
• Body Material: Brass
• Configuration: Straight
• Flow Coefficient (Cv): 3 Cv
• Handle Material: Zinc
• Inlet to Outlet Length: 2 in
• Lead-Free/Contains Lead: Lead-Free
• Nominal Size: 1/2 in
• Operator Type: Handle
• Pressure Rating: 250 psi
• Seal Material: PTFE
• Softgoods Material: EPDM/FKM/PTFE
• Temperature Rating: 250 deg F
• Top to Inlet Center: 1.2 in
• Trim Material: PTFE
• Actuation Type: Lever Handle
• Application: Plumbing, Heating
• End Connection: Male Hose x Female Swivel Hose
• End to End Distance: 2 Inch
• Inclusions/Features: Nickel Plated Zinc Handle, Nickel Plated Brass Spindle, Brass Handle Stop, Brass Spindle Bushing, EPDM O-Ring and Gasket, Brass Hose Coupling, PTFE Seal
• Type: Boiler, Straight
• ANSI: ANSI 372, ANSI 61-G
• Collection: Mini-Ball™
• End Connection 1: MGHT
• End Connection 2: FGHT
• End Connections: MGHT x FGHT
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 2 in
• Maximum Temperature: 250
• NSF: NSF 372, NSF 61-G
• NSF Certified: Yes
• UL Listed: No
• UPC: 773341903650
• Valve Body Material: Brass
• Valve Body Style: Straight
• Valve Size: 1/2 in
• Width: 1-1/2 in
