Dahl 511-PX3-31 1/2 inches x 3/8 inches PEX x Comp Straight Water Supply Stop Valve

Product Description

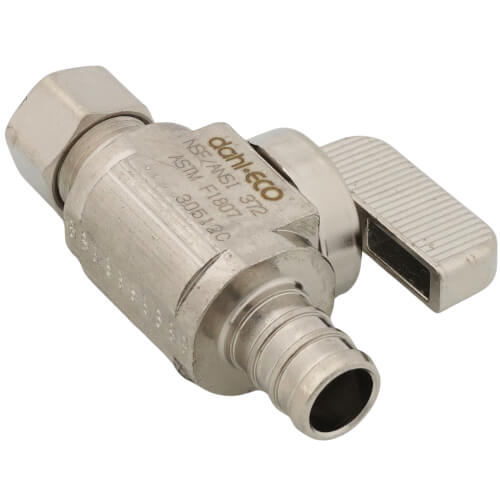

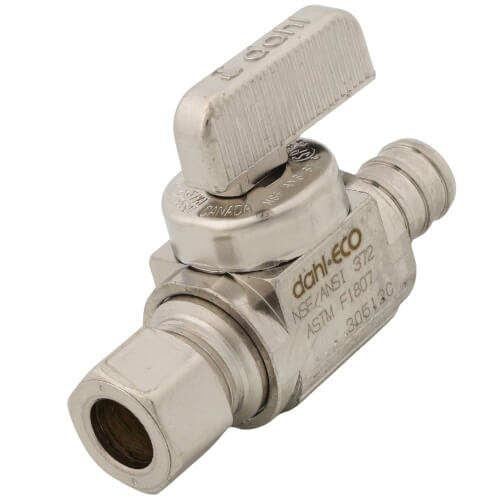

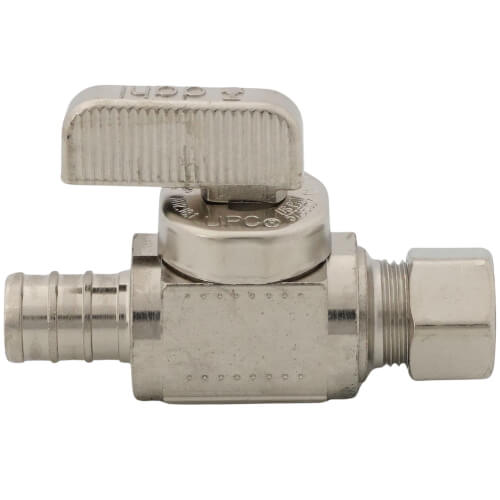

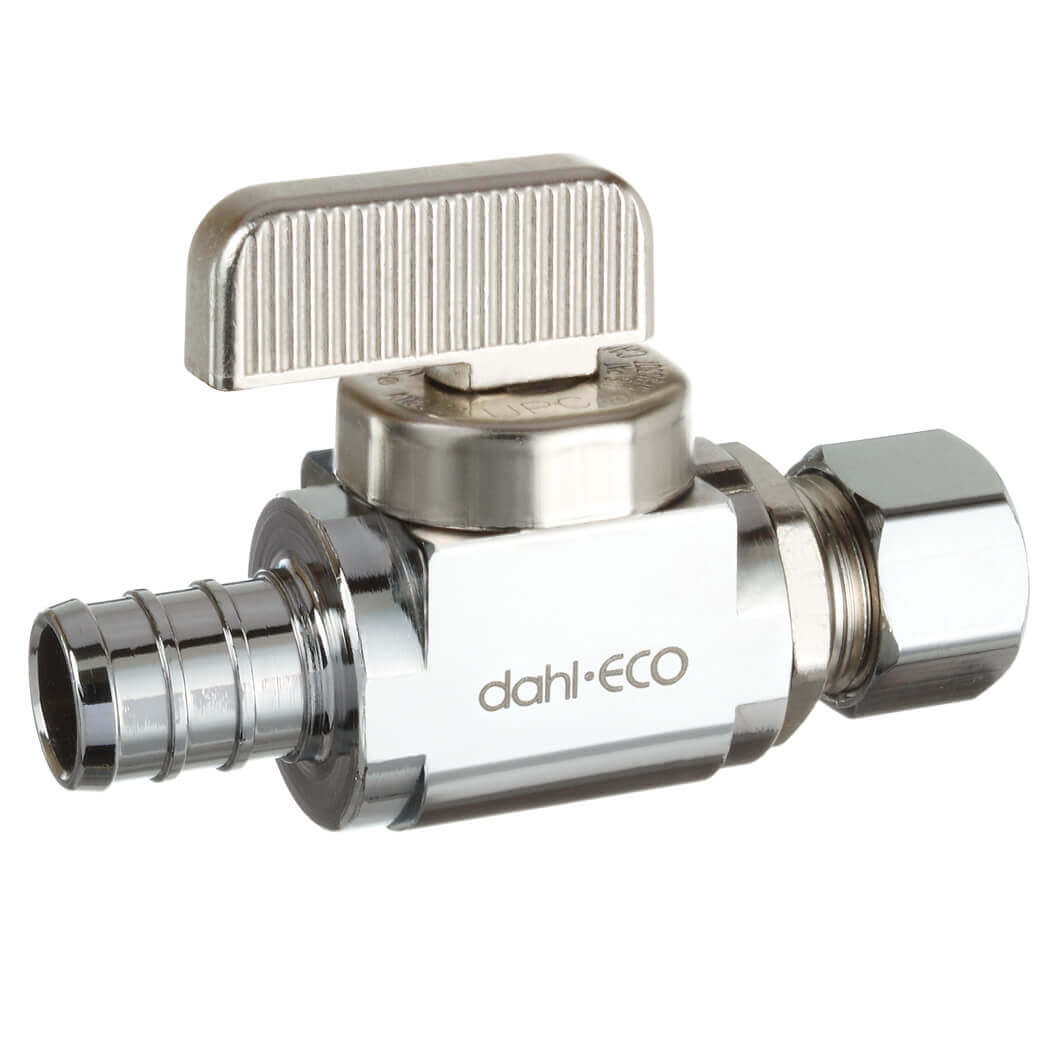

The DAHL 511-PX3-31 is a straight stop valve with a 1/2" PEX crimp x compression end connection. Featuring a 1/4 turn handle, this valve is constructed from brass and is suitable for plumbing and heating systems. It is designed to be lead-free and plated for durability.

• Features a 1/4 turn handle for easy on/off control.
• Constructed from lead-free brass.
• Suitable for plumbing and heating applications.

Product Highlights

This straight stop valve offers reliable performance with its lead-free brass construction and easy-to-use 1/4 turn handle.

Product Information

Standard Information

• Brand: DAHL
• Manufacturer Part Number: 511-PX3-31

Technical Specifications

• Material: Brass
• Lead Free: Yes
• Inlet Size: 1/2"
• Inlet Type: PEX Crimp
• Valve Type: Straight
• Outlet Size: 3/8"
• Outlet Type: OD Compression
• Fitting System Compatibility: Clamp, Crimp
• Actuation Type: 1/4 Turn Handle
• Applicable Standard: CSA (Canada and US), NSF/ANSI 61-G, UPC
• Application: Plumbing and Heating System
• Body Material: Brass
• End Connection: PEX Crimp x Compression
• Handle Material: Nickel Plated
• Inclusions/Features: EPDM O-Ring, Compression Nut
• Nominal Size: 1/2 Inch x 3/8 Inch
• Pressure Rating: 250 PSI
• Temperature Rating: 250 Deg F
• Type: Straight
• Pattern: Straight
• Inlet Connection: PEX Crimp
• Finish: Plated
• Operation: Plated Handle
• Outlet Connection: 3/8 OD Comp
