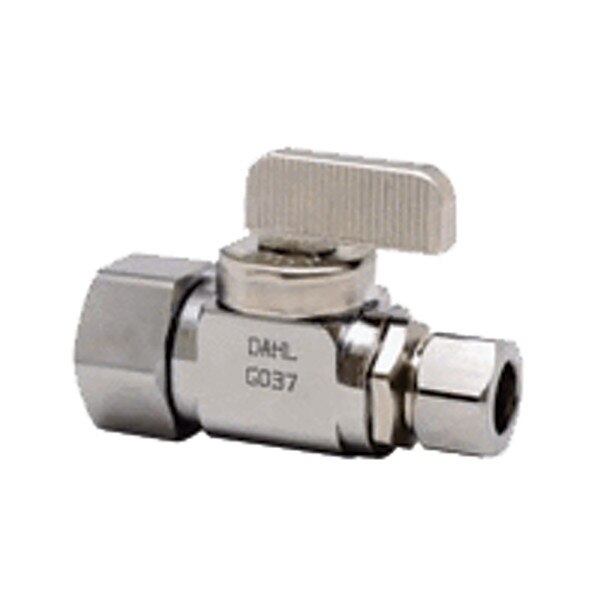

Dahl 511-32-31-BAG Mini-Ball Straight Supply Stop - 1/4 Turn, 1/2 inches x 3/8 inches Comp.

Product Description

The Dahl 511-32-31-BAG Mini-Ball Straight Supply Stop features a 1/4 turn mechanism and a 1/2" O.D. X 3/8" O.D. compression. Manufactured from carefully sourced brass, raw materials, and components from high-quality suppliers to ensure lasting performance and reliability. Every valve is pressure-tested before it leaves the plant.

• 1/4 Turn on or off
• 1/2" O.D. X 3/8" O.D. Compression
• Lead-Free Brass Material

Product Highlights

This Dahl mini ball valve is ideal for toilets, sinks, faucets, bidets, icemakers, dishwashers, and other end-of-line fixtures.

Product Information

Standard Information

• Brand: DAHL
• Manufacturer Part Number: 511-32-31-BAG
• Country of Origin: Canada

Technical Specifications

• Manufacture Item Number: 5113231BAG
• UPC: 773341909744
• Package Quantity: EACH
• Pattern: Straight
• Finish: Chrome Plated
• Material: Lead-Free Brass
• Operation: Plated Handle
• Inlet Pipe Type: Copper
• Inlet Size: 1/2 OD
• Inlet Connection: Compression
• Outlet Pipe Type: Copper
• Outlet Size: 3/8 OD
• Outlet Connection: Compression
• ANSI: ANSI 61 Annex G, ANSI 372
• CSA Certified: Yes
• Collection: Mini-Ball™
• Color Finish Category: Chromes
• Color Finish Name: Chrome Plated
• End Connection 1: OD Compression
• End Connection 2: OD Compression
• End Connections: OD Compression
• Handle Material: Zinc
• Handle Type: Loose Key
• Lead Law Compliance Level: Lead Free and Lead Leaching Compliant
• Lead Law Compliant: Yes
• Maximum Temperature: 250
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Number of Handles: Single Handle
• Pressure - Maximum: 250 psi
• Valve Body Material: Brass
• Valve Body Style: Straight
• Valve Operator: Lever Handle
• Valve Seat Material: PTFE
• Valve Size: 1/2 in x 3/8 in
• Valve Type: Straight Supply Stop Valve
• Brand: dahl
• Temperature Rating: 250 Deg F
• Pressure Rating: 250 psi
