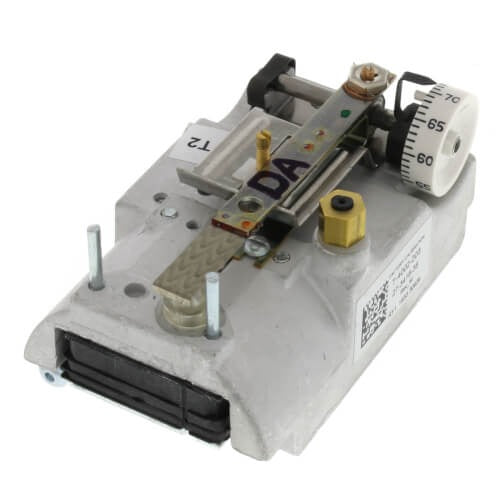

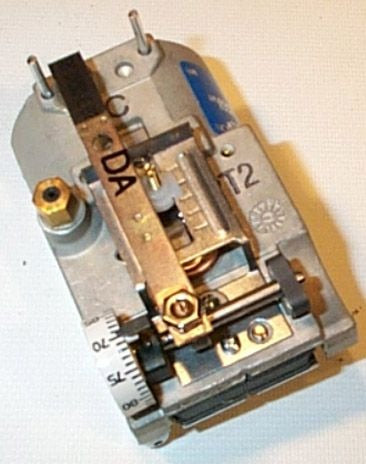

Johnson Controls T-4002-203 Pneumatic Thermostat Direct Acting Vertical Wall 55-85 Degrees Fahrenheit

Product Description

The Johnson Controls T-4002-203 is a high volume output, single temperature thermostat specifically designed for vertical mounting. Known for its direct acting and robust bi-metal sensor, this thermostat ensures precise temperature management in various industrial settings.

• Adjustable sensitivity, ranging from 0.75 to 4.0 psig per degree Fahrenheit
• Temperature range from 55 to 85 degrees Fahrenheit ensuring wide operational capability
• Highly durable and shock-resistant, suitable for industrial use

Product Highlights

This thermostat provides a direct response to temperature changes with minimal delay, thanks to its bi-metal sensing element. The pneumatic mechanism operates effectively within a control air pressure of 3 to 15 psi.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T-4002-203

Technical Specifications

• Action Type: Direct Acting
• Element Type: Bi-Metal
• Mounting Style: Vertical
• Max. Air Pressure: 25 psi
• Temperature Control Range: 55° to 85°F
• Air Connection: 5/32 inch Barb
