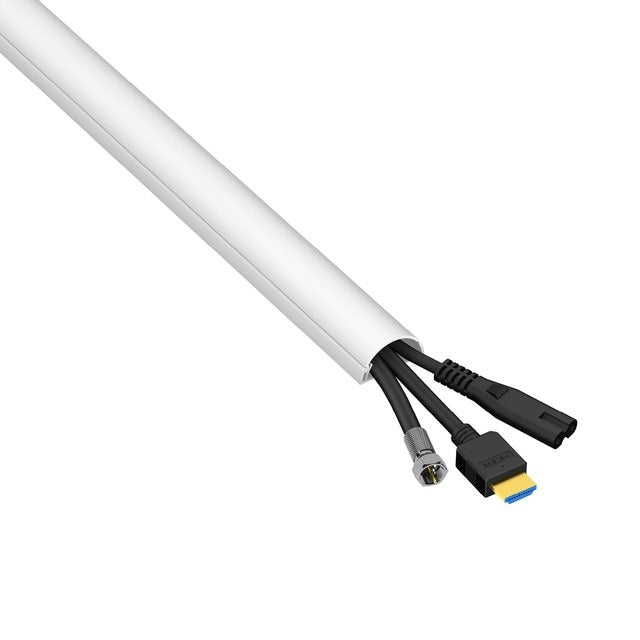

D-line d23015w Cable Raceway 1.18x0.59 in 6.5 Ft White

Product Description

The D-LINE d23015w is a half-round surface-mount cable raceway designed to route and conceal flexible cables along walls without cutting into drywall or fishing wire through cavities. The channel measures 1.18 inches wide by 0.59 inches tall and runs 6.5 feet per length, providing enough capacity to manage up to three flexible cables based on cables with approximately 0.33-inch diameters. The one-piece construction features a patented latching hinge with a click-lock lid, allowing cables to be added or removed without dismantling the run. Electricians and low-voltage technicians use this raceway for clean, code-conscious surface wiring installations in occupied spaces.

This raceway is suited for residential and light commercial applications where concealing data cables, phone lines, or low-voltage wiring along baseboards, walls, or door frames is required. The white finish is intended to blend with standard interior trim and painted surfaces. Each length can be installed using the factory-applied self-adhesive backing for a fast peel-and-stick mount, or drilled and screw-fixed when a more permanent attachment is needed. Compatible raceway accessories including corner pieces, end caps, and couplers are available separately to navigate direction changes and produce a finished appearance at transitions.

Key Features

• Half-round profile at 1.18 inches wide by 0.59 inches tall fits flush against flat wall surfaces
• Holds up to 3 flexible cables based on 0.33-inch diameter cables
• One-piece patented design with latching hinge and click-lock lid for easy cable access
• Pre-applied self-adhesive backing for peel-and-stick installation; can also be drilled and screw-fixed
• White finish blends with standard interior decor without painting or patching
• Compatible with D-LINE raceway accessories for corners, bends, and end treatments

Compatibility

Designed for use with D-LINE raceway accessory fittings sized for the d23015w channel profile. Suitable for routing flexible low-voltage and data cables in residential and light commercial surface-wiring installations.

Installation Notes

Installation is performed by electricians or low-voltage technicians following applicable NEC requirements for surface raceway wiring. Before routing any cables, de-energize circuits and verify the wiring is de-energized with a meter prior to handling. For permanent installations, drill and screw-fix each length in addition to the adhesive backing to prevent pull-away over time. Do not exceed the stated cable fill capacity, as overfilling can prevent the lid from seating fully and may create a pinch point on cable jackets.

Technical Specifications

• Width: 1.18 inches
• Height: 0.59 inches
• Length per Piece: 6.5 feet
• Cable Capacity: Up to 3 flexible cables (based on 0.33-inch diameter cables)
• Color: White
• Mounting Method: Self-adhesive backing; drill and screw-fix compatible
• Profile: Half-round, one-piece with click-lock lid

Standard Information

• Brand: D-LINE
• Manufacturer Part Number: d23015w
